Introduction

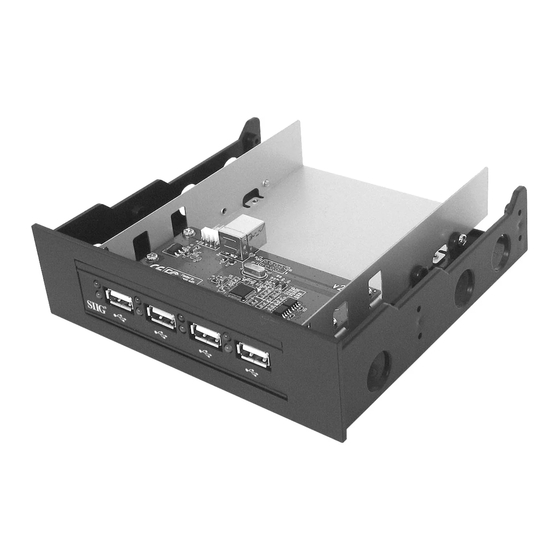

The Hi-Speed USB 4-Port Bay Hub is designed to support
USB 2.0 equipped PC computers. This USB 2.0 hub
expands USB connectivity to your computer.
Features and Benefits
•
Compliant with USB Specifications, Revision 2.0
•
Drive bay design adds ports to the front of your
computer for convenient device connection
•
Fits into either 3.5" or 5.25" (with included
5.25"mounting rack) drive bay
•
Provides 4 downstream ports for USB device
connections
•
Supports high-speed (480Mbps), full-speed
(12Mbps), and low-speed (1.5Mbps) data transfer
modes
•
Supports simultaneous operation of multiple
high-speed USB 2.0 and USB 1.1 devices
•
Hot-swapping feature allows you to attach/detach
USB devices without powering your computer off
System Requirements
•
PC computer with one available internal USB 2.0
port
•
One available 3.5" or 5.25" drive bay
•
Windows
(32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008
(32-/64-bit) / Server 2008 R2 / 2000
04-0252E
Hi-Speed USB 4-Port Bay Hub
Quick Installation Guide
8 (32-/64-bit) / 7 (32-/64-bit) / Vista
®
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG Hi-Speed USB 4-Port Bay Hub
Summary of Contents for SIIG Hi-Speed USB 4-Port Bay Hub
- Page 1 Hi-Speed USB 4-Port Bay Hub Quick Installation Guide Introduction The Hi-Speed USB 4-Port Bay Hub is designed to support USB 2.0 equipped PC computers. This USB 2.0 hub expands USB connectivity to your computer. Features and Benefits • Compliant with USB Specifications, Revision 2.0 •...
-
Page 2: Package Contents
Package Contents • Hi-Speed USB 4-Port Bay Hub • "Y" split power cable • USB 2.0 cable • 5.25" mounting rack • Bag assorted holding screws • Quick installation guide Hub Layout Power Upstream port connector (Root port) Device LED Port LED 5.25"... - Page 3 Figure 2. USB Cable Connectors Installing the Hi-Speed USB 4-Port Bay Hub Important: In order for the Hi-Speed USB 4-Port Bay Hub to work properly, the driver of your existing USB 2.0 host adapter has to have support for USB 2.0 hubs.
- Page 4 Figure 3. Connecting the "Y" split power cable Connect the Type B connector of the supplied USB 2.0 cable into the Upstream port (Root port) of the Hi-Speed USB 4-Port Bay Hub. USB 2.0 cable connection Figure 4. Connecting the USB 2.0 Cable...
- Page 5 Carefully thread the two cables through the drive bay opening then push the hub assembly into the drive bay. Align the hub's screw holes with the appropriate holes in the drive bay, then carefully attach the hub to the case using the included mounting screws.
- Page 6 11. When Windows boots up, the Hi-Speed USB 4-Port Bay Hub automatically gets detected and installed. The hub is now ready for device connection. 12. Connect the Type A connector of your USB device(s) into any of the downstream ports on the Hi-Speed USB 4-Port Bay Hub.
-
Page 7: Technical Support And Warranty
(5) years from the date of purchase of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. -
Page 8: Lifetime Warranty
Fremont, CA 94538-3152, USA Phone: 510-657-8688 Hi-Speed USB 4-Port Bay Hub is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
