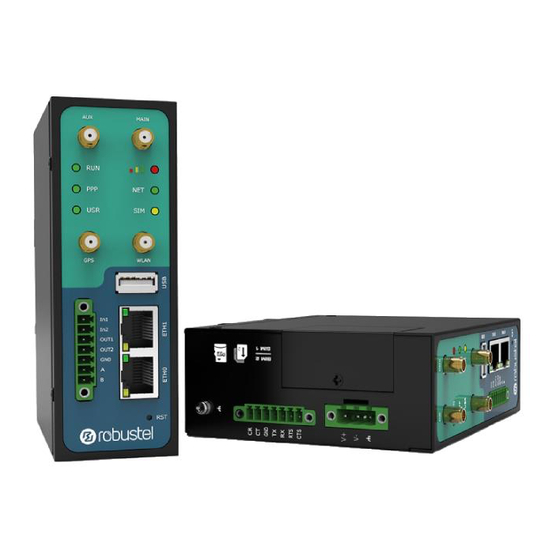

Robustel R3000 Quad Installation And Configuration Quick Manual

Industrial cellular vpn router with 4 ethernet ports
Hide thumbs Also See for R3000 Quad:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

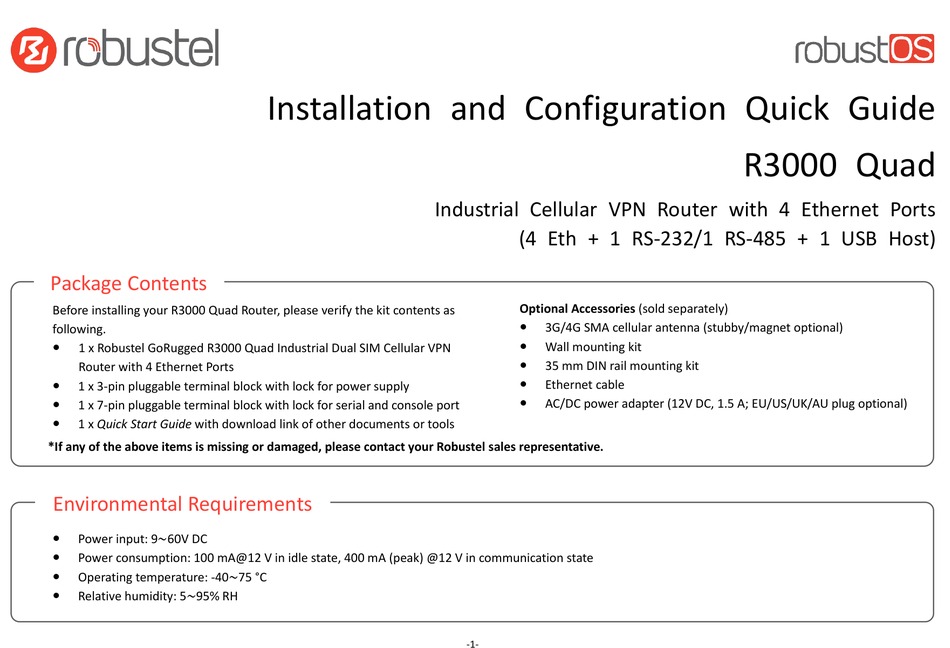

Package Contents

Before installing your R3000 Quad Router, please verify the kit contents as
following.
1 x Robustel GoRugged R3000 Quad Industrial Dual SIM Cellular VPN
Router with 4 Ethernet Ports
1 x 3-pin pluggable terminal block with lock for power supply
1 x 7-pin pluggable terminal block with lock for serial and console port
1 x Quick Start Guide with download link of other documents or tools
*If any of the above items is missing or damaged, please contact your Robustel sales representative.

Environmental Requirements

Power input: 9~60V DC
Power consumption: 100 mA@12 V in idle state, 400 mA (peak) @12 V in communication state
Operating temperature: -40~75 °C
Relative humidity: 5~95% RH
Installation and Configuration Quick Guide
Industrial Cellular VPN Router with 4 Ethernet Ports
(4 Eth + 1 RS-232/1 RS-485 + 1 USB Host)
Optional Accessories (sold separately)
3G/4G SMA cellular antenna (stubby/magnet optional)
Wall mounting kit
35 mm DIN rail mounting kit
Ethernet cable
AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)
-1-
R3000 Quad

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R3000 Quad and is the answer not in the manual?

Questions and answers

Related Manuals for Robustel R3000 Quad

Summary of Contents for Robustel R3000 Quad

  • Page 1: Package Contents

    1 x 7-pin pluggable terminal block with lock for serial and console port  1 x Quick Start Guide with download link of other documents or tools *If any of the above items is missing or damaged, please contact your Robustel sales representative. Environmental Requirements ...

  • Page 2: Hardware Introduction

    Hardware Introduction 1. Overview 3. Pinouts Function Polarity Positive Negative Debug RS-232 RS-485 Direction 2. Dimensions Router  Device Router  Device Router  Device Data+(A) Router  Device Data+(B) Router  Device Router  Device...

  • Page 3: Led Indicators

    4. LED Indicators Name Color Status Description Name Color Status Description Green On, solid Connection to 4G network is Green On, fast blinking Router is powered on established (250 mSec blink time) (System is initializing) Yellow On, solid Connection to 3G network is On, blinking Router starts operating established...

  • Page 4: Reset Button

    7. Ethernet Port R3000 Quad Router has four Ethernet port with two LED indicators. The yellow one is link indicator and the green one is speed indicator. For details about status, see the table below.

  • Page 5: Hardware Installation

    Hardware Installation 1. Insert or Remove SIM Card/Micro SD Card Insert SIM card/Micro SD card Do not forget to twist the cover tightly to avoid being stolen.  Make sure router is powered off. Do not touch the metal of the card surface in case information in the To remove cover, loosen the screws card will lost or be destroyed.

  • Page 6: Mount The Router

    Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m. 5. Power Supply R3000 Quad router supports reverse polarity protection, but always refers  DIN rail mounting (measured in mm) to the figure above to connect the power adapter correctly. There are two Use 3 pcs of M3*6 flat head Phillips screws to fix theDIN rail to the cables associated with the power adapter.
  • Page 7 PC Configuration There are two methods to get IP address for the PC, one is to obtain an IP address automatically from “Local Area Connection”, and another is to configure a static IP address manually within the same subnet of the router. Please refer to the steps below. Here take Windows 7 as example, and the configuration for windows system is similar.

  • Page 8: Router Configuration

    Router Configuration 1. Log in the Router After logging in, the home page of the R3000 Quad Router’s web interface is displayed, for example. To log in to the management page and view the configuration status of your router, please follow the steps below.
  • Page 9 Click on the right-most of WWAN1 to enter the configuration window. When finished, click Submit > Save & Apply for the configuration to take effect. 3. Check the Cellular Connection Status The window is displayed as below when enabling the “Automatic APN Selection”...
  • Page 10 Configure Lan1 Click Interface > Ethernet > Ports, click eth1’s edit button, choose There are four Ethernet ports on R3000 Quad Router, including “lan1” as the assigned port, and click “Submit”. ETH0~ETH3. The ETH0 on the router can be configured as either a Note: By default, there is a LAN port (lan0) in the list.
  • Page 11  Choose lan1 as the interface, and configure its IPv4 address and Configure WAN Netmask. Click Interface > Ethernet > Ports, click the edit button of eth0, choose “wan” as the port assignment, and click “Submit”; When finished, click Submit > Save & Apply for the configuration to take effect.
  • Page 12 The window is displayed as below when enabling the “Ping Detection” option. When finished, click Submit > Save & Apply for the configuration to take effect. Guangzhou Robustel Technologies Co., Ltd. Add: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road, Guangzhou, China 510660 Tel:...
