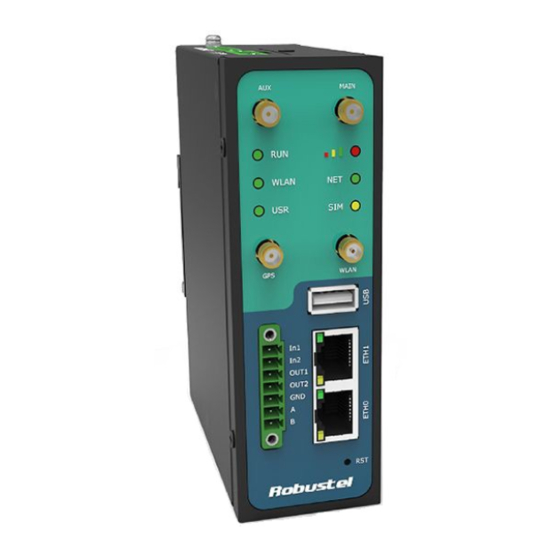

Robustel GoRugged R3000
Dual SIM Industrial Cellular VPN Router
For GPRS/EDGE/UMTS/HSPA+/LTE Networks

User Guide

Document Name:
User Guide
Firmware:
V.2.0.0
Date:
2017-02-04
Status:
Confidential
Doc ID:
RT_UG_R3000R_v.3.0.3
www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Robustel GoRugged R3000

Summary of Contents for Robustel GoRugged R3000

  • Page 1: User Guide

    Robustel GoRugged R3000 Dual SIM Industrial Cellular VPN Router For GPRS/EDGE/UMTS/HSPA+/LTE Networks User Guide Document Name: User Guide Firmware: V.2.0.0 Date: 2017-02-04 Status: Confidential Doc ID: RT_UG_R3000R_v.3.0.3 www.robustel.com...
  • Page 2 The contents of this document are subject to change without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the router, or for failure of the router to transmit or receive such data.
  • Page 4 Robustel GoRugged R3000 User Guide Protecting your router To ensure error-free usage, please install and operate your router with care. Do remember the following: Do not expose the router to extreme conditions such as high humidity / rain, high temperature, direct sunlight, ...
  • Page 5 Robustel GoRugged R3000 User Guide Regulatory and Type Approval Information Table 1: Directives Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 2011/65/EC on the restriction of the use of certain hazardous substances in electrical and...
  • Page 6 Robustel GoRugged R3000 User Guide Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Doc Version Change Description 2013-01-24 1.00.00 V1.0.0 Initial Release 2014-01-17 1.01.00 V2.0.0 Second Release Update WLAN, GPS antenna information for section 2.8...
  • Page 7 Robustel GoRugged R3000 User Guide Changed CD information in Chapter 1.2 RT_UG_R3000_v.3.0.3 04.02.2017 6 / 124 Confidential...

  • Page 8: Table Of Contents

    Robustel GoRugged R3000 User Guide Contents Chapter 1 Product Concept ............................10 Overview ..............................10 Packing List ............................... 11 Specifications ............................13 Selection and Ordering Data ........................16 Chapter 2 Installation ..............................17 LED Indicators ............................17 PIN Assignment ............................18 USB Interface ............................
  • Page 9 Robustel GoRugged R3000 User Guide 3.12 Interface -> Serial Port ..........................54 3.13 Network->Route ............................56 3.14 Network->Firewall ............................ 57 Filtering ................................57 Port Mapping ..............................59 DMZ ................................. 60 3.15 Network -> QoS ............................61 3.16 VPN->IPSec ............................... 63 3.17...
  • Page 10 Robustel GoRugged R3000 User Guide Commands Reference ..........................121 Glossary ..................................122 RT_UG_R3000_v.3.0.3 04.02.2017 9 / 124 Confidential...

  • Page 11: Chapter 1 Product Concept

    Robustel GoRugged R3000 User Guide Chapter 1 Product Concept 1.1 Overview Robustel GoRugged R3000 is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.  Dual SIM redundancy for continuous cellular connections; supports 2G/3G/4G ...

  • Page 12: Packing List

    1.2 Packing List Check your package to make sure it contains the following items:  Robustel GoRugged R3000 router x 1 (model optional) More details about the antenna interface please refer to 1.3 Specifications section. Only with GPS Only with Wi-Fi...
  • Page 13 Robustel GoRugged R3000 User Guide Optional accessories (can be purchased separately):  SMA antenna x 1 (Stubby antenna or Magnet antenna optional) Stubby antenna Magnet antenna  Ethernet cable x 1  Wall mounting kit x 1  35 mm DIN rail mounting kit x 1 ...

  • Page 14: Specifications

    Robustel GoRugged R3000 User Guide 1.3 Specifications Cellular Interface Standards: GSM/GPRS/EDGE/UMTS/HSPA/EVDO/FDD LTE  GPRS/EDGE: 850/900/1800/1900 MHz  HSPA+: 850/900/1900/2100 MHz, DL/UL 21/5.76 Mbps, fallback to 2G  FDD LTE: 800/900/1800/2100/2600 MHz, DL/UL 100/50 Mbps, fallback to 3G/2G  EVDO: 450 or 800/1900 MHz, Rev A/B ...
  • Page 15 Robustel GoRugged R3000 User Guide Digital filtering time interval: Software selectable  Interface: 3.5 mm terminal block with lock  Digital Output Type: 2 x DO, Sink  Isolation: 3K VDC or 2K Vrms  Absolute maximum VDC: 30 V ...
  • Page 16 Robustel GoRugged R3000 User Guide Built-in RTC, Watchdog, Timer  Expansion: 1 x USB 2.0 host up to 480 Mbps  Storage: 1 x Micro SD  Software Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, DMZ, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPs, DNS, ...

  • Page 17: Selection And Ordering Data

    Robustel GoRugged R3000 User Guide IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 4, IEC 61000-4-8 Level 4 Selection and Ordering Data Model No. Description Operating Environment R3000-3P HSPA+ Router, HSPA+ 850/900/1900/2100 MHz -40 to 85°C/5 to 95% RH...

  • Page 18: Chapter 2 Installation

    Robustel GoRugged R3000 User Guide Chapter 2 Installation 2.1 LED Indicators Name Color Status Function Router is starting (the duration will no longer than 30 sec) Green On, 0.5 sec blink Router is ready Router is power off SIM card is normal and dials successfully...

  • Page 19: Pin Assignment

    Robustel GoRugged R3000 User Guide The SIM/NET/RSSI will blink to indicate the wrong status when the wireless module cannot work normally. When the network is disconnected, those three signal LEDs are designed as a binary combination code to indicate a series of error report.

  • Page 20: Usb Interface

    Robustel GoRugged R3000 User Guide 2.3 USB Interface USB interface is used for batch firmware upgrade, cannot used to send or receive data from slave devices which with USB interface. Users can insert a USB storage device, such as U disk or hard disk, into the router’s USB interface, if there is configuration file or firmware of R3000...

  • Page 21: Ethernet Ports

    Robustel GoRugged R3000 User Guide 2.5 Ethernet Ports Each Ethernet port has two LED indicators (please check the following picture). The yellow one is Link indicator and the green one is Speed indicator. There are three status of each indicator. For details please refer to the form below.

  • Page 22: Mount The Router

    Robustel GoRugged R3000 User Guide 2.6 Mount the Router R3000 router supports for horizontal surface placement, wall mounting and DIN rail mounting. Two methods for mounting the router  Wall mounting Wall mounting kit size (unit: mm) Use 3 pcs of M3*4 countersunk Phillips screws to fix the wall mounting kit to the router, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall.
  • Page 23 Robustel GoRugged R3000 User Guide DIN rail mounting DIN rail size (unit: mm) Use 3 pcs of M3*6 countersunk phillips screws to fix the DIN rail to the router, and then hang the DIN rail on the bracket. It is necessary to choose a standard bracket.

  • Page 24: Insert / Remove The Sim Card Or Micro Sd Card

    Robustel GoRugged R3000 User Guide 2.7 Insert / Remove the SIM Card or Micro SD Card Insert SIM card or Micro SD card  Make sure router is powered off. To remove cover, loosen the screws associated with the cover by using a screwdriver and then find the SIM card slot and SD card slot.

  • Page 25: Connect The External Antenna

    Robustel GoRugged R3000 User Guide 2.8 Connect the External Antenna Connect router with an external antenna connector. Make sure the antenna is within correct frequency range and is screwed tightly. SMA Male antenna connector for Cellular SMA Male antenna connector for GPS RP-SMA Male antenna connector for WLAN 2.9 Ground the Router...

  • Page 26: Power Supply

    Robustel GoRugged R3000 User Guide 2.10 Power Supply R3000 router supports reverse polarity protection, but always refers to the figure above to connect the power adapter correctly. There are two cables associated with the power adapter. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way.

  • Page 27: Chapter 3 Configuration Settings Over Web Browser

    Robustel GoRugged R3000 User Guide Chapter 3 Configuration Settings over Web Browser The router can be configured through your web browser that include IE 8.0 or above, Chrome and Firefox. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc.
  • Page 28 Robustel GoRugged R3000 User Guide 2. In the Local Area Connection Status window, click Properties. 3. Select Internet Protocol (TCP/IP) and click Properties. RT_UG_R3000_v.3.0.3 04.02.2017 27 / 124 Confidential...
  • Page 29 Robustel GoRugged R3000 User Guide 4. Configure the IP address of PC. Automatically obtain IP address from DHCP server Manually configured static IP address within the same subnet of R3000 router 5. Click OK to finish the configuration. RT_UG_R3000_v.3.0.3 04.02.2017...

  • Page 30: Factory Default Settings

    Robustel GoRugged R3000 User Guide 3.2 Factory Default Settings Before configuring your router, you need to know the following default settings. Item Description Username admin Password admin eth0 192.168.0.1/255.255.255.0, lan0 eth1 192.168.0.1/255.255.255.0, lan0 DHCP Server Enabled 3.3 Login Router On the PC, open a web browser such as Internet Explorer.

  • Page 31: Control Panel

    Robustel GoRugged R3000 User Guide 3.4 Control Panel After logging in the R3000, the home page of the R3000 router’s web interface is displayed, just like the screenshot below. This section allows users to save configuration, reboot router and logout. When you are first time to login R3000, there will be a pop-up tab “...

  • Page 32: Status

    Robustel GoRugged R3000 User Guide Click to reboot the router. Reboot When the Reboot button is in yellow, it means that some completed configurations will take effect only by reboot. Click to exit safely, then it will switch to login page. Shut down web...

  • Page 33: Cellular Information

    Robustel GoRugged R3000 User Guide System Information Item Description Device Model Show the model name of this device. System Uptime Show how long the router has been working since power on. System Time Show the current system time. Firmware Version Show the current firmware version.

  • Page 34: Internet Status

    Robustel GoRugged R3000 User Guide Cellular Information Item Description And show the total SIM cards in the router. Show the status of Registration. There are 6 different status: 1. Not registered, search stopped 2. Registered to home network Network Registration 3.

  • Page 35: Interface->Link Manager

    Robustel GoRugged R3000 User Guide Router Information Item Description IP Address Show the current IP Address and the Netmask. MAC Address Show the current MAC Address. 3.6 Interface->Link Manager Link Manager User can manage the link connection in this section. R3000 support Cellular, Ethernet and Wi-Fi link connection.

  • Page 36: Wwan1/Wwan2

    Robustel GoRugged R3000 User Guide and WLAN. It is recommended to enable Ping detection to keep router always online. The Ping detection increases the reliability and also cost data traffic. Click to enter the link configuration window. WWAN1/WWAN2 When enable “Automatic APN Selection”, the window will display just like the following screenshot.
  • Page 37 Robustel GoRugged R3000 User Guide When disable “Automatic APN Selection”, the window will display just like the following screenshot. WWAN Setting Item Description Default Automatic APN Selection ON: R3000 will recognize the access point name automatically. Dialup Number Dialup number for cellular dial-up connection, provided by local ISP.
  • Page 38 Robustel GoRugged R3000 User Guide Ping Detection Settings/Advanced Setting Item Description Default Enable To enable “ping detection”. It was a keepalive policy of R3000 router. Router will ping this primary address/domain name to check that if the Primary Server 8.8.8.8 current connectivity is active.

  • Page 39: Wan

    Robustel GoRugged R3000 User Guide When choose the WAN Connection Type as DHCP, R3000 will obtain IP automatically from DHCP server. When choose the WAN Connection Type as Static. Static Item Description Default Set the IP address with Netmask which can access the internet.
  • Page 40 Robustel GoRugged R3000 User Guide When choose the WAN Connection Type as PPPoE. PPPoE Item Description Default Username Enter the username which was provided by your Internet Service Provider. Null Password Enter the password which was provided by your Internet Service Provider.

  • Page 41: Status

    Robustel GoRugged R3000 User Guide Ping Detection Setting/Advance Setting Item Description Default Router will ping this secondary address/domain name to check that if the Secondary Server Null current connectivity is active. Interval Set the ping interval. Retry Interval Set the ping retry interval.
  • Page 42 Robustel GoRugged R3000 User Guide Click button to clear SIM1 or SIM2 monthly data traffic usage statistics. Data statistics will display only if enable the Data Allowance function in Link Manager->Link Setting->WWAN Setting. RT_UG_R3000_v.3.0.3 04.02.2017 41 / 124 Confidential...

  • Page 43: Interface->Lan

    Robustel GoRugged R3000 User Guide 3.7 Interface->LAN There are two LAN interfaces in R3000 router which includes lan0 and lan1. Both of R3000’s Ethernet are default to lan0, and the default IP of lan0 is 192.168.0.1. This section allows user to set the related parameters of LAN interfaces.
  • Page 44 Robustel GoRugged R3000 User Guide When select DHCP Mode as Server, the window will display as the following screenshot. DHCP Server Item Description Default Enable Click the switch to show “ON” and to enable DHCP function. Server: Lease IP address to DHCP clients which connect to LAN.

  • Page 45: Multiple Ip

    Robustel GoRugged R3000 User Guide DHCP Server Item Description Default You can enter some other options of DHCP server in this field. Expert Options Null format: config-desc;config-desc, e.g. log-dhcp;quiet-dhcp Debug Enable Enable this function; it will output the DHCP information to syslog.

  • Page 46: Vlan Trunk

    Robustel GoRugged R3000 User Guide Multiple IP Item Description Default Select lan0 or lan1. When eth0 used As WAN, lan1 is unavailable. Interface lan0 And lan1 available only if it was selected by eth0 or eth1 in Ethernet->Port Setting section.

  • Page 47: Status

    Robustel GoRugged R3000 User Guide Status This section shows the LAN connection status. Click the row of status, the details status information will be display under the row. Please refer to the screenshot below. RT_UG_R3000_v.3.0.3 04.02.2017 46 / 124 Confidential...

  • Page 48: Interface->Ethernet

    Robustel GoRugged R3000 User Guide 3.8 Interface->Ethernet This section allow user to set the parameter of the Ethernet port. One port should be assigned to lan0 a least. Click button, configure the port setting. Ethernet Item Description Default Index The index of Ethernet port. Read only.

  • Page 49: Interface->Cellular

    Robustel GoRugged R3000 User Guide 3.9 Interface->Cellular This section allows users to set the Cellular WAN and the related parameters. When it is the first time to insert single SIM card, SIM card 1 and SIM card 2 slots are available.
  • Page 50 Robustel GoRugged R3000 User Guide Cellular Item Description Default Index Show the index of the SIM. SIM Card Set the current SIM card. SIM1 Link Name Set the current Link Name. WWAN1 Phone Number Define the phone number of the SIM card.

  • Page 51: Interface->Usb

    Robustel GoRugged R3000 User Guide Status Item Description Modem Status Show the status of the radio module. Current SIM Show the SIM card which the router works with currently: SIM1 or SIM2. Total SIMs Show the number of SIM cards that is installed in the router.

  • Page 52: Interface -> Di/Do

    Robustel GoRugged R3000 User Guide 3.11 Interface -> DI/DO This section allows users to set the DI/DO parameters. The DI list shows the status of DI. Click to enter the DI configuration window. Item Description Default Enable Click to Enable DI.
  • Page 53 Robustel GoRugged R3000 User Guide Item Description Default interface open from GND or input a high level electrical (logic 1), on the contrary DI alarm status will be trigged to OFF when DI interface connect to GND or input a low level electrical (logic 0).
  • Page 54 Robustel GoRugged R3000 User Guide Item Description Default Enable Click to enable DO. Digital Output initiates when there is an alarm. Selected from “High”, “Low”, “Pulse”. High: DO interface output a high electrical level. Alarm On Action High Low: DO interface output a low electrical level.

  • Page 55: Interface -> Serial Port

    Robustel GoRugged R3000 User Guide Status User can check the status of DO and DI interface. It also can clear the counter alarm of DI in here. 3.12 Interface -> Serial Port This section allows users to set the serial (RS232/RS485) parameters.
  • Page 56 Robustel GoRugged R3000 User Guide Serial setting@COM1 Item Description Default Port Show the current serial’s name. In default, COM1 is RS232 and COM2 is RS485. Click to enable this serial port. When the status is OFF, the serial port is not Enable available.

  • Page 57: Network->Route

    UDP: Router works as UDP client. Robustlink: Router will automatically upload the serial data to Robustlink platform under the Robustlink protocol. Robustlink is a management platform from Robustel. This function only available when Router is connects to Robustlink. Server Enter the address of server which will receive the data sent from R3000’s serial port.

  • Page 58: Network->Firewall

    Robustel GoRugged R3000 User Guide Static Route Item Description Default Netmask Define the Netmask of the destination. Null Gateway Define the gateway of the destination. Null Interface Select from “LAN”, “WAN”, “TUN” Status User can check the status of route in this page.
  • Page 59 Robustel GoRugged R3000 User Guide General Setting & Access Control Item Description Default Enable Filtering Enable filtering rules. Select from “Accept” and “Drop”. Cannot be changed when filtering rules table is not empty. Accept: Router will accept all the connecting requests except the hosts...

  • Page 60: Port Mapping

    Robustel GoRugged R3000 User Guide Filtering Rules Item Description Default Index Show the index of the filtering rule or the MAC binding rule. Description Enter some simple words about this filtering rule. It can be null. Null Defines if access is allowed from one or a range of IP addresses which are...

  • Page 61: Dmz

    Robustel GoRugged R3000 User Guide Port Mapping Item Description Default Local IP Enter router’s LAN IP which will forward to the internet port of router. Null Local Port Enter the port of router’s LAN IP. Null Protocol Select from “TCP”, “UDP” and “TCP-UDP”.

  • Page 62: Network -> Qos

    Robustel GoRugged R3000 User Guide 3.15 Network -> QoS This section allows users to set the QoS parameters. Please remember to set QoS upload and download bandwidth in the Interface->Link Manager WWAN/WAN before Configure Qos parameters. Select the priority, click to enter the priority definition configuration window.
  • Page 63 Robustel GoRugged R3000 User Guide Item Description Default Bandwidth other priorities when this function is enabled, and will be limited to the specified bandwidth when this function is disabled. Limited specified bandwidth algorithm: priority defined percent x uoad/download bandwidth set in Interface->Link Manager WWAN/WAN.

  • Page 64: Vpn->Ipsec

    Robustel GoRugged R3000 User Guide 3.16 VPN->IPSec This section allows users to set the IPSec and the related parameters. General General Item Description Default Tick to enable NAT Traversal for IPSec. This item must be enabled when Enable NAT Traversal router under NAT environment.
  • Page 65 Robustel GoRugged R3000 User Guide Tunnel Settings Item Description Default Index Show the index of the tunnel. Enable Enable IPSec Tunnel. Description Enter some simple words about the IPSec Tunnel. Null Gateway Enter the address of remote side IPSec VPN server.
  • Page 66 Robustel GoRugged R3000 User Guide When choose “Authentication Type” to “xAuth PSK”. When choose “Authentication Type” to “xAuth CA”. IKE Settings Item Description Default Select from “Main” and “Aggressive” for the IKE negotiation mode in phase 1. If the IP address of one end of an IPSec tunnel is obtained dynamically,...
  • Page 67 Robustel GoRugged R3000 User Guide IKE Settings Item Description Default Select from “MODP (1024)” and “MODP (1536)”to be used in key negotiation phase 1. MODP IKE DH Group MODP (1024): Uses the 1024-bit Diffie-Hellman group. (1024) MODP (1536): Uses the 1536-bit Diffie-Hellman group.
  • Page 68 Robustel GoRugged R3000 User Guide When choose the “Tunnel Setting->General Setting->Protocol” to “ESP”. When choose the “Tunnel Setting->Protocol” to “AH”. SA Settings Item Description Default Select from “3DES”, “AES128” and “AES256” when you select “ESP” in “Protocol”; Encrypt Algorithm Note: Higher security means more complex implementation and lower 3DES speed.
  • Page 69 Robustel GoRugged R3000 User Guide SA Settings Item Description Default the local end sends an IPSec packet, DPD checks the time the last IPSec packet was received from the peer. If the time exceeds the DPD interval, it sends a DPD hello to the peer. If the local end receives no DPD acknowledgment within the DPD packet retransmission interval, it retransmits the DPD hello.

  • Page 70: Vpn->Openvpn

    Robustel GoRugged R3000 User Guide x509 Item Description Default @crl.pem Index Show the index of the certificate file. Null Filename Show the name of the certificate file. Null File Size Show the size of the certificate file. Null Last Modification Show the timestamp of that the last time to modify the certificate file.
  • Page 71 Robustel GoRugged R3000 User Guide When choose “Authentication Type” to “Password”. When choose RT_UG_R3000_v.3.0.3 04.02.2017 70 / 124 Confidential...
  • Page 72 Robustel GoRugged R3000 User Guide “Authentication Type” to “X509CA”. When choose “Authentication Type” to “X509CA Password”. RT_UG_R3000_v.3.0.3 04.02.2017 71 / 124 Confidential...
  • Page 73 Robustel GoRugged R3000 User Guide Tunnel Settings Item Description Default Index Show the index of the tunnel. Enable Enable OpenVPN tunnel. Description Enter some simple words about the OpenVPN Tunnel. Null Mode Select from “P2P”, “Client”. Client Protocol Select from “UDP”, “TCP-Client”.
  • Page 74 Robustel GoRugged R3000 User Guide Tunnel Settings Item Description Default Select the level of the output log. Values range from 0 to 11. 0 -- No output except fatal errors. 1 to 4 -- Normal usage range. Verbose Level 5 -- Output R and W characters to the console for each packet read and write.

  • Page 75: Vpn->Gre

    Robustel GoRugged R3000 User Guide x509 Item Description Default Select the name of the Tunnel1 to Tunnel3. Because the maximum Tunnel Name Tunnel 1 number of the tunnel is three. Choose the correct file to import the certificate into the router.

  • Page 76: Services->Syslog

    Robustel GoRugged R3000 User Guide Item Description Default Index Show the index of the tunnel. Enable GRE tunnel. GRE (Generic Routing Encapsulation) is a protocol that Enable encapsulates packets in order to route other protocols over IP networks. Description Enter some simple words about the GRE Tunnel.

  • Page 77: Services->Event

    Robustel GoRugged R3000 User Guide Syslog Syslog Settings Item Description Default Enable Click to enable Syslog setting. Select form “Debug”, “Info”, “Notice”, “Warning”, “Error” which from low to Syslog Level Notice high. The lower level will output more syslog in detail.
  • Page 78 Robustel GoRugged R3000 User Guide Notification@ Event Item Description Default Index The index of event notification group. Description Enter some simple words to describe the Notify Group. Null Click to enable router to send event notification SMS. Set the phone number Sent SMS that is used for receiving event notification, and use ‘;’to separate each...
  • Page 79 Robustel GoRugged R3000 User Guide Query @ Event Item Description Default Select the events’ save position from “RAM”, “NVM”. Save Position RAM: Random-access memory. NVM: Non-Volatile Memory. Event will be filtered according to the Filter Message that the user set. Click the Filter Message Refresh button, the filtered event will be displayed in the follow box.

  • Page 80: Services->Ntp

    Robustel GoRugged R3000 User Guide 3.21 Services->NTP This section allows users to set the NTP parameters. Timezone Settings @ NTP Item Description Default Time Zone Select your local time zone. +08:00 Specify the time zone with Daylight Saving Time in TZ environment variable...

  • Page 81: Services->Sms

    Robustel GoRugged R3000 User Guide 3.22 Services->SMS This section allows users to set the SMS parameters. Item Description Default Enable SMS Management Click to enable SMS Management function. Select Authentication Type from “Password”, “Phonenum”, “Both”. Password: use the same username and password as WEB manager for authentication.

  • Page 82: Services->Ddns

    Robustel GoRugged R3000 User Guide User can test the current SMS service whether it is available in this section. SMS Testing Item Description Default Enter the specified phone number which will receive the SMS from R3000 Phone Number Null router.

  • Page 83: Services->Vrrp

    Robustel GoRugged R3000 User Guide DDNS Item Description Default Enable Click to enable DDNS function. Select the DDNS service from “DynDNS”, “NO-IP”, “3322”. Service Provider Note: the DDNS service only can be used after registered by DynDNS Corresponding service provider.

  • Page 84: Services->Ssh

    Robustel GoRugged R3000 User Guide VRRP Item Description Default VRRP (Virtual Router Redundancy Protocol) is an Internet protocol that provides a way to have one or more backup routers when using a statically VRRP Null configured router on a local area network (LAN).Using VRRP, a virtual IP address can be specified manually.

  • Page 85: Services->Gps

    Robustel GoRugged R3000 User Guide Keys Management Item Description Effective when SSH->Disable Password Logins is “ON”. Authorized Keys Select a key file from PC, then click button to import the key file in R3000. So that you can access R3000 via SSH without password.
  • Page 86 Robustel GoRugged R3000 User Guide This section allows users to check the GPS status. GPS Status @ GPS Item Description Default Show the GPS Status. Status Not Fix GPS status includes: “NO Fix”, “2D Fix” and “3D Fix”. UTC Time Show the UTC of satellites, which is world unified time, not local time.
  • Page 87 Robustel GoRugged R3000 User Guide This section allows users to check the real time GPS status of router in the map. Click to enter GPS map website. RT_UG_R3000_v.3.0.3 04.02.2017 86 / 124 Confidential...

  • Page 88: Services->Web Server

    Robustel GoRugged R3000 User Guide 3.27 Services->Web Server This section allows users to modify the parameters of Web Server. Basic @ Web Server Item Description Default Enter the HTTP port number you want to change in R3000’s Web Server. On a Web server, port 80 is the port that the server "listens to" or expects to HTTP Port receive from a Web client.

  • Page 89: Services->Advanced

    Robustel GoRugged R3000 User Guide Certificate Management Item Description Default Select from “CA” and “Private Key”. Import Type CA: a digital certificate issued by CA center. Private Key: a private key file. Click “Browse” to select the certificate file in your computer, and then click HTTPS Certificate “Import”...

  • Page 90: System->Debug

    Robustel GoRugged R3000 User Guide AT over Telnet @ Advanced Item Description Default Enable Click to enable AT over Telnet function. Enter a specific port number to allow user sent AT command to this router Port over telnet. AT Cmd COM Port Select a COM port used for identifying the AT command.

  • Page 91: System->Update

    Robustel GoRugged R3000 User Guide Syslog Details @ Syslog Item Description Default Select form “Debug”, “Info”, “Notice”, “Warn”, “Error” which from low to Log Level Debug high. The lower level will output more syslog in detail. Log will be filtered according to the Filter Message that the user set. Click the Filtering Refresh button, the filtered log will be displayed in the follow box.

  • Page 92: System->App Center

    Robustel GoRugged R3000 User Guide 3.31 System->APP Center This section allow user to add a new function to R3000 router. And the new function will be in the form of an APP file which could be installed in R3000 router. In general, the App which had installed will display in Service section.

  • Page 93: System->Tools

    Robustel GoRugged R3000 User Guide 3.32 System->Tools This section provides users three tools: Ping, Traceroute and Sniffer. Ping @ Tools Item Description Default IP address Enter the ping destination IP address or domain name. Null Number of requests Specify the number of ping requests.
  • Page 94 Robustel GoRugged R3000 User Guide At Debug @ Tools Item Description Enter a At command in Command box, then click button to send the At Command command to the cellular module. Result It will display the AT commands which respond from the cellular module in this box.
  • Page 95 Robustel GoRugged R3000 User Guide Traceroute @ Tools Item Description Default Trace Address Enter the trace destination IP address or domain name. Null Specify the max trace hops. Router will stop tracing if the trace hops has met Trace Hops max value no matter the destination has been reached or not.

  • Page 96: System->Profile

    Robustel GoRugged R3000 User Guide 3.33 System->Profile This section allows users to import or export the configuration file, and restore the router to factory default setting. Import Configuration File @ Profile Item Description Default Define what to do about the configs that is not contained in the imported file.

  • Page 97: System->Device Configuration

    Robustel GoRugged R3000 User Guide 3.34 System->Device Configuration Enable or disable the WAN interface. Advanced Device Settings Item Description Default Switch button to ON to configure eth0 as WAN interface. eth0 Used As Switch button to OFF, it will disable the WAN interface, eth0 will recovery to be LAN interface.
  • Page 98 Robustel GoRugged R3000 User Guide Super User Item Description Default Enter a new password for the super user, valid characters: a-z, A-Z, 0-9, @, ., -, New Password Null #, $, *. Confirm Password Enter the new password again which had added in New Password item.

  • Page 99: Chapter 4 Configuration Examples

    Robustel GoRugged R3000 User Guide Chapter 4 Configuration Examples 4.1 Interface 4.1.1 Console Port 4.1 User can use the console port manage the router via CLI commands, please check section Cellular 2.1.1 Cellular Dial-Up RT_UG_R3000_v.3.0.3 04.02.2017 98 / 124 Confidential...

  • Page 100: Digital Input

    Robustel GoRugged R3000 User Guide 4.1.2 Digital Input There are two digital inputs of R3000, it support dry contact (do not supports wet contact). Please check the connector interface of R3000, you can find out “V-” easily at one of the pin of power input connector.

  • Page 101: Rs232

    Robustel GoRugged R3000 User Guide 4.1.4 RS232 R3000 supports one RS232 for serial data communication. Please refer to the connection diagram at the right site. 4.1.5 RS485 R3000 supports one RS485 for serial data communication. Please refer to the connection diagram at the right site.

  • Page 102: Cellular

    Robustel GoRugged R3000 User Guide 4.2 Cellular 2.2.1 Cellular Dial-Up This section shows users how to configure the primary and backup SIM card of Cellular Dial-up. Interface-->Link Manager->General Setting Select WWAN1 as Primary Link. Click to set the WWAN1’s parameter according to the current ISP.
  • Page 103 Robustel GoRugged R3000 User Guide The modifications will take effect after click “Submit” and “save and apply” button. Interface-->Cellular Click to set the SIM card’s parameter according to the application requirement. The modifications will take effect after click “Submit” and “save and apply” button.

  • Page 104: Sms Remote Control

    Robustel GoRugged R3000 User Guide 2.2.2 SMS Remote Control R3000 supports remote control via SMS. User can use following commands to get the status of R3000, and set all the parameters of R3000. There are three authentication types for SMS control. You can select from “Password”, “Phonenum” and “Both”.
  • Page 105 Robustel GoRugged R3000 User Guide <netmask>255.255.0.0</netmask> <mtu>1500</mtu> SMS cmd: set lan network 1 interface lan0 set lan network 1 ip 172.16.99.11 set lan network 1 netmask 255.255.0.0 set lan network 1 mtu 1500 The semicolon character (‘;’) is used to separate more than one commands packed in a single SMS.

  • Page 106: Network

    Robustel GoRugged R3000 User Guide 4.3 Network 4.3.1 IPSEC VPN Note: the configuration of server and client is as follows RT_UG_R3000_v.3.0.3 04.02.2017 105 / 124 Confidential...
  • Page 107 Robustel GoRugged R3000 User Guide IPSecVPN_SERVER: Cisco 2811: RT_UG_R3000_v.3.0.3 04.02.2017 106 / 124 Confidential...
  • Page 108 Robustel GoRugged R3000 User Guide IPSecVPN_CLIENT: VPN--->IPSec--->Tunnel Then click “ ”. RT_UG_R3000_v.3.0.3 04.02.2017 107 / 124 Confidential...
  • Page 109 Robustel GoRugged R3000 User Guide The modification will take effect after “Submit-->Save&Apply-->Reboot”. The comparison between server and client is as following picture: RT_UG_R3000_v.3.0.3 04.02.2017 108 / 124 Confidential...

  • Page 110: Openvpn

    Robustel GoRugged R3000 User Guide 4.3.2 OPENVPN Note: the configuration of two points is as follows. OPENVPN (p2p): Point 1 VPN--->OpenVPN--->OpenVPN Click “ ”. RT_UG_R3000_v.3.0.3 04.02.2017 109 / 124 Confidential...
  • Page 111 Robustel GoRugged R3000 User Guide The modifications will take effect after click “Submit-->Save&Apply”. Point 2 VPN--->OpenVPN--->OpenVPN Click “ ”. RT_UG_R3000_v.3.0.3 04.02.2017 110 / 124 Confidential...
  • Page 112 Robustel GoRugged R3000 User Guide The modifications will take effect after click “Submit-->Save&Apply”. RT_UG_R3000_v.3.0.3 04.02.2017 111 / 124 Confidential...

  • Page 113: Gre Vpn

    Robustel GoRugged R3000 User Guide The comparison between point 1 and point 2 is as following picture: 4.3.3 GRE VPN VPN--->GRE--->GRE RT_UG_R3000_v.3.0.3 04.02.2017 112 / 124 Confidential...
  • Page 114 Robustel GoRugged R3000 User Guide Click “ ”. GRE-1： The modifications will take effect after click “Submit-->Save&Apply”. GRE-2: The modifications will take effect after click “Submit-->Save&Apply”. The comparison between point 1 and point 2 is as following picture: RT_UG_R3000_v.3.0.3 04.02.2017...

  • Page 115: Chapter 5 Introductions For Cli

    Robustel GoRugged R3000 User Guide Chapter 5 Introductions for CLI 5.1 What’s CLI The R3000 command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the SSH or through a telnet network connection.

  • Page 116: How To Configure The Cli

    Robustel GoRugged R3000 User Guide 5.2 How to Configure the CLI Following is a list about the description of help and the error should be encountered in the configuring program. Commands /tips Description Typing a question mark “?” will show you the help information.
  • Page 117 Robustel GoRugged R3000 User Guide String Firmware name # tftpupdate firmware R3000-firmware-sysupgrade-unknown.bin host 192.168.100.99 //enter a new firmware name Downloading R3000-firmware-s 100% |*******************************| 5018k 0:00:00 ETA Flashing Checking 100% Decrypting 100% Flashing 100% Verifying 100% Verfify Success upgrade success //update success...
  • Page 118 Robustel GoRugged R3000 User Guide backup_link Backup Link backup_mode Backup Mode emergency_reboot Emergency Reboot link Link Settings # set link_manager primary_link (space+?) Enum Primary Link (wwan1/wwan2/wan) # set link_manager primary_link wwan1 //select “wwan1” as primary_link //setting succeed # set link_manager link 1...
  • Page 119 Robustel GoRugged R3000 User Guide Example 4: Set LAN IP address # show lan all network { id = 1 interface = lan0 ip = 192.168.0.1 netmask = 255.255.255.0 mtu = 1500 dhcp { enable = true mode = server relay_server = ""...
  • Page 120 Robustel GoRugged R3000 User Guide # set lan network 1 ip 172.16.99.22 //set IP address for lan //setting succeed # set lan network 1 netmask 255.255.0.0 … # config save_and_apply // save and apply current configuration, make you configuration effect...
  • Page 121 Robustel GoRugged R3000 User Guide card = sim2 phone_number = "" extra_at_cmd = "" network_type = auto band_select_type = all band_gsm_850 = false band_gsm_900 = false band_gsm_1800 = false band_gsm_1900 = false band_wcdma_850 = false band_wcdma_900 = false band_wcdma_1900 = false...

  • Page 122: Commands Reference

    Robustel GoRugged R3000 User Guide band_gsm_850 GSM 850 band_gsm_900 GSM 900 band_gsm_1800 GSM 1800 band_gsm_1900 GSM 1900 band_wcdma_850 WCDMA 850 band_wcdma_900 WCDMA 900 band_wcdma_1900 WCDMA 1900 band_wcdma_2100 WCDMA 2100 band_lte_800 LTE 800 (band 20) band_lte_850 LTE 850 (band 5) band_lte_900...
  • Page 123 Robustel GoRugged R3000 User Guide Glossary Abbreviations Description Alternating Current Access Point Name of GPRS Service Provider Network ASCII American Standard Code for Information Interchange Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol Command Line Interface for batch scripting...
  • Page 124 Robustel GoRugged R3000 User Guide Abbreviations Description kbps kbits per second L2TP Layer 2 Tunneling Protocol local area network Light Emitting Diode Machine to Machine Maximum Minimum Mobile Originated Mobile Station Mobile Terminated OpenVPN Open Virtual Private Network Password Authentication Protocol...
  • Page 125 Robustel GoRugged R3000 User Guide Abbreviations Description Volts Direct current VLAN Virtual Local Area Network Virtual Private Network VSWR Voltage Stationary Wave Ratio Wide Area Network RT_UG_R3000_v.3.0.3 04.02.2017 124 / 124 Confidential...
