- Page 1 Robustel R1520 Hardware Manual R1520 Hardware Manual Version: 1.0.1 Date: Nov. 28, 2022 RT056_HM_R1520 1/12...
- Page 2 Robustel R1520 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Robustel R1520 Hardware Manual est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 4 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 5 Robustel R1520 Hardware Manual Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description July 6, 2022 5.0.0...

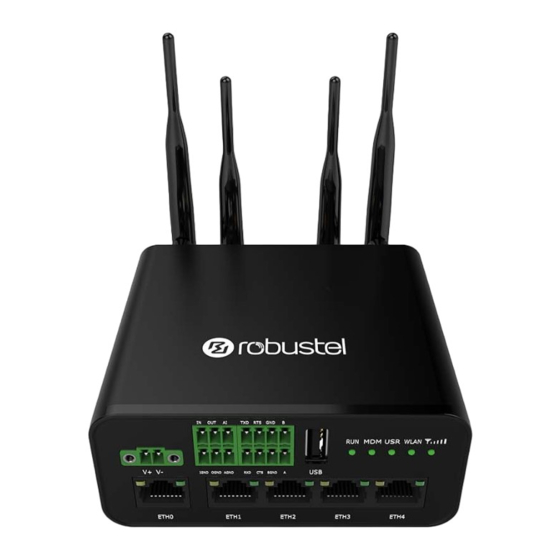

- Page 6 Robustel R1520 Hardware Manual Overview Robustel R1520 is a rugged cellular router can support 2G, 3G, and 4G LTE Cat 4 networks. It provides high-speed wireless network bandwidth for devices through wireless connections to ensure stable wireless network connections. Package Checklist...
- Page 7 Robustel R1520 Hardware Manual Interface Descriptions Power Supply.2PIN 3.5mm Terminal Block Description Note Positive Negative 9-36 VDC Power Connection Diagram DI/DO、AI Interface Note Digital Input Positive Digital Output Positive Analog Input IGND Digital Input Negative OGND Digital Output Negative AGND...
-
Page 8: Reset Button
Robustel R1520 Hardware Manual DI&DO Typical Connection Diagram RS-232/RS-485 RS232 RS485 Description Router → Devices Router → Devices RS485 Signal Ground RS485 Data+ (B) Router ← Devices Router ← Devices SGND RS232 Signal Ground RS485 Data+ (A) Reset Button Feature... - Page 9 RT123_SM_RobustOS Software Manual, Services > Advanced > System >System Settings > User LED Type. Ethernet Ports. There are five Ethernet ports on R1520, including ETH0 (PoE-PD Optional), ETH1, ETH2, ETH3 and ETH4. Each has two LED indicators. The green one is a link indicator but the yellow one doesn’t mean anything.
-
Page 10: Hardware Installation
Robustel R1520 Hardware Manual Hardware Installation SIM Card Installation. Insert the SIM cards into the device, then stick the sticker. Antenna Installation. Rotate the antenna into the antenna connector accordingly. ① Cellular Antenna ② GPS Antenna Terminal Block Installation. Insert the 2PIN 、 2x3PIN 、 2x4PIN terminal blocks into the interfaces connector, then can connect the devices or sensors to the gateway via corresponding interfaces e.g. - Page 11 Robustel R1520 Hardware Manual Hardware Installation Mounting Kit installation. ③ Wall mounting ④ DIN rail mounting RT056_HM_R1520 11/12...
- Page 12 Robustel R1520 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
