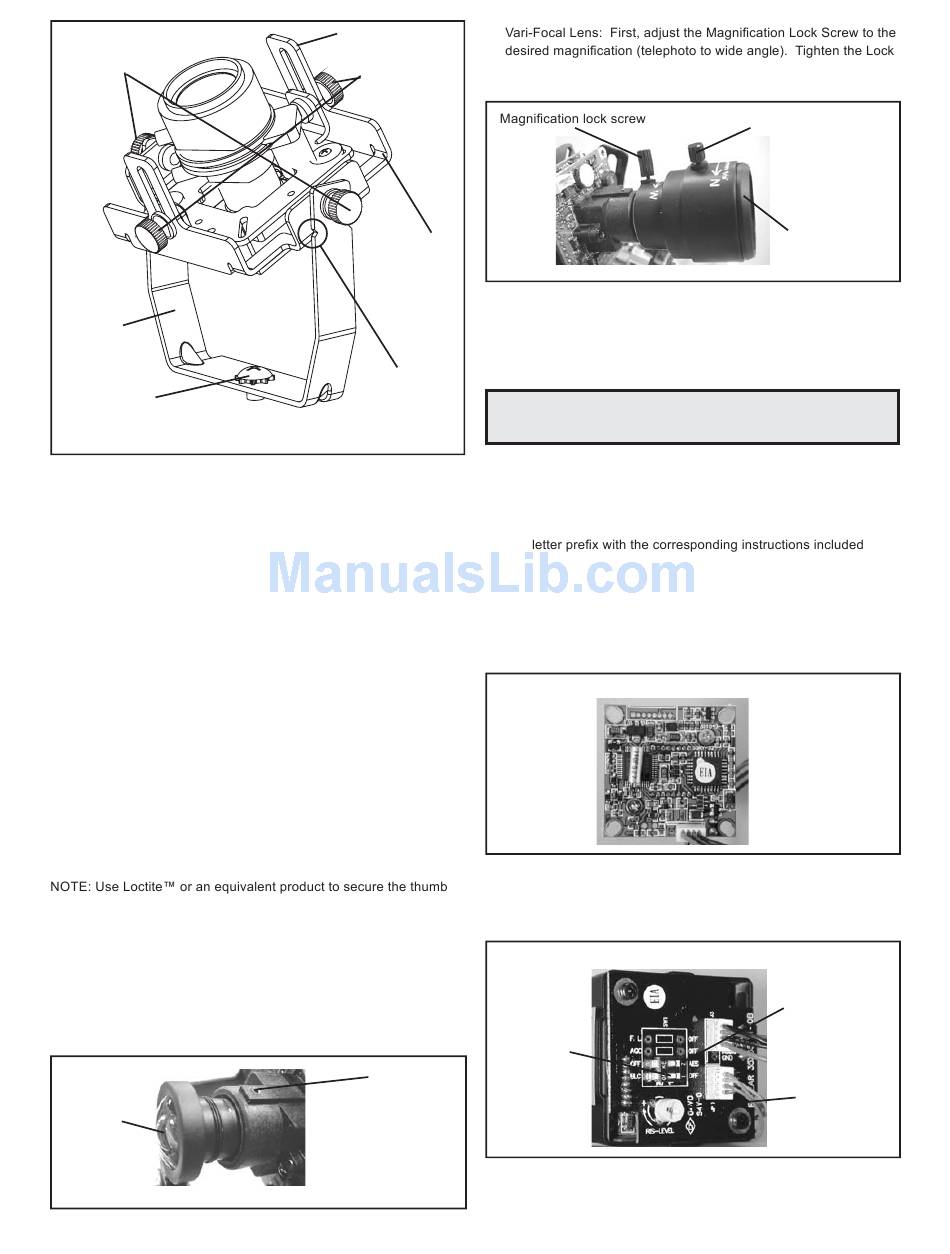

Camera Focusing; Camera Settings - Moog Videolarm WS1C-50NF Product Instructions

Horizon Adjustment
Thumb Screws
Rotating
Bracket
Pan Adjustment Screw
Figure 6
Bracket Alignment:
Wall mount: Be sure the rotating bracket is positioned vertically.
Ceiling mount: Be sure the rotating bracket is aligned to point
toward the desired viewing location.
1. Adjust the Pan: Loosen the two Camera Cradle thumb screws and
turn the camera lens to face toward the side of the housing. Use a
Phillips head screwdriver to loosen the screw holding the rotating
bracket in place. Adjust the bracket and retighten the screw to lock
the bracket in place.
2. Adjust the Horizon: The camera must be parallel to the ground.
To adjust the horizon, loosen the two thumb screws on the Camera
Cradle and tilt as needed. Notches are included on the rotating
bracket to help determine if the cradle is level. Retighten the thumb
screws.
3. Adjust the Tilt: Loosen the two thumb screws on the Lens Bracket
and tilt the camera/lens to the desired location. The lens can also
be adjusted up and down if needed. Retighten the thumb screws.
screws, especially where vibration is a concern.

CAMERA FOCUSING

Fixed Lens: Loosen the set screw in the lens mount and to
manually rotate the lens until a clear picture is achieved. Once
the focus is set, retighten the set screw (Figure 7).
Fixed lens
Figure 7
Lens Bracket
Screw. Next, adjust the Focus Lock Screw until a clear picture is
Lens Bracket
achieved. Tighten the Lock Screw (Figure 8).
Thumb Screws
Camera Cradle
Figure 8
Auto Iris Lens:
NOTE: THE AUTO IRIS LENS IS SET AT THE FACTORY.
Horizon Leveling
Notches
SEE THE TROUBLESHOOTING SECTION FOR

CAMERA SETTINGS

NOTE: To determine which camera is used in your unit, locate the
SERIAL NUMBERS BEGINNING WITH YK
FIXED AND FIXED VARI-FOCAL LENSES. There are no user
adjustable settings on these units (Figure 9).
Figure 9
AUTO IRIS LENSES. The dip switches are factory set with AES
off and backlight compensation on (Figure 10). The auto iris is
also set at the factory, but an adjustment screw is included for use
if needed. See page 10 for instructions on adjusting Auto Iris.
Backlight
Compensation
Default On
Set screw
Figure 10
- 3 -
• IF YOU EXPERIENCE VIDEO TOO LIGHT OR DARK
AUTO IRIS ADJUSTMENT MAY BE NEEDED.
ADJUSTMENT INFORMATION.
serial number on the inside of the housing. Match the two
here for adjustments.
BW Fixed and Vari-Focal
BW Auto Iris
Focus lock screw
Fixed iris
vari-focal lens
AES Default Off
Auto Iris
adjustment
screw
