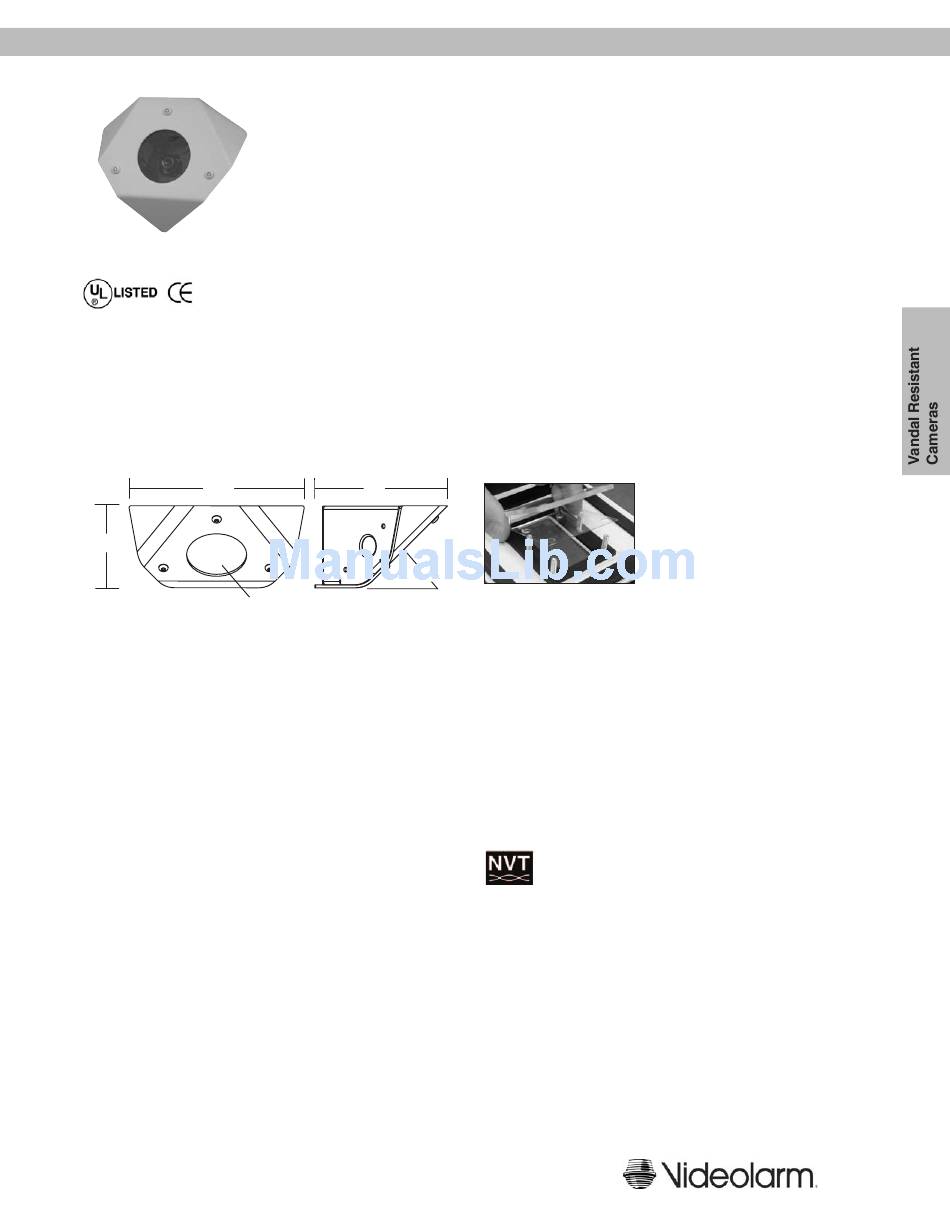

VANDAL RESISTANT CAMERAS - WS6 Corner Mount
CERTIFICATIONS
ARCHITECTURAL/ENGINEERING SPECIFICATIONS
The Warrior 6 housing shall include a 16-gauge steel backbox with 3/ 4" conduit knockouts. The front cover shall be 12-gauge steel, powder
coated in off-white. There is an optional stainless steel or brass front plate. The viewing window shall be constructed of 1/8" polycarbonate and
shall include a scratch resistant coating and paint shield for high vandalism installations. A metal camera mounting bracket shall be included,
allowing from 10º to 50º viewing angle. Available with hi-res black and white, hi-res color, or hi-res day/night cameras. A factory installed NVT
twisted pair module shall be available as an option.
6.5"
3"
2.25" Diameter
MECHANICAL SPECIFICATIONS
Cable Entry
Pan/Tilt
CONSTRUCTION
FINISH
DIMENSIONS
Housing
Window
ELECTRICAL SPECIFICATIONS
Input Voltage
Current Draw
Power Requirements
Camera
Video Connector
ENVIRONMENTAL SPECIFICATIONS
Temperature Range
CAMERA SPECIFICATIONS - see page 29
Product specifi cations are subject to change without notice.
2525 Park Central Blvd • Decatur GA 30035 • 770-987-7550 • www.videolarm.com • info@videolarm.com
DESCRIPTION
Designed for indoor applications, the Warrior 6 offers discreet surveillance in a compact package. A
12-gauge steel front cover and polycarbonate window with a scratch resistant coating protect camera
equipment, while the 16-gauge steel back box allows wiring access through either the top, side or
bottom. A day/night camera is also available.
FEATURES
• 12-gauge steel front plate, powder coated
• Optional stainless steel or brass fi nished face plate
• Adjustable camera bracket,
• Window Guard™ paint shield
• Conduit knockouts in the top, side, and bottom
5"
45˚
1/2" conduits on sides of back box
Manual; 15˚ tilt above and below
horizon
12-gauge steel faceplate
16-gauge steel backbox
1/8" polycarbonate viewing window
Off-white powder coat, brass, or
stainless steel
3" (H) x 6.5" (W) x 5" (D)
2.25" diameter
12 - 28 VDC or 15 - 28 VAC
Must be a regulated power supply
12 VDC - 350mA; 24 VAC - 202mA
12 VDC - 4.2W; 24 VAC - 4.8W
BNC
0º to 110º F
CAMERA/LENS CHOICES
• Hi-res b/w
• Hi res color
• Hi-Res day/night
• 3.6mm and 2.5mm fi xed lens included
Videolarm's exclusive Window Guard
Paint Shield™ helps protect housing
windows from vandals using spray paint
or paintball guns.
FACTORY INSTALLED OPTIONS
• NVT twisted pair transmitter module (customer must
purchase video receiver from NVT)
ADDITIONAL OPTIONS
• WSLP68 - Lens combination pack (6 mm, 8 mm)
• PS12 - 12VDC power supply
• WS3PS - Additional paint shields
SHIPPING SPECIFICATIONS
Model
Unit Weight
Shipping Weight
WS6
3 lbs
4 lbs
* Shipping weights depend on box dimensions.
4
Shipping Box Dim.
9 x 9 x 8
25
