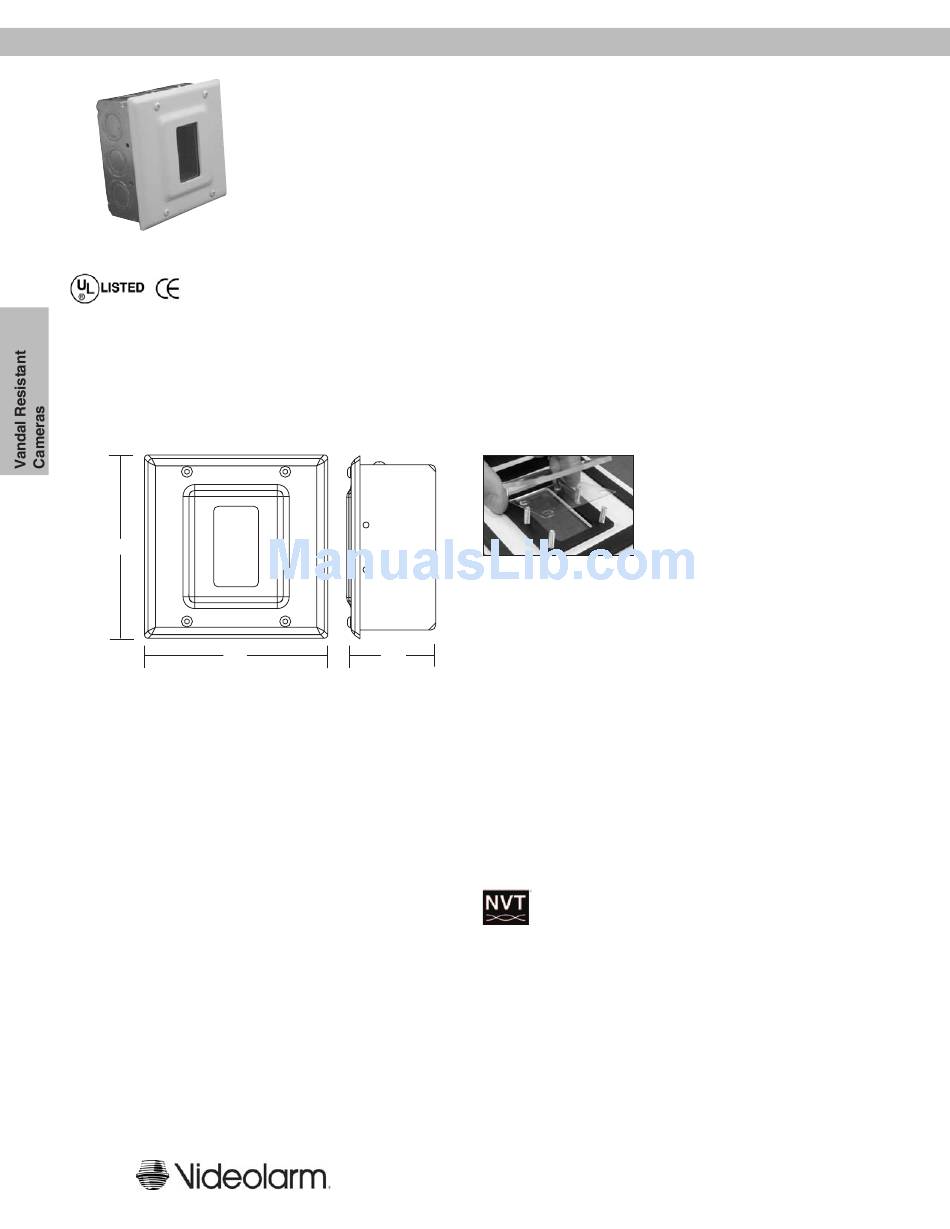

Moog Videolarm WS5-50NF Specifications

VANDAL RESISTANT CAMERAS - WS5 Recessed Wall Mount

CERTIFICATIONS
4
ARCHITECTURAL/ENGINEERING SPECIFICATIONS
The WS5 housing shall include a 15-gauge steel double gang box with multiple 3/4" and 1/2" conduit knockouts. The front cover shall be 12-gauge
steel, powder coated in off-white. The viewing window shall be constructed of 1/8" polycarbonate and shall include a scratch resistant coating and
Window Guard™ paint shield. A metal mounting bracket shall be included which will allow 15º manual tilt above and below the horizon. Available
with hi-res black and white, hi-res color, or hi-res day/night cameras. A factory installed NVT twisted pair module shall be available as an option.
5"
MECHANICAL SPECIFICATIONS
Cable Entry
Pan/Tilt
CONSTRUCTION
FINISH
DIMENSIONS
Housing
Window
ELECTRICAL SPECIFICATIONS
Input Voltage
Current Draw
Power Requirements
Camera
Video Connector
24

DESCRIPTION

The WS5 is a recessed wall unit featuring a 12-gauge steel, powder coated front cover. The window is
1/8" thick polycarbonate with a scratch resistant coating and Videolarm's Window Guard™ paint shield.
A double gang box with multiple conduit knockouts houses the camera inside the wall. A day/night
camera is also available.
FEATURES
• 12-gauge steel front plate, powder coated
• Optional stainless steel face plate
• Adjustable camera bracket,
• Window Guard™ paint shield
• 3/4" and 1/2" conduit knockouts in 15-gauge steel
double gang box
2.5"
5"
3/4" and 1/2" conduits on sides and
base of double gang box
Manual; 15˚ tilt above and below
horizon
12-gauge steel faceplate
1/8" polycarbonate viewing window
Off-white powder coat, brass, or
stainless steel
5" (H) x 5" (W) x 3.75" (D)
2.5" (H) x 1.25" (W)
12 - 28 VDC or 15 - 28 VAC
Must be a regulated power supply
12 VDC - 350mA; 24 VAC - 202mA
12 VDC - 4.2W; 24 VAC - 4.8W
BNC
2525 Park Central Blvd • Decatur GA 30035 • 770-987-7550 • www.videolarm.com • info@videolarm.com
CAMERA/LENS CHOICES
• Hi-res b/w
• Hi res color
• Hi-Res day/night
• 3.6mm and 2.5mm fi xed lens included
Videolarm's exclusive Window Guard
Paint Shield™ helps protect housing
windows from vandals using spray paint
or paintball guns.
ENVIRONMENTAL SPECIFICATIONS
Temperature Range 0º to 110º F
CAMERA SPECIFICATIONS - see page 29
FACTORY INSTALLED OPTIONS
• NVT twisted pair transmitter module (customer must
purchase video receiver from NVT)
ADDITIONAL OPTIONS
• WSLP68 - Lens combination pack (6 mm, 8 mm)
• PS12 - 12VDC power supply
• WS3PS - Additional paint shields
SHIPPING SPECIFICATIONS
Model Unit Weight Shipping Weight
WS5 3 lbs 4 lbs
* Shipping weights depend on box dimensions.
Product specifi cations are subject to change without notice.
Shipping Box Dim.
9 x 9 x 8
