WARRIOR SERIES_

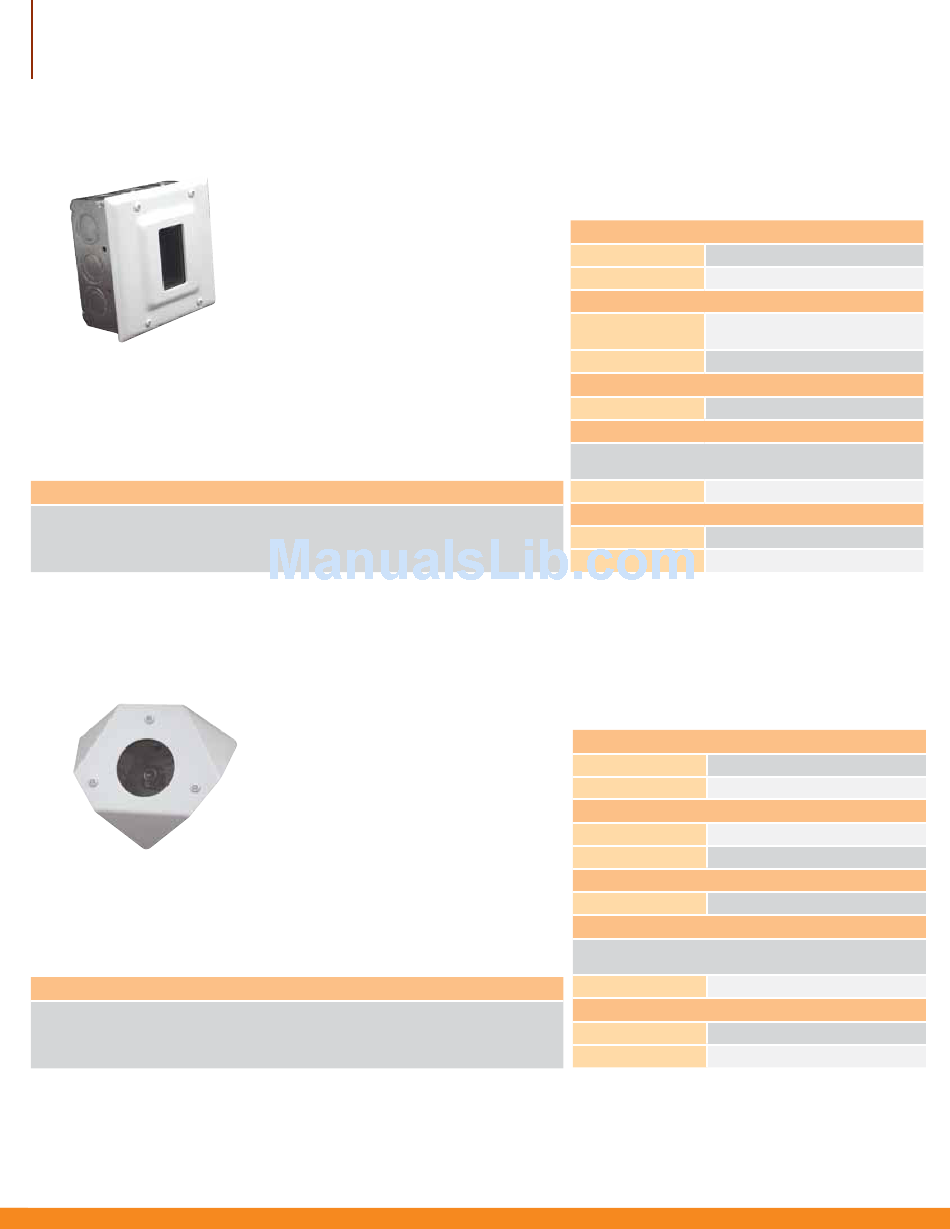

Recessed Wall Mount:

WS5

The WS5 is a recessed wall unit featuring a 15-gauge steel double gang box or a 12-gauge steel front

plate, powder coated front cover. The window is 1/8" thick polycarbonate with a scratch resistant

coating and Moog Videolarm's Window Guard™ paint shield. These combine to offer durable protection

for camera equipment. A double gang box with multiple conduit knockouts houses the camera inside

the wall. The WS5 includes a choice of cameras. This housing is perfect for indoor locations in schools,

hospitals, police and correctional facilities...anywhere tough but discreet surveillance is needed.

Engineering Specifications (WS1)

The WS5 housing includes a 15-gauge steel double gang box with multiple 3/4" and 1/2" conduit knockouts. The front cover is

a 12-gauge steel, powder coated in off-white. The viewing window is constructed of 1/8" polycarbonate and includes a scratch

resistant coating and Window Guard™ paint shield. A metal mounting bracket is included which will allow 15º manual tilt above

and below the horizon. Available with a high resolution color fixed lens camera.

Corner Mount Housing:

WS6

Designed for indoor applications, the Warrior 6 offers discreet surveillance in a compact package.

A 12-gauge steel front cover and polycarbonate window with a scratch resistant coating protect

camera equipment, while the 16-gauge steel back box allows wiring access through either the top,

side or bottom. The Warrior 6 comes complete with a choice of cameras. The sturdy construction

and small size make it perfect in applications such as hospitals, schools, government buildings, and

correctional facilities.

Engineering Specifications (WS1)

The Warrior 6 housing includes a 16-gauge steel backbox with 3/4" conduit knockouts. The front cover is 12-gauge steel,

powder coated in off-white. There is an optional stainless steel or brass front plage. The viewing window is constructed of 1/8"

polycarbonate and includes a scratch resistant coating and paint shield for high vandalism installations. A metal camera

mounting bracket is included, allowing from 10º to 50º viewing angle. Available with a high resolution color fixed lens camera.

500-698 + 08-06-2010

Key Features

•

Includes a choice of cameras

•

12-gauge steel front plate, powder coated

•

Adjustable camera bracket, allowing 15º tilt above and below horizon

•

Optional stainless steel or brass face plate

•

Window Guard™ paint shield

•

3.6mm and 2.5mm fixed lens

•

3/4" and 1/2" conduit knockouts in 15-gauge steel double gang box

•

Tamper-resistant fasteners

Key Features

•

Compact design

•

Includes a choice of cameras

•

12-gauge steel front plate, powder coated

•

Optional stainless steel or brass face plate

•

16-gauge steel back box

•

Adjustable camera bracket, allowing tilt

•

Tough, 1/8" polycarbonate viewing window

•

Conduit knockouts in the top, side, and bottom

•

Vandal-proof paint shield (patent pending)

Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA + 1.800.554.1124 www.videolarm.com

Product and company names listed are trademarks or trade names of their respective companies.

Available with off-white, stainless steel

or brass face plate!

SPECIFICATIONS:

Electrical Specifications

Input Voltage:

15 - 30 VDC or 20 - 28 VAC

Video Connector:

BNC

General Specifications

3/4" and 1/2" conduits on sides and base of

Cable Entry:

double gang box

Pan/Tilt:

Manual; 15º tilt above and below horizon

Environmental Specifications

Temperature Range:

0˚ - 110˚ F

Construction

12-gauge steel front cover 15-gauge steel double gang box

Metal mounting bracket 1/8" polycarbonate viewing window

Finish:

Off-white powder coat

Dimensions

Unit:

5 (H) x 5" (W) x.375" (D)

Window:

2.25" (H) x 1.25" (W)
