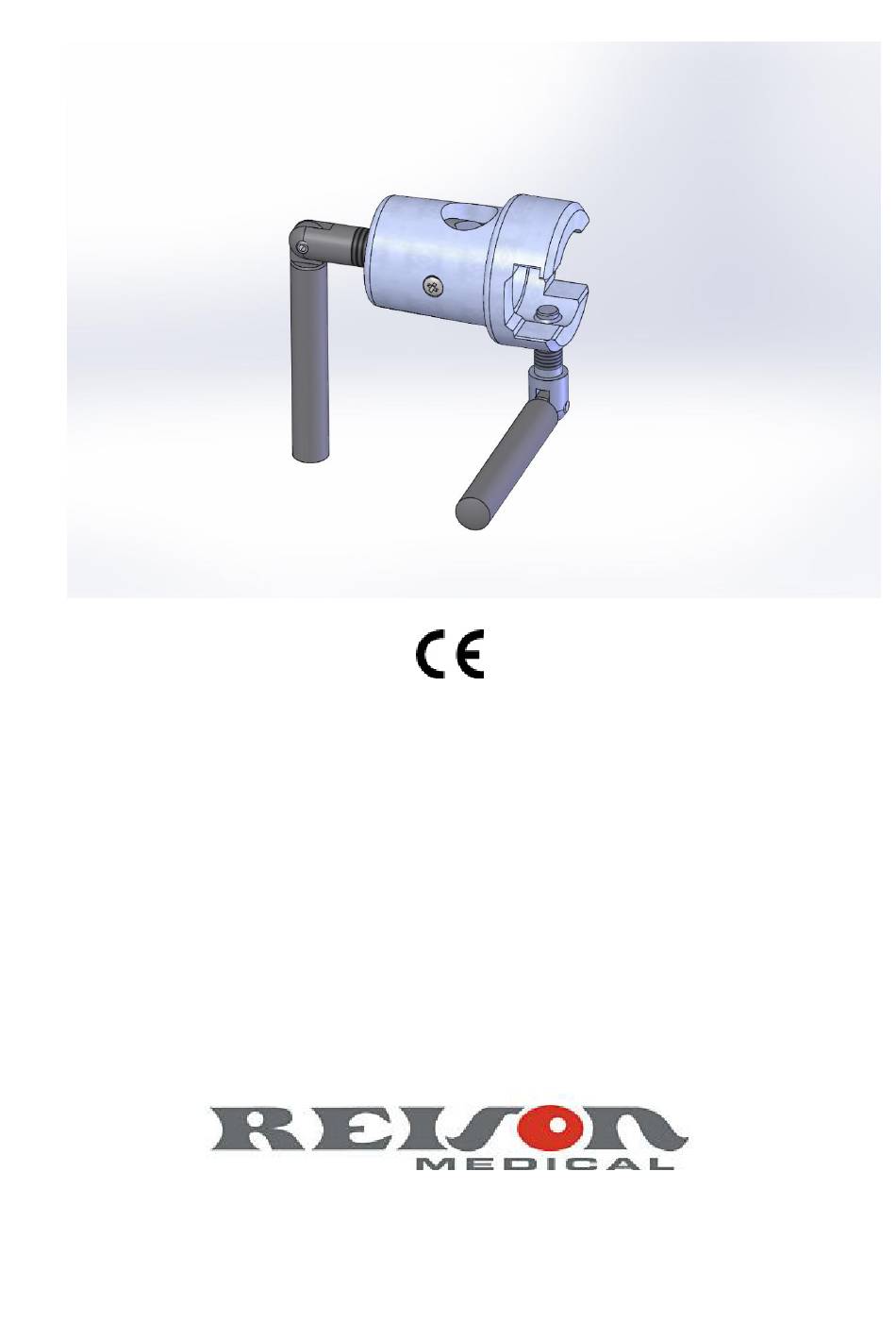

- Page 1 USER MANUAL CLAMP 10-302 GMDN 37050 PID 149184 10-302 Edit 1 Page 1 ( 4...
- Page 2 INTRODUCTION The clamp 10-302 is a fixed non-rotatable clamp for fastening of different accessories on the accessory rail of an operating table. Accessories with a post diameter from 16mm up to 20mm can be held in this clamp. Also available is a variant with flat pushing plunge for accessories with one or two flat surfaces on the post.
- Page 3 2. Washer PB 5x10x5 1pc. 3. Lock handle M10 10062 1pc. 4. Pushing plunge 12145 1pc. 5. Set screw MT6SS 5x6 A2 2pcs. 6. Screw MKFXS 4x8 A2 1pc. 7. Locking handle M14x1,5 10346 1pc. 10-302 Edit 1 Page 3 ( 4...
- Page 4 Minimum accessory post Ø1,6cm Maximum accessory post Maximum load alongside 75kg Maximum lateral load 50kg Box 240 Eriksbergsvägen 32A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-302 Edit 1 Page 4 ( 4...
