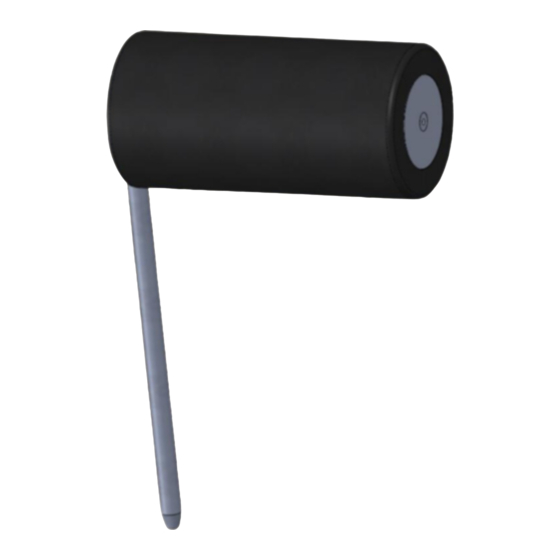

Tibia support 10-367
Tibia support 10-367 including versions
Version
10-367
10-367-K
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2020-10-30
Dokument nummer: M10-367EN rev.01
1
Description
Post with 67 cm height adjustment
Post with 24 cm height adjustment
Advertisement
Table of Contents
Related Manuals for Reison 10-367
Summary of Contents for Reison 10-367
- Page 1 Tibia support 10-367 Tibia support 10-367 including versions Version Description 10-367 Post with 67 cm height adjustment 10-367-K Post with 24 cm height adjustment Warning! This symbol indicates important information related to safety. Follow these instructions carefully. Read User Manual before use! It is important to fully understand the content of the user manual before attempting to use the equipment.
- Page 2 Intended use Tibia support intended for support and positioning of patient knee and foot during surgery. The product is to be used by medical professionals within a medical facility. Safety regulations Maximum load: 25 kg, corresponding to a patient weight of 135 kg, according to EN 60601-1 and EN 60601-2.
- Page 3 User instruction Installation Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used on metal surfaces. Wipe dry with soft cloth.
- Page 4 Annual service Once a year the tibia support shall be carefully cleaned. Spare parts Version: 10-367 10-367-K Description Pcs. Article no. Article no. Stand 11174 11518 Outer disk 11173 11173 Cushion 10691 10691 Accessories Article no. Description 10-304-P Radial clamp for attachment to operating table accessory rail...
- Page 5 Technical specification Material Tibia support Stainless steel Polyurethane Version UDI-DI Maximum workload Weight Dimension (H x W) 10-367 07350111831547 2,5 kg 820 x 300 mm 25 kg (MAX 135 kg ) 10-367-K 07350111831554 2,4 kg 400 x 300 mm 40 kg (MAX 215 kg )
- Page 6 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
