Radial clamp UNI 10-308
Radial clamp UNI 10-308 including versions
Version
10-308
10-308-P
10-308-16
10-308-25,4
10-308/48
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2021-03-31
Document number: M10-308EN rev.01
1
Description
Universal clamp with V-stud
Universal clamp with plane stud
Universal clamp with V-stud
Universal clamp with V-stud
Universal clamp with V-stud, fine serrated gear
rotation
Pole type
Ø 16-20 mm
Ø 16-20 mm
Ø 16
Ø 1" (25,4 mm)
Ø 16-20 mm
Advertisement
Table of Contents
Related Manuals for Reison 10-308
Summary of Contents for Reison 10-308

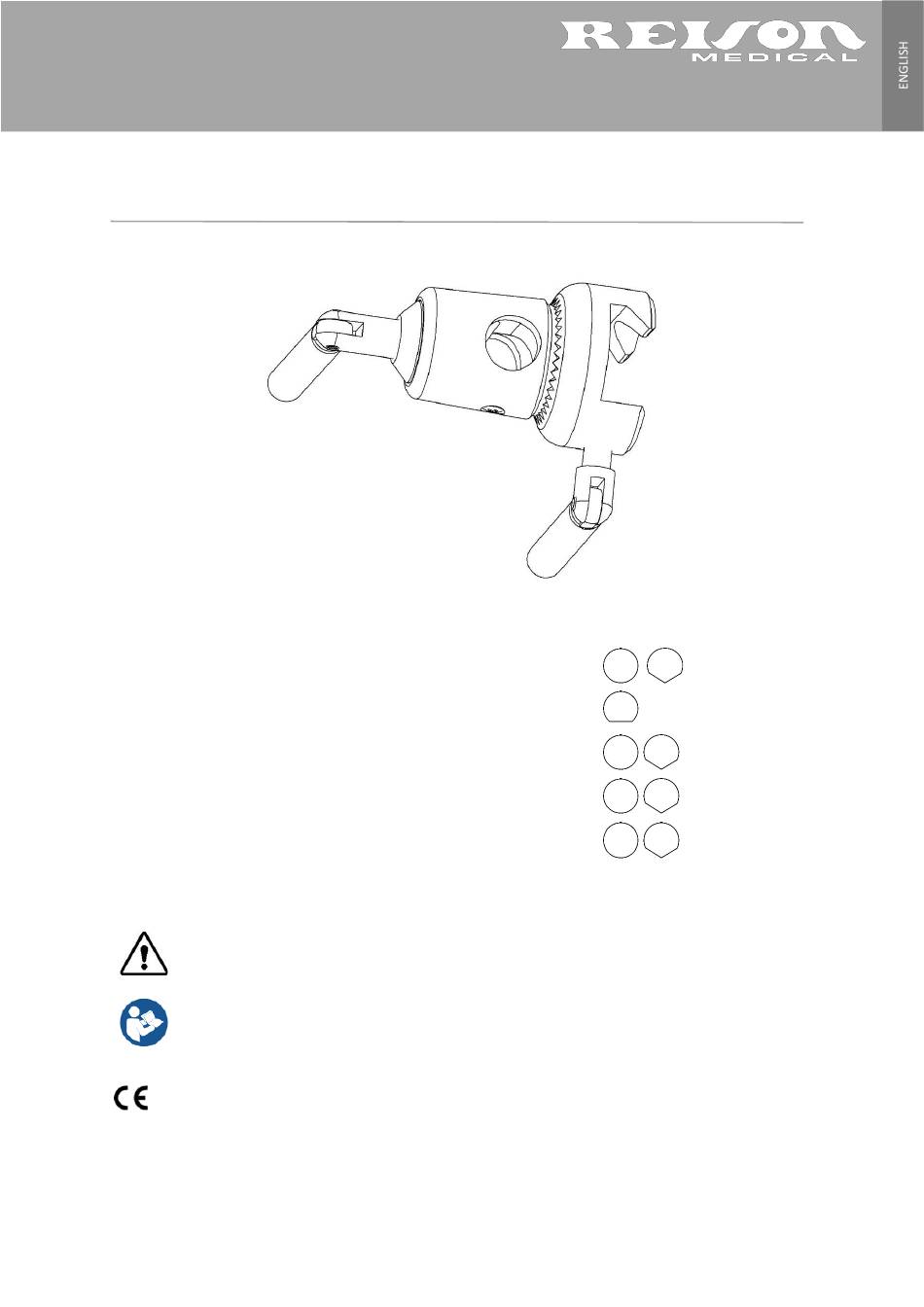

- Page 1 Radial clamp UNI 10-308 Radial clamp UNI 10-308 including versions Version Description Pole type 10-308 Universal clamp with V-stud Ø 16-20 mm 10-308-P Universal clamp with plane stud Ø 16-20 mm 10-308-16 Universal clamp with V-stud Ø 16 10-308-25,4 Universal clamp with V-stud Ø...
- Page 2 Intended use Clamp intended to attach and position accessories, with a pole size Ø 16-20 mm, to the accessory rail on operating and examination tables. The product is to be used by medical professionals within a medical facility. Safety regulation Maximum load: 25 kg, according to EN 60601-1 and EN 60601-2.
- Page 3 User instruction Installation Usage...
- Page 4 Maintenance Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel only. Altering the construction without a written consent from the manufacturer, is strictly forbidden. Cleaning Clean with antiseptic detergent with pH 6 – 8 and warm water. Ethanol can be used. Wipe dry with soft cloth.
- Page 5 Spare parts Version: 10-308 10-308-P 10-308-16 10-308-25,4 10-308/48 Description Pcs. Article no. Article no. Article no. Article no. Article no. Gear ring 10542 10542 10542 11839 10542-1 Guide 10320 10320 10320 11840 10320 Stud 10325 10429 10325 11842 10325 Lock handle...
- Page 6 Weight 1,0 kg Material clamp Stainless steel Brass Dimension Version UDI-DI (H x W x L) 10-308 07350111830205 160 x 55 x 120 mm 10-308-P 07350111830243 160 x 55 x 120 mm 10-308-16 07350111830212 160 x 55 x 120 mm...
- Page 7 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
