© 2012, Moog Videolarm, Inc. All Rights Reserved

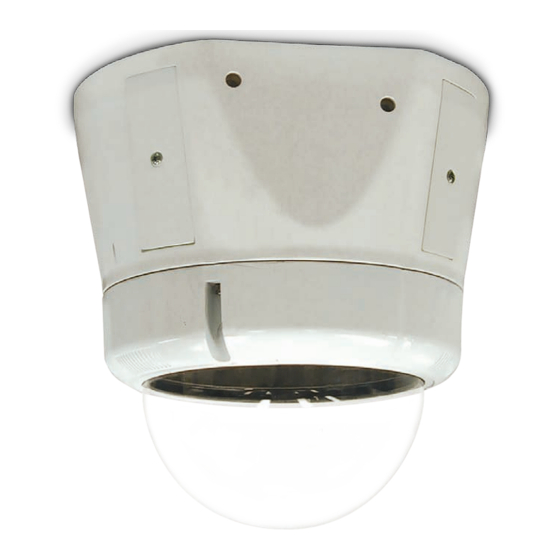

S M 7 5 F I X E D
Vandal-Resistant Surface Mount Network Housing
Installation and Operation Instructions for the following models:
SM75CF2N
IP Network Ready, vandal-resistant outdoor surface mount facing
down or facing towards the sky. Clear dome, with 24Vac input,
heater / blower, for an IP Network. Fixed Camera
ISM75CF2N
IP Network Ready, vandal-resistant indoor surface mount facing
down or facing towards the sky. Clear dome, with 24Vac input,
heater / blower, for an IP Network. Fixed Camera
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5376
02-27-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm SM75CF2N
Summary of Contents for Moog Videolarm SM75CF2N
- Page 1 © 2012, Moog Videolarm, Inc. All Rights Reserved S M 7 5 F I X E D Vandal-Resistant Surface Mount Network Housing www.videolarm.com Installation and Operation Instructions for the following models: SM75CF2N IP Network Ready, vandal-resistant outdoor surface mount facing down or facing towards the sky. Clear dome, with 24Vac input, heater / blower, for an IP Network. Fixed Camera ISM75CF2N IP Network Ready, vandal-resistant indoor surface mount facing down or facing towards the sky. Clear dome, with 24Vac input, heater / blower, for an IP Network. Fixed Camera 81-IN5376 02-27-2012 Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Terms And Conditions
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Electrical Specifications Contents of Box SM7 FIXED Power 24VAC Class 2 Only 24 VAC 3.3 Amps 84 Watts Total Power: 84 Watts Accessories: Heater: 50 Watts/Blower: 2 Watts Camera Power: 32 Watts Max English Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver 24 VAC 3.3 amperios... -
Page 5: Wall Mount
Wall Wall Mounting Mounting WALL Use teflon tape WALL MOUNT Mount only to suitable material such as brick, Use Teflon Tape (included) to seal conduit plugs. concrete, wood, etc. (Wall mount sold separately) • Monte solamente al material conveniente tal como ladrillo, •... - Page 6 Surface Surface Mounting Mounting Remove the (4) side plates . Mounting Surface Securely mount housing to mounting surface. Replace should be of suitable material such as brick, side plates when complete. concrete, wood etc. • Con seguridad montaje que contiene a la superficie de •...
- Page 7 NOTE: ISM75CFN does not include 24 to 12 step down power supply. NOTA: ISM75CFN no incluye la fuente de alimentación descenderar 24 a 12. NOTE : ISM75CFN n'inclut pas l'alimentation de l'énergie 26 Watts 24 à 12 dévoltrice. ANMERKUNG: ISM75CFN schließt nicht Spg. Versorgungsteil 24 bis 12 Schrittes unten ein.
- Page 8 Use the rubber seal when mounting housing Pull the seal over the face of the dome and up right. Center the seal over the dome. down onto the housing. • Utilice el sello de goma al montar contener encima de la •...
-
Page 9: Replacement Parts List
Replacement Parts List SM75 FIXED NETWORK RPRH713 Wall Mount WMSM7 Sold Separately RPSM75040 RP40BRTRAN3 RPSM7512 RPSM7513 WMSM7 RPSM7511 RPFD072 RPPKH2071 RPFD050 RPNET01 RPFD060 RPFD080 RPSM75040 RPNET02 RPRH7503 RC7T RPRH7502 RPSM7501 Part Number Description RPSM7501 DOME SEAL RPRH7502 LOWER TRIM RING RPPKH2094 RC7T TINTED REPLACEMENT CAPSULE... -
Page 10: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
