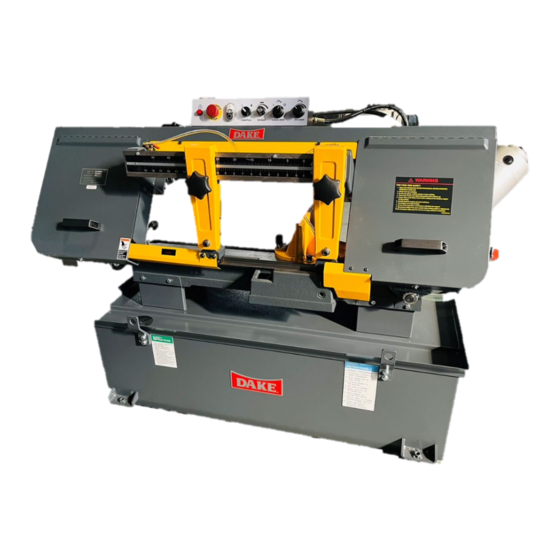

- Page 1 DAKE DUAL MITERING BANDSAW SE-1018 INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation 1809 Industrial Drive www.dakecorp.com Grand Haven MI, 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ..............3 RETURN & REFUND POLICY ..................5 DAKE STANDARD TERMS & CONDITIONS OF SALE ..........6 SPECIFICATIONS ......................7 SAFETY ........................7 SET UP ........................ -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices. (b) Defects or malfunctions resulting from improper installation or failure to operate or maintain the unit in accordance with the printed instructions provided.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These policies are valid from the date of final shipment to the end user. -
Page 6: Dake Standard Terms & Conditions Of Sale
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD TERMS & CONDITIONS OF SALE All proposals and quotations for the original sale of our products are subject to the following terms and conditions: ACCEPTANCE OF ORDER: All orders are subject to acceptance by Dake at its main office in Grand Haven, Michigan. APPLICABLE LAWS: This quotation or acceptance shall be governed in all respects by the laws of the State of Michigan. -
Page 7: Specifications
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS DC MOTOR 2HP/220V/1PH (5A) 20~80 MPM Saw Blade Speed 60Hz (65~260 FPM) Blade Size(mm) 27*0.9*3090*5/8T Dimension L x W x H (mm) 1650x620x1055 N.W / G.W (kgs) 233 / 263 Packing Measurement 1740 x 762 x 1143 mm... - Page 8 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com • Always keep hands and fingers away from the table. • Stop the machine before removing any chips or debris. • Shut off power and clean the band saw and work area before leaving machine. USE OF MACHINE •...
- Page 9 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com • Check for damaged parts before use of the saw, a guard or other part that is damaged should be replaced immediately to ensure that it will operate properly and perform its intended function.
-
Page 10: Set Up
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com SET UP • The electrical rating of your band saw is 230 volt with single phase. Before connecting your machine to an electrical power system, be sure the motor rating must be the same as electrical system. -
Page 11: Starting And Stopping Machine
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com STARTING AND STOPPING MACHINE 1. Raise the saw frame to the up position. 2. The machine is started by pushing the start button (C) (see Fig.2). And it will continue to run until the saw arm is in the down position at the end of the cut, or when the stop button (B) is pushed. -
Page 12: Adjusting Blade Tension
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com ADJUSTING BLADE TENSION To tension the blade, lift up the left wheel cover and turn the blade tension handle (A) Fig. 8, clockwise. A pointer and tension scale (B) is located underneath the wheel. -
Page 13: Operating And Adjusting Vise
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com OPERATING AND ADJUSTING VISE The workpiece is placed between the vise jaws with the amount to be cut-off extending out past the blade. Your machine is equipped with a “quick action”... -
Page 14: Coolant System
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com COOLANT SYSTEM The use of proper cutting fluid is essential to obtain maximum efficiency from a band saw blade. The main cause of tooth failure is excessive heat build-up. This is the reason that cutting fluid is necessary for long blade life and high cutting rates. -
Page 15: Blade Change
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com BLADE CHANGE 1. UNPLUG the machine power source! 2. Raise the saw frame about 6” and close the feed on off knob (E) Fig 21, by turning it clockwise as far as it will go. - Page 16 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com You need to consider: The width of the cut. That is, the distance in the cut that each tooth must travel from the point it enters the work piece until it leaves the work piece, and the shape of the work piece. Use the chart above to assist with tooth selection.
- Page 17 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com BI-METAL SPEEDS AND FEEDS These figures are a guide to cutting 4” (100mm) material (with a 314 Vari-Tooth) when using a cutting fluid. Increase Blade Speed: 15% When cutting 1/4” (6.4mm) material (l0/l4 Vari-Tooth) 12% When cutting 3/4”...
- Page 18 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Ni-Cr-Mo 8615,8620,8622 Alloy Steel 4340,E4340,8630 8640 E9310 Tool Steel A-10 H-11,H-12,H-13 Stainless Steel 410,502 440C 304,324 304L 316,316L REV082023 983114...
-
Page 19: Error Lamp
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com CHIPS Chips are the best indicator of correct feed force. Monitor chip information and adjust feed accordingly. Thin or powdered chips – increase feed rate or reduce blade speed. Burned heavy chips –... -
Page 20: Troubleshooting
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING Symptom Possible Cause Corrective Action Machine cannot be 1. Power is not plugged; the 1. Check the motor specification; started power light on control panel is connect the power with correct power not on. - Page 21 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Unusual Wear on 1. Blade guides worn. 1. Replace. 2. Blade guide bearings not adjust Side/Back of Blade 2. Adjust as per operators manual properly 3. Tighten. 3. Blade guide bearing bracket is loose Teeth Ripping from 1.
-
Page 22: Electrical Diagram
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL DIAGRAM REV082023 983114... -
Page 23: Exploaded View & Parts List
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com EXPLOADED VIEW & PARTS LIST REV082023 983114... - Page 24 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com REV082023 983114...
- Page 25 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Item Reference No. Description Specification D-303189 Dake Logo – Small 1-1/2” x 5” D-81002 Dake Logo – Large 2-13/16” x 7” D-76462 Label - Lockout D-84605 Label – Safety Instructions D-84604 Label –...
- Page 26 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Item Reference No. Description Specification HW011 Washer 3/8"x27xt3 181266 Fixed Bolt HS434 Hex. Headless Screw M8-1.25Px30L HW025 Washer ø10.5*ø27Xt3mm 191210 Knob M10xP1.5x37L 1966003 Vise Jaw Bracket (Rear) HS422 Hex. Headless Screw M6-1.0Px10L 1966004 Bushing...
- Page 27 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Item Reference No. Description Specification HS230 Hex. Head Screw M6-1.0Px20L 196331 Carbide Guide S45C 121061 Bearing Shaft HS422 Hex. Headless Screw M6-1.0Px10L 189015 Bearing Bracket (Left) ∮6-600mm 220-1 189083 Cooling Pipe Connector 220-2 MHD812-60...
- Page 28 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Item Reference No. Description Specification 187021 Beam Cover Yellow 315-1 103127 Hex. Head Screw M6-1.0Px10L ∮2x5L 187039G Scale Silver 316-1 HH001 Rivet HS278 Hex. Head Screw M12-1.75P*20L 1965011 Rail HS433 Hex.
- Page 29 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Item Reference No. Description Specification 187066 Disconnection Piece 189120 Coupling Flange MHS245 Hex. Head Screw M8X35L 189125 Drive Shaft MHK091 Double Round Key 8x7x50L MCA6207LLU Bearing 35x72x17B 187087 Spacer 30x46x3t 198037 Prive Shaft Washer...
- Page 30 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Item Reference No. Description Specification 193058 Spring 187028 Acme Screw 181138B Imperial 187074K Tension Rotation Label Please contact factory for current prices. ORDERING INFORMATION Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number.
