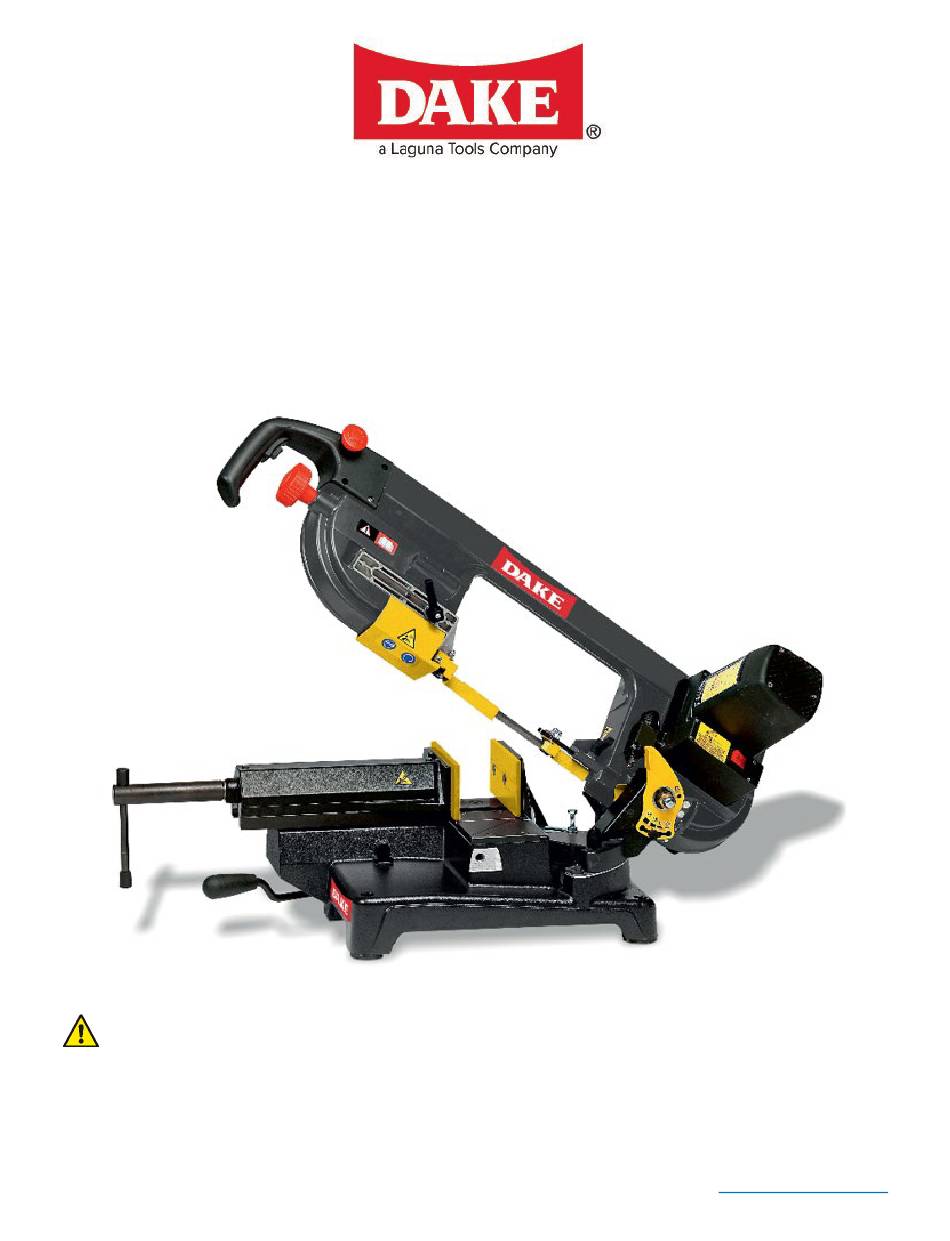

DAKE PORTABLE SEMI-AUTO BANDSAW
SE-5X6 RCT
INSTRUCTIONAL MANUAL
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Fax: 800.846.3253
Grand Haven, MI 49417
