Laguna Tools DAKE Technics 350 SA Instructional Manual

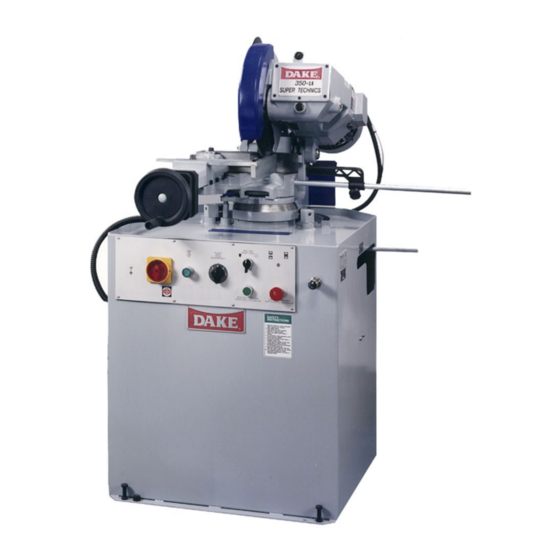

Semi-automatic cold saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
1809 Industrial Park Dr
Grand Haven, MI 49417
DAKE SEMI-AUTOMATIC COLD SAW
Technics 350 SA
INSTRUCTIONAL MANUAL
Phone: 800.937.3253
www.dakecorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAKE Technics 350 SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Laguna Tools DAKE Technics 350 SA

Summary of Contents for Laguna Tools DAKE Technics 350 SA

  • Page 1 DAKE SEMI-AUTOMATIC COLD SAW Technics 350 SA INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Grand Haven, MI 49417...

  • Page 2: Table Of Contents

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 DAKE STANDARD TERMS & CONDITIONS OF SALE ........5 SPECIFICATIONS ....................6 SAFETY ........................7 SET UP .........................

  • Page 3: Dake Standard Limited Warranty

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user.
  • Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.

  • Page 5: Return & Refund Policy

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option.

  • Page 6: Dake Standard Terms & Conditions Of Sale

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD TERMS & CONDITIONS OF SALE All proposals and quotations for the original sale of our products are subject to the following terms and conditions: ACCEPTANCE OF ORDER: All orders are subject to acceptance by Dake at its main office in Grand Haven, Michigan.

  • Page 7: Specifications

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Slotting Technics 350 SA Model 974355-2 Maximum angle 60° left / 45° right Number 220V/440V Weight 890 lbs Voltage Work Height 3-Phase 36-3/4” Phase 3.5 max HP Height 60”...

  • Page 8: Safety

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your machine be alert to the potential for personal injury. Carefully read all safety messages in these instructions and on your machine safety signs.
  • Page 9 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Additional Safety Warnings: • This machine is intended to be operated by one person. This person should be conscious of the machine movement not only for themselves but also for persons on the immediate area of the machine.
  • Page 10 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Locations of shields: • Grey metal shield screwed onto the blade head. (REF. A) • Self-regulating mobile blue plastic shield fitted coaxially with the fixed shield. (REF. B) picture may vary by model* Electrical Equipment: According to European Standard “CENELEC EN 60 204-1”...

  • Page 11: Set Up

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SET UP TRANSPORTING AND ANCHORING When you receive your machine, you will need a forklift for transporting. When lifting the machine, a sling or original shipping pallet needs to be used. Position the machine on a firm cement floor, keeping a minimum distance from 3 feet from any wall.

  • Page 12: Choosing A Blade

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com CHOOSING A BLADE The saw will come with a “DAKE Saw Pitch Calculator” to assist in blade selection. First the pitch of the teeth must be chosen, suitable for the material to be cut, according to these criteria: •...

  • Page 13: Starting And Cutting

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com STARTING AND CUTTING 1. Ensure that the machine is not in emergency stop conditions; if it is, release the red emergency stop button (1). 2. Turn the main switch (3) to the “ON” position. 3.

  • Page 14: Head Return Stroke Limiting Device

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com HEAD RETURN STROKE LIMITING DEVICE To carry out this operation you must: 1. Slightly open regulator. 2. Rotate the selector (5) either to the right or left to lower or lift the motorhead. 3.

  • Page 15: Adjusting Pneumatic System Pressure

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com ADJUSTING PNEUMATIC SYSTEM PRESSURE The pressure in the pneumatic system necessary for the proper operation of the saw must be 87-101 PSI. • Check the pressure by the pressure gauge (11) and use the regulator (12) to set the ideal pressure.

  • Page 16: Changing The Blade

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com MONTHLY MAINTENANCE • Check tightness of the screws on the motor, pump, jaws, and safety guard. • Check safety shields are not broken. • Grease the head hinge pin. SIX MONTH MAINTENANCE •...

  • Page 17: Regulating Arm Blockage

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com REGULATING ARM BLOCKAGE If there is insufficient blockage of the head arm in the desired position, loosen the screw (1) on the lever, hold the bushing (2) in position, turn lever left to tighten the screw. CHANGING THE GEAR BOX OIL 80/90 Synthetic Gear Oil, we recommend MOBIL SHC635.

  • Page 18: Filling The Hydraulic System

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com FILLING THE HYDRAULIC SYSTEM Braking fluid in the cylinder, controlling the head may consume oil throughout time. Therefore, it is important to restore the oil quantity inside the compression tank by removing the plug and then using a syringe type injector (see picture below) to fill the tank.
  • Page 19 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Use the blade calculator to Wrong tooth pitch determine the correct pitch or consult your blade provider Speak with blade provider Low quality and/or dull blade and sharpener Check the material for tightness before cutting Poor clamping pressure causing the part to move...
  • Page 20 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Sticky accumulation of Check the blend of coolant material on blade Check the level of coolant in tank and increase the flow of coolant Insufficient coolant Talk to your coolant provider Blade diameter incorrect Decrease blade diameter and/or too large...

  • Page 21: Electrical Schematic

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL SCHEMATIC 974355-2 REV032023...
  • Page 22 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 974355-2 REV032023...
  • Page 23 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 974355-2 REV032023...

  • Page 24: Pneumatic System Schematics

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com PNEUMATIC SYSTEM SCHEMATICS 974355-2 REV032023...

  • Page 25: Exploded Views & Parts Lists

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEWS & PARTS LISTS 974355-2 REV032023...
  • Page 26 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 974355-2 REV032023...
  • Page 27 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Main Switch Start Push-button Potentiometer Cutting Head Up/Down Selector Cycle Start Selector Emergency Push-button Stop Push-button Transformer Auxiliary Contact Remote Control Switch Auxiliary Relay Fuse Cartridges Head Descent Speed Adjustment 308 Inverter - controls blade speed 974355-2 REV032023...
  • Page 28 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part Number Machine Bed AGB81040 Revolving Arm AGB90025 Revolving Arm Locking Pin AFB90029 Revolving Arm Locking Bushing AFB90029 (Not Shown) Revolving Arm Locking Lever AGB80027 (Not Shown) Screw (M10) 81110110 Countervise...
  • Page 29 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part Number Dowel (M8 X 30) 81132081 Hex Nut (M8) 81600008 Vise Thread AFB80034 Quick Lock Vise Spring AFB80035 Burr-free Transverse Plate AFB90058 Burr-free Plate AFB90059 Burr-free Plate 110B0038 Socket Cap Screw (M8-1.25 x 20mm)
  • Page 30 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part Number Ring Nut (GUK M25 x 1.5) 81700025 Eccentric Hinge Pin AFB90026 Eccentric Bushing AFB90028 Bearing (6202) 84101031 Hex Nut (M20) 81600020 Head Lever 120C0004 Head Lever Handgrip 44600001 Bushing...
  • Page 31 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part Number Worm Screw AFB90015 Worm Screw Spacer AFB90017 Ring (Seeger Ø 621) 82610000 Bearing (3305) 84301010 Ring (SM 32527) 301959 Rings (OR 4312) 302920 Front Motor Flange ABG90004 Motor Shaft (Rotor) AFB90008...
  • Page 32 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part Number Pneumatic Vise Cylinder 78200096 Vise Cylinder Repair Kit 86045005 Vise Casting 303092 Cylinder Guard Upper Adjustable Stock 110H0016 Lower Adjustable Stop 110H0016 Coolant Pump 302666 Cutting Head Cylinder 200H0006...

  • Page 33: Ordering Information

    Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part Number Transformer 100VA 73322011 Auxiliary Contact 72610001 Remote Control Switch 73401001 Auxiliary Relay 72300000 Fuse Cartridges 73142005 Head Descent Speed Adjustment 88900007 Service Tool Bag – Complete 53100004 Parts not shown in exploded view Please contact factory for current prices.
