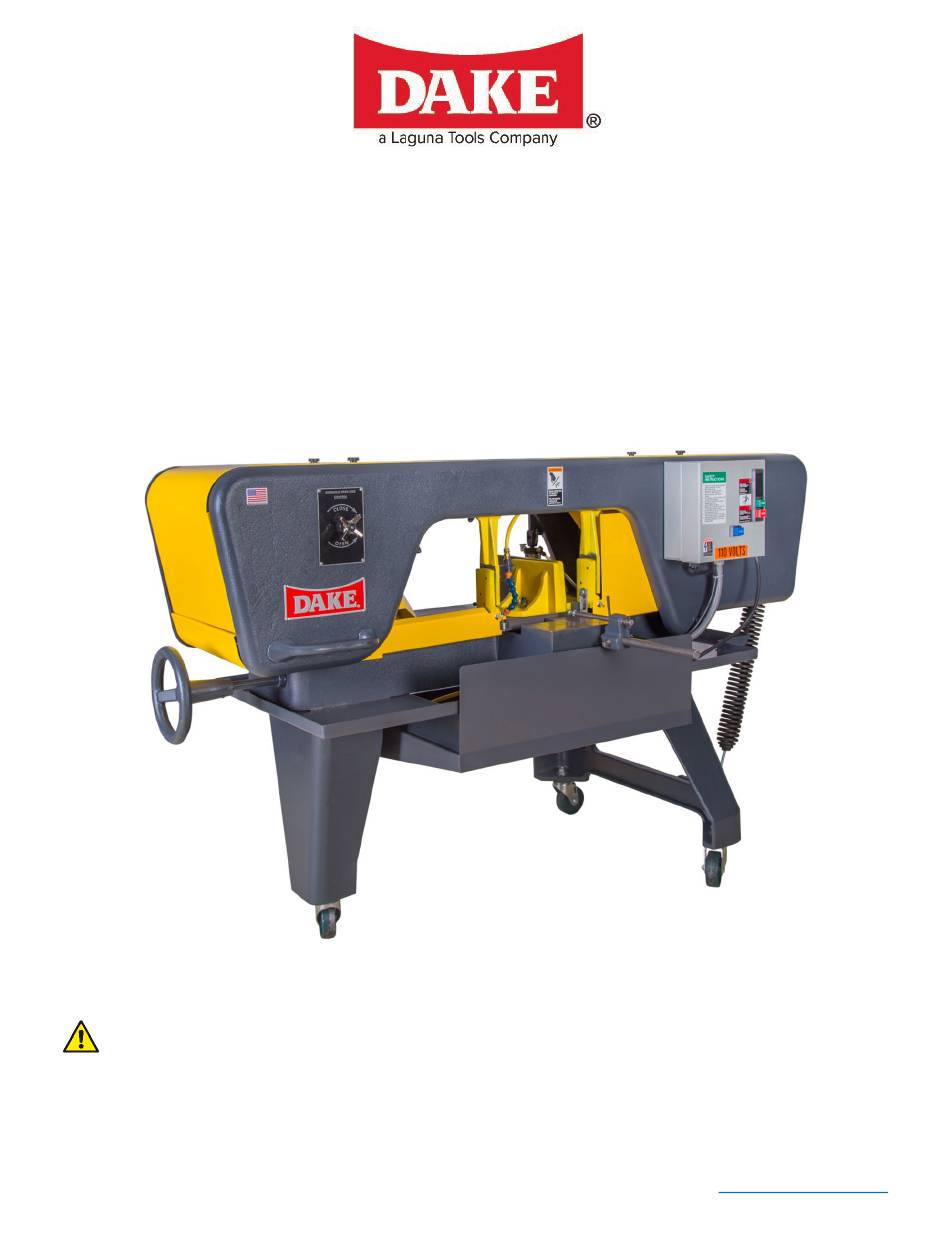

DAKE HORIZONTAL BANDSAW
Model JH10W1
INSTRUCTIONAL MANUAL
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools DAKE JH10W1
Summary of Contents for Laguna Tools DAKE JH10W1
- Page 1 DAKE HORIZONTAL BANDSAW Model JH10W1 INSTRUCTIONAL MANUAL Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Table of Contents DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SPECIFICATIONS ....................5 SAFETY ........................ 6 INSTALLATION ..................... 7 UNCRATING ....................7 LEVELING ....................7 OPERATION ...................... -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices. (b) Defects or malfunctions resulting from improper installation or failure to operate or maintain the unit in accordance with the printed instructions provided.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from DAKE! If you are not entirely satisfied with your purchase, we are here to help. Returns All DAKE manufactured / distributed machines, parts and couplings include a 30-day return option. -
Page 6: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS JH10W1 JH10W3 Number 985017 985018 Voltage 110V/220V, Single Phase 220V/440V, 3-Phase Capacity 10” rounds, 18” flats Horsepower 1 HP Max Blade Speed 270 fpm Blade Width 1” Blade Length 137”... -
Page 7: Safety
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFETY Employer is responsible to perform a hazard/PPE assessment before work activity. Label Part No. Label Part No. Label Part No. Label Part No. 76462 84604 84605 84395 Follow recommended precautions and safe operating practices. Carefully read all safety messages in This machine is intended to be operated these instructions and on your saw’s... -
Page 8: Installation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com INSTALLATION UNCRATING: Remove crating carefully. For ease in handling do not remove from skid until machine has been moved to its approximate location. LEVELING: Position machine level, shim under legs if necessary. Wet machines should be more carefully leveled to be certain that the coolant intake remains submerged. -
Page 9: Blade Selection
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Stock Stop Guide: Consisting of a stock stop assembly and a mounting bar installed in the tip-off block on front of the machine. The stop assembly can be moved along the bar to indicate correct length for duplicate cuts. -
Page 10: Blade Removal
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com c. Hook Tooth – Similar to skip tooth except teeth have positive rake. Effective in sawing non-ferrous metals and large ferrous sections when heavy feed pressures are required. 3. Tooth Spacing a. -
Page 11: Blade Tracking Adjustment
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 7. Check to see that the blade is positioned correctly and tighten screw. Consult blade manufacturer for proper PSI tension. 8. Install blade cleaning brushes and guards that were removed earlier. BLADE TRACKING ADJUSTMENT Saw blade should track on each wheel with the back of the blade up to, but not riding on the wheel flange. -
Page 12: Blade Guide Adjustment
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com BLADE GUIDE ADJUSTMENT Note: The following instructions are for one guide arm; procedure is same for both arms. Left hand guide arm is shown to the right. 1. Loosen nut (A, on right) and turn eccentric axle (B) until there is no light gap between rollers and blade…do not pinch the blade. - Page 13 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 4. Move the adjustable guide arm as close as possible without contact to the work to provide maximum blade rigidity. 5. Check the blade tension, adjust if needed. Consult blade manufacturer for proper PSI tension.
-
Page 14: Maintenance
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE FEED CYLINDER BLEEDING Air trapped in the hydraulic cylinder can cause the down fed of the machine head to be erratic or “bouncy”. Before taking corrective steps observe CAUTION note. CAUTION: UNDER NO CIRCUMSTANCES SHOULD THE HYDRAULIC TUBING CONNECTIONS BE LOOSENED OR DISCONNECTED WITH THE MACHINE HEAD IN THE UP POSITION. -
Page 15: Troubleshooting
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING Blade not cutting straight ↓ Blade breaking/teeth stripping ↓ Premature blade dulling ↓ Back of blade swaging over ↓ Pieces breaking away from the back of the blade ↓... -
Page 16: Electrical Diagram
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL DIAGRAM 985017/985018 REV122021... - Page 17 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 985017/985018 REV122021...
- Page 18 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 985017/985018 REV122021...
-
Page 19: Exploded View & Parts List
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW & PARTS LIST Item Part Name Part Number Front Frame 10002-01 Rear Frame 10003-01 10001-00 Pivot Bar 10066-00 Shaft Locking Collar 13010-08 Right Leg 10004-02 Left Leg 10005-02 Balance Spring –... - Page 20 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com PARTS NOT ILLUSTRATED Description Part No. Motor, 110/230 Volt, 60 Hz Single-Phase, 1 H.P. 10079-07 Motor Pulley – 5/8” Bore (1 Used on Old Style) 10042-10 Drive Belt 10077-10 Pulley Guard 10223-10A Motor Mounting Bracket...
-
Page 21: Other Voltage Models
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com OTHER VOLTAGE MODELS Bandsaw Sub-Assembly same for 985017-1, 985017-2, 98518-2, & 985018-4. Parts that differ from 110V Model below: 985017-2 220V Single Phase Model Part Name Part Number Motor, 110/230 Volt, 60 Hz Single-Phase, 1 H.P. 10079-07 Wire Nut 300171... -
Page 22: Wheel Assemblies
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com WHEEL ASSEMBLIES Item Description Part No. Idle Wheel/Frame Mounting Bracket (Outboard) 10064-09 Idle Wheel Assembly 10510-04A Idle Wheel Assembly (Old Style) 10510-04 Idle Wheel Only 13035-01A Idle Wheel Only (Old Style) 13035-01 Wheel Axle 10062-00... -
Page 23: Gearbox Assembly
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com GEARBOX ASSEMBLY Item Description Part No. Gear Case Complete 10544-00A Gear Case Complete (Old Style) 10544-00 Bearing Cap 5047-00 Cap Gasket 5138-00 Bearing 5073-00 Gear Case 5044-00 Dowel Pin 3922 Bearing 5072-00... -
Page 24: Hydraulic Assembly
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com HYDRAULIC ASSEMBLY Item Description Part No. Hydraulic Assembly (Includes Cylinder & Control Valve Assembly) 10530-10 Cylinder Assembly Only 10530-09 Cylinder Base 10031-00 Fiber Seal 10203-03 Tie Rod 10205-02 Spring 5129-00 Spring –... -
Page 25: Guide Arm Assembly
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com GUIDE ARM ASSEMBLY Item Description Part No. 1” Guide Arm Assembly Complete – Stationary – Right 10519-11A 1” Guide Arm Assembly Complete W/ Coolant Nozzle – Left 10519-10AW Guide Arm (LH/RH) 10019-10 Guide Holder 10020-10... -
Page 26: Vise Assembly
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com VISE ASSEMBLY Item Description Part No. Hold Down Block (S/N 10962) 10007-00 Vise Lift 10099-00 Handle 1/4”-20 x 2” 5200-00 Movable Vise Jaw (Bolt – Part No. 43383) 10008-00 Stationary Vise Jaw (Bolt –...
