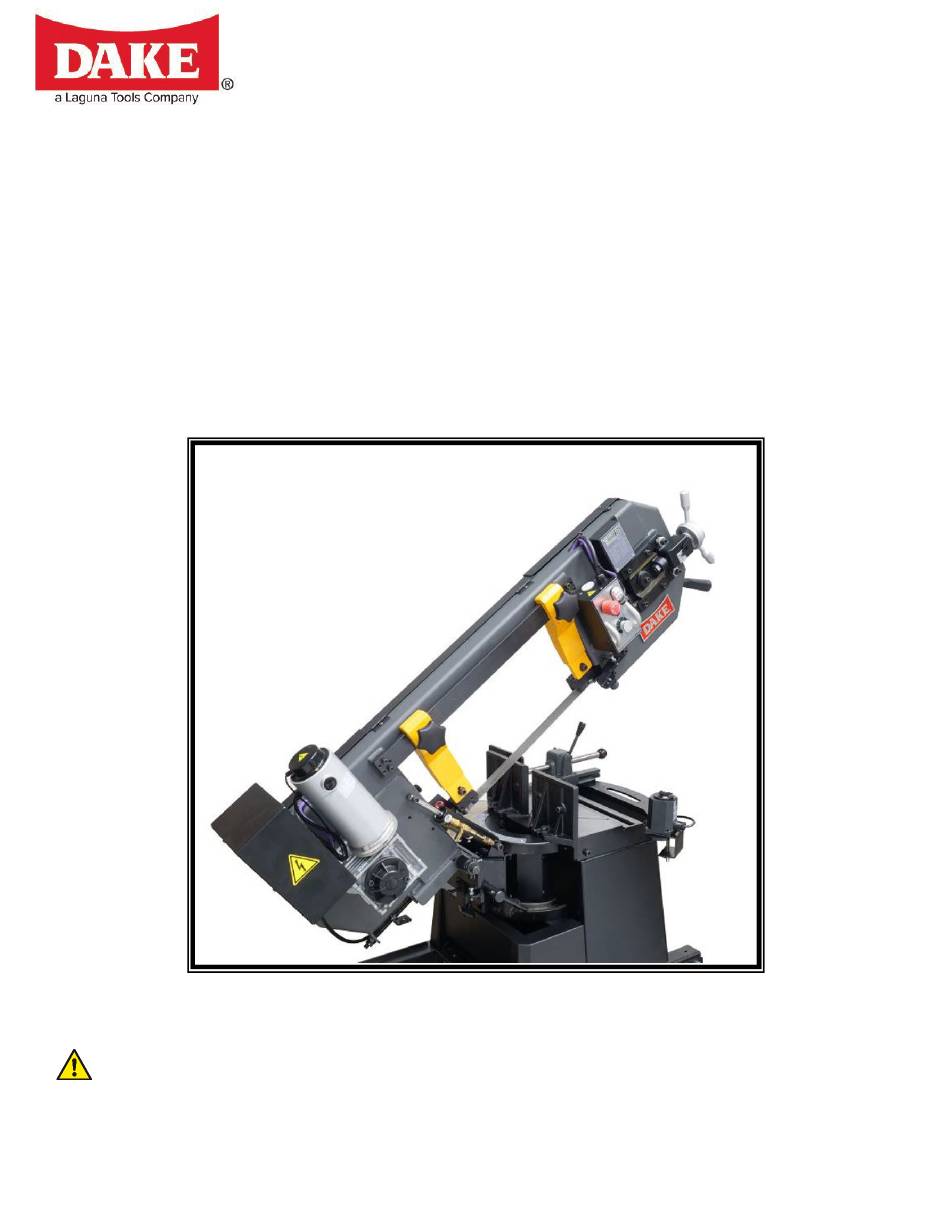

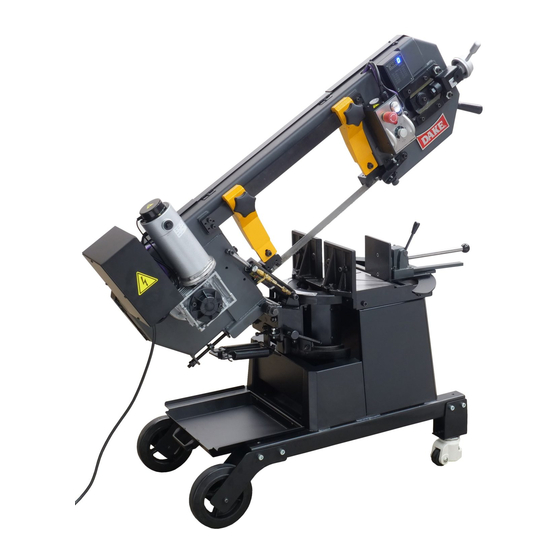

- Page 1 DAKE DUAL MITERING BANDSAW SE-810 INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation 1809 Industrial Drive www.dakecorp.com Grand Haven MI, 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ..............3 RETURN & REFUND POLICY ..................5 SPECIFICATIONS ......................6 SAFETY WARNINGS ..................... 7 MAIN MACHINE ......................10 SET UP ........................11 INSTALLATION:.................... -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices. (b) Defects or malfunctions resulting from improper installation or failure to operate or maintain the unit in accordance with the printed instructions provided.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These policies are valid from the date of final shipment to the end user. -
Page 6: Specifications
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Features Dimensions Model: SE – 810 Variable Blade Speed: 65 – 250 FPM Blade Wheel Diameter: 11 5/8” (295mm) Blade Size: 1” x 118” Table Height: 27” 900W 5A 110V 1HP Motor: DC DIRECT DRIVE ±... -
Page 7: Safety Warnings
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com SAFETY WARNINGS WARNING: FAILURE TO FAOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY As will all machinery there are certain hazards involved with operation and use of the machine. Using the machine with respect and caution will considerably lessen the possibility or personal injury. - Page 8 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com • Always wear eye protection. Refer to ANSLZ87.1 standard for appropriate recommendations. Also use face or dust mask if cutting operation is dusty. • Do not overreach. Always keep proper footing and balance. •...
- Page 9 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com WORKING ENVIRONMENT • Keep work area clean. Cluttered areas and benches invite accidents. • Do not use in dangerous environment. Do not use power tools in damp or wet locations or expose them to rain.
-
Page 10: Main Machine
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com MAIN MACHINE REV112020 983113... -
Page 11: Set Up
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com SET UP This machine weighs 530lbs. Transport to desired location before unpacking, please use lifting jack. Transportation after unpacking, please use heavy duty fiber belt to lift up the machine. Always keep proper footing and balance while moving this machine. -
Page 12: Operation Steps
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com OPERATION STEPS: • Before use, make sure that the position of the lower limit screw (B) is correct. • Make sure that the lower limit screw (A) of the saw blade is at the tooth surface of the blade below the work surface. -
Page 13: Operation Of Hydrualic Cylinder
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com the speed of the saw bow and start to approach the workpiece surface to be cut (when the bandsaw is brand new, please reduce the speed as much as possible The cutting speed of the saw is about 5-10 minutes. -
Page 14: Operational Controls
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com OPERATIONAL CONTROLS • Emergency button ©. When the emergency button is pressed, the saw belt will stop. (When returning power, turn © to make it jump) • Power button (S), ON / OFF / Power lamp indication, 3 functions. -
Page 15: Adjustments
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com ADJUSTMENTS TOOTH SELECTION: For maximum cutting efficiency and lowest cost per cut, it is important to select the blade with the right number of teeth per inch for the material being cut. The material size and shape dictate tooth selection. -
Page 16: Blade Speed
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Determine the average width of cut by dividing the area of the work piece by the distance the saw blade must travel to finish the cut. Select the tooth pitch on the ring marked with the tubing and structural shape which aligns with the average width you are cutting. -
Page 17: Speed Feed Material Guide
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com SPEED FEED MATERIAL GUIDE: Blade Speed Material Alloy ASTM No. FT/MIN M/MIN 173, 932 330, 365 623, 624 230, 260, 272 280, 264, 632, 655 Copper Alloy 101, 102, 110, 122, 172 1751, 182, 220, 510 625, 706, 715, 934 1117... -
Page 18: Installing Blade
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com INSTALLING BLADE: 1. Make sure that the main power switch is off. 2. Raise the saw so that the blade is 1” above the fixed vise. 3. Open bow cover (B) (C) (D) remove the tooth cover (E) and remove the steel brush wheel (F) that is in contact with the bandsaw. -
Page 19: Vertical Saw Position
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com VERTICAL SAW POSITION: 1. Make sure that the moving wheels of the machine are fixed, and the machine will not move. 2. Close the on-off valve of the hydraulic cylinder and put the bow on the table with the handle (A), so that the saw belt is raised to an angle of about 40 degrees with the table. -
Page 20: Saw Adjustments
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com SAW ADJUSTMENTS 1. Raise the saw to the upward position and the bandsaw roughly ½” high from the workpiece as shown in (Fig. 4). 2. Remove the 90º angle ruler (C) and lean it against the workpiece surface. - Page 21 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com 9. Lift the saw bow after completion, as shown in Fig.4, loosen the rotating seat mechanism, adjust the saw belt and fix the vise surface at a 90-degree angle, and use the zero-point fixing frame screws to perform zero adjustment.
-
Page 22: Maintenance
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE Below is a useful maintenance reference to use that can be repeated throughout the year to keep up to date on general maintenance for your machine. Daily Maintenance Weekly Maintenance Monthly Maintenance Yearly Maintenance... -
Page 23: Troubleshooting
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING Symptom Possible Cause Corrective Action 1) Materials loosen in vise. 1) Clamp work securely. 2) Incorrect speed or feed. 2) Adjust speed or feed. 3) Blade teeth spacing too large. 3) Replace with a small tooth spacing 4) Material too coarse. - Page 24 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com 1) Tooth too coarse for work. 1) Use finer tooth blade. 2) Too heavy pressure; too 2) Decrease pressure, increase speed Teeth Ripping from slow speed. 3) Clamp work piece securely Blade.
-
Page 25: Circuit Diagram
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com CIRCUIT DIAGRAM REV112020 983113... - Page 26 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com REV112020 983113...
-
Page 27: Exploded View & Parts List
Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW & PARTS LIST REV112020 983113... - Page 28 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Reference No. Part No. Dake Part No. Description Specification 163010 Stand 163010-2 Guide plate MHS328 Cap Screw M6x16L MW004 Washer 1/4"x19xt1.5mm 163015 Vise base MHS259 Cap Screw M10-1.5Px25L HW106 Spring Washer MHW006 Washer...
- Page 29 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Reference No. Part No. Dake Part No. Description Specification MHS260 Cap Screw M10x30L MHS258 Cap Screw M10-1.5Px20L HW106 Spring Washer MHS635 Cross hole screw M5x10L 163014 Cover 163054 Angle ruler MHS635 Cross hole screw M5x10L...
- Page 30 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Reference No. Part No. Dake Part No. Description Specification 163036 Cylinder bracket MHS243 Cap Screw M8X25L MW016 Washer 5/l 6"x23xtlmm MHN005 Hex. Nut MW016 Washer 5/l 6"x23xtlmm 163069 Slwre 18130BT Hydraulic cylinder MHS252...
- Page 31 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Reference No. Part No. Dake Part No. Description Specification 163032A-1 Wheel bracket 163032A-2 Wheel bracket HS072 Hex. Head Screw M10x90L MHW006 Washer M10x20xt2 MHN006 Hex. Nut 163034A Wheel MHS243 Cap Screw M8x25L MHW105...
- Page 32 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Reference No. Part No. Dake Part No. Description Specification 211-1 HW104 Spring Washer 211-2 MHS034 Hex. Head Screw M6x20L HK114 6*6*40 198214 Gasket MHW106 Spring Washer MHS059 Hex. Head Screw M10x25L Prive Shaft 198037...
- Page 33 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Reference No. Part No. Dake Part No. Description Specification MHS240 Cap Screw M8x10L 121011 Washer MHS242 Cap Screw M8x20L 0.9X27X2997m 163011 Bandsaw 189017 Idler Wheel CA6205LLU Bearing 6205 163030 Shaft 121011 Washer...
- Page 34 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Reference No. Part No. Dake Part No. Description Specification 163009-2 Board B MHS635 Cross hole screw M5x10L MW049 Washer 3/16"x12xt1mm MHN003 Hex. Nut M5x10L MHS637 Cross hole screw M6x15L MW004 Washer 1/4"x19xt1.5mm...
- Page 35 Dake Corporation 1809 Industrial Park Drive Grand Haven, MI 49417 www.dakecorp.com Reference No. Part No. Dake Part No. Description Specification Hex. Headless HS422 M6-1.0Px10L Screw Hex. Headless HS422 M6-1.0Px10L Screw CA6082RS Bearing 608-2RS 121061 Bearing Shaft 189019 Eccentric Guide 189018 Eccentric Guide CA6082RS Bearing...
