Summary of Contents for Gorenje PVK42K-1V
- Page 1 Instructions for use, installation, and connection Combined and gas built-in cooking hob PVK42K-1V / G6N41IX PVK42K-1V / G6N41IB KVK41K-1V / K6N21IX...
- Page 2 COMBINED AND GAS BUILT-IN COOKING HOB Dear customer! Combined and gas built-in hob is intended for use in households. Our products are packed in environment-friendly materials which can be recycled, disposed of, or destroyed without imposing any burden on the environment. Instructions for use Instructions for use are intended for the user.
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT - READ BEFORE USING THE APPLIANCE ......... 4 Safety percautions ........................4 Warnings............................4 APPLIANCE DESCRIPTION ..................6 Control knob ........................7 COOKING ZONES ......................8 Before using the appliance for the fi rst time ..............8 Important warnings ........................8 Cookware ............................8 Energy saving..........................9 Important warnings ........................9 Cookware ............................9... -
Page 4: Important - Read Before Using The Appliance
IMPORTANT - READ BEFORE USING THE APPLIANCE Safety percautions • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 • Before installing and connecting the appliance, make sure the local connection conditions and characteristics (gas type and pressure) are compatible with the appliance set-up. • The set-up of the appliance is specifi ed on the rating plate. • The appliance is not connected to a fl ue or a ventilation opening. The appliance should be installed and connected in compliance with the relevant regulations on connection.
-
Page 6: Appliance Description

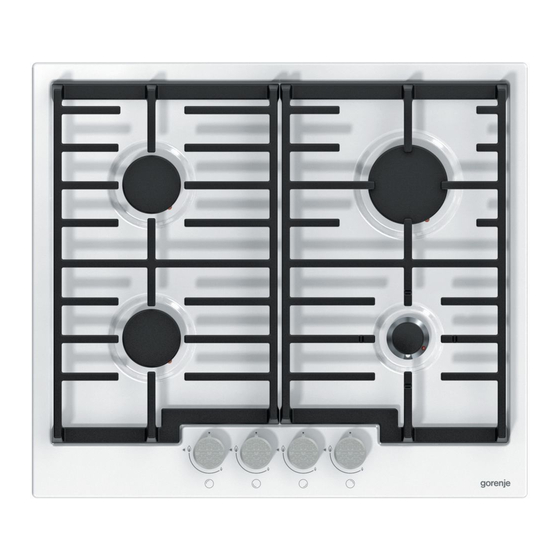

APPLIANCE DESCRIPTION (equipment - depending on the model) Upper side of a combined cooker with gas cooking zones Type PVK4... Upper side of a combined cooker with gas and electric cooking zones Type KVK4... 1. Cooking zone rear left 4. Cooking zone rear right 2. -
Page 7: Control Knob
Control knob (depending on the model) Electric 1- 6 power levels 1- 9 power levels gas valve is closed maximum power minimum power... -
Page 8: Cooking Zones
COOKING ZONES A) Electric cooking zones Before using the Turn on the cooking zones for 3 to 5 minutes and select the appliance for the fi rst maximum power level; some fumes may be discharged from time the hob. This way, the protective cover on the cooking hob will reach its maximum solidness. -
Page 9: Energy Saving
Energy saving • Pan bottom diameters should match the diameter of the cooking zone. If the pan is too small, some heat is wasted; furthermore, using a too small pan can damage the cooking zone. • Whenever possible given the cooking process, use a lid. •... -
Page 10: Operating The Electric Cooking Zones
• For combustion, the gas also needs air. If a pan is too large, air supply to the burner is insuffi cient; as a result, combustion eff ect is lesser. Grid extension (only available with some models) Use the extension when using a pan of a smaller diameter. Place the extension on the grid above the auxiliary burner. -
Page 11: Operating The Gas Burners
Rapid cooking zones (only available in some models) diff er from the conventional cooking zones by their maximum power which allows them to heat up faster. These cooking zones are indicated by a red dot in the middle; after a while, due to repeated use and cleaning, this dot may disappear. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Clean the appliance using warm water, liquid detergent, and a soft cloth. Do not use any abrasive or sharp utensils or other objects. Burnt or dried food residues should be moistened using a damp cloth and softened with appropriate detergent. Stainless steel parts should be cleaned using special- purpose detergents. -
Page 13: Gas Cooking Zones
to yellow. This phenomenon is a result of physical processes. Yellow spots can be restored by conventional metal cleaning detergents. Do not use aggressive utensils for cleaning the dishes, as these will scratch the rings. Gas cooking zones To clean the grid, cooking hob surface, and parts of the burner, use hot water with some dishwashing detergent. -
Page 14: Special Warnings And Fault Reporting
SPECIAL WARNINGS AND FAULT REPORTING During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet. Unauthorized tampering with and repairs of the kitchen range (cooking hob) can result in electric shock or short circuit;... -
Page 15: Installation
If the burner cover looks Regular dirt Clean the burner covers with unappealing... a metal care detergent. If the problem persists despite observing the instructions above, call an authorized service technician. Elimination of any errors or warranty claims that resulted from improper connection or use of the appliance is not covered by our warranty. -
Page 16: Kitchen Worktop Cutoff Dimensions
Kitchen worktop cutoff Type KVK4.., PVK4... dimensions min 40 106-109 min 40 488-490 min 600 min 50 558-560 • Only type EVP4.., EVP3.., EVP2.., ovens fi tted with a cooling fan may be installed underneath this cooking hob. • Before installing an oven, the rear wall of the kitchen furniture element should be removed in the area of the cooking hob cutout. - Page 17 Type KVK4.., PVK4.. • Attach the supplied adhesive seal on the lower edge of the cooking hob (do not glue the gasket over the front support bracket).
-
Page 18: Connecting The Appliance To The Power Mains
CONNECTING THE APPLIANCE TO THE POWER MAINS Important warnings • The appliance may only be connected by an authorized skilled technician. • Electric system protection should comply with all relevant regulations. • The connection clips can be accessed when the connection clip covers are opened / removed. - Page 19 • Connection cable on the back of the appliance should be led in such way that it does not touch the appliance back wall, as this part will get very hot during operation. 230V~ NOTE: Connection bridges are already installed on their respective places on the clip.
-
Page 20: Connecting The Cooking Hob To The Gas Supply
CONNECTING THE COOKING HOB TO THE GAS SUPPLY Important warnings • The appliance must be connected in compliance with all relevant regulations, and it may only be used in well ventilated / aerated rooms. Before connecting or using the appliance, please read the instruction manual. •... -
Page 21: Adaptation To A Diff Erent Type Of Gas
Gas supply connection plug A EN ISO 10226-1 / -2 or EN ISO 228-1 (Depending on the country-specifi c connection regulations.) connection plug B Non-metal gasket with thickness of 2 mm C Pipe adapter for liquid gas (Depending on the country- specifi... -
Page 22: Adjustment Elements
Triple burner 5 Nozzle Adjustment elements To leave the adjustment elements accessible, please observe the following instructions: • Remove the support grid and burner covers with respective crowns. • In double burners, adjustment elements are accessible behind the main nozzle protective plate. •... -
Page 23: Nozzle Table
NOZZLE TABLE Gas type, pressure Auxiliary Normal Large burner Double burner burner burner Natural gas H Rated power 0,36 0,46 0,76 1,56 Wo=45,7÷54,7 MJ/ m (kW) Natural gas E, E+ Wo=40,9÷54,7 MJ/m consumption 95,21 34,4 180,9 43,8 285,64 72,4 333,2 148,5 G20, (l/h) p=20mbar... -
Page 24: Technical Characteristics
WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE. Instructions for use of the appliance can also be found on our website at www.gorenje.com / < http://www.gorenje.com /> PVK_KVK 62,42K en (11-17)
