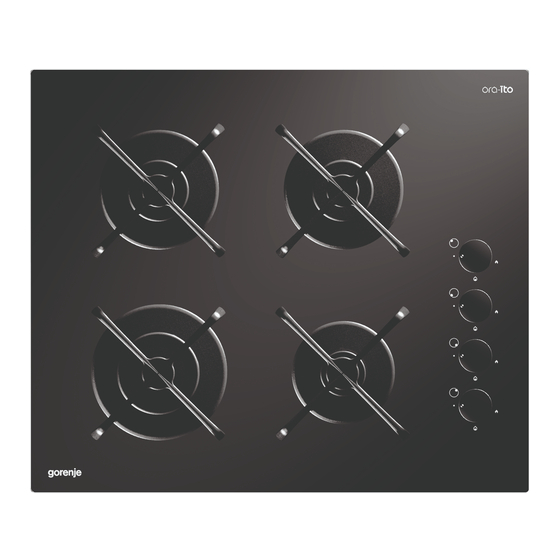

Gas built-in cooking hob
Dear Buyer,
This electric built-in cooktop is manufactured for
household use.
Our appliances are packed in the environmentally
friendly materials which may be recycled,
deposited or destroyed without any hazard to the
environment. Such packaging materials are also
labeled accordingly.
Once the life cycle your appliance is over, make
sure not to pollute the environment, and deliver it
to the authorized collectors of old household
appliances
Safety precautions ........................................... 4
Technical information .................................... 5
Description of the appliance........................... 5
Gas burner control.......................................... 6
Cleaning and maintenance ............................. 8
glass hob............................................................ 8
Instructions for Use, Building- in and Connecting
Instructions for use
Instructions for use have been prepared for the
user, and describe the appliance and the way it is
handled. These instructions are intended for
various types of the appliance, so you may find
some descriptions for the functions that your
particular appliance may not have.
Instructions for connecting the
appliance
The connections must be carried out in
accordance with the instructions supplied with the
appliance, and in compliance with the recognized
standards.
Connections must be performed by qualified
personnel only.
Rating plate
Rating plate with the basic information is fixed to
the bottom side of the hob.
Troubleshooting guide .................................... 9
Installation instructions ................................ 10
Caution !
Nozzle chart - glas ceramic hob
170687
GB IE MT
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gorenje GHS64-ORA-S
Summary of Contents for Gorenje GHS64-ORA-S
-
Page 1: Table Of Contents
170687 Gas built-in cooking hob GB IE MT Dear Buyer, Instructions for use This electric built-in cooktop is manufactured for Instructions for use have been prepared for the household use. user, and describe the appliance and the way it is handled. -
Page 2: Safety Precautions
170687 Safety precautions • To avoid any possible hazard, the appliance Glass ceramic hob may be installed by qualified personnel only. • Operation of gas burners normally releases Wipe the glass ceramic surface with moist cloth heat and humidity into the room, so that the and some dishwashing detergent for manual location in which the gas cooker is installed wash. -
Page 3: Technical Information
170687 Technical information Type PVK61S-1V GCS64C GHS64SC-S GHS64SC-W GHS64SC-A GHS64-ORA-S Dimensions of the appliance 41/600/530 (H/W/D) mm AC 230 V Electrical connection AC 230 V, 50 Hz Operating voltage Gas burners B = large burner A = normal burner A1 = auxiliary burner... -
Page 4: Gas Burner Control
170687 Gas burner control Cooking burners are controlled by the relevant crown cap control knobs. Heating power is indicated on the knobs by the large flame symbol and the small flame symbol. Always turn the knob over the large flame position towards the small flame position and burner crown back. -
Page 5: Ignition And Operation Of Burners
170687 gas faucet is closed Ignition and operation of burners maximum power Gas burners may be ignited with the electric minimum power ignition device, built-in adjacent to each burner (specific models only). To ensure safe use of small diameter dishes, place the supplied extra wire grid upon the auxiliary burner if necessary. -
Page 6: Cleaning And Maintenance
170687 Cleaning and maintenance • Clean the crown and the crown cap. Always The appliance should be cleaned with warm water, liquid detergent and soft cloth. Never use keep the gas outlet nozzles on the burner aggressive cleaners and sharp objects. Burned or crown free of dirt. -
Page 7: Troubleshooting Guide
170687 Stubborn and burnt stains are removed with Discoloring of ceramic-glass hob has no effect special ceramic-glass scraper. Be careful, whatsoever on its operation and stability. In most however, not to touch the hotplate surface with cases, it appears as the consequence of burnt in the scraper handle (Fig. -
Page 8: Installation Instructions
170687 Installation instructions Caution ! Note! On some appliances the gasket is already • To avoid any possible hazard, the appliance installed! may be installed by qualified personnel only. • Panels and furniture lining of the kitchen cabinet receiving the hob must be treated with temperature resistant adhesives (100°C), otherwise they might be discoloured or deformed because of inadequate temperature... - Page 9 170687 Connecting the cooktop to the mains power supply Open the connector by means of screwdriver and slightly push it downwards. Electric connection may be carried out by qualified service personnel only! Wrong connection may permanently damage parts of the appliance and render your warranty void! Prior the connection make sure the voltage from the rating plate agrees with the existing mains...
-
Page 10: Connecting The Cooktop To The Gas Supply
170687 Connecting the cooktop to the gas supply Safety precautions Connections • The appliance must be connected in • The bottom of the appliance is equipped with accordance with the standing ragulations, and it the liquefied gas connection with an exterior may be used only in well ventilated rooms. -
Page 11: Conversion To Another Type Of Gas
170687 Conversion to another type of gas • For the conversion procedure the appliance need not be pulled out from its location. • Before starting to work on conversion, disconnect the appliance from the mains and shut the gas inlet valve. •... - Page 12 170687 Nozzle chart - glas ceramic hob Gasart Auxiliary burner Normal burner Large burner Wobbezahl 0,32 1,75 0,45 0,75 Natural gas H Nominal heat p=20 mbar input (kW) 95,21 30,47 166,62 42,85 285,64 71,41 Consumption (l/h) Wo=40,9÷54,7 MJ/m Nozzle num. •...
