Gorenje IS756ST Detailed Instructions For Use
  1. Manuals
  2. Brands
  3. Gorenje Manuals
  4. Hob
  5. IS756ST
  6. Detailed instructions for use

Gorenje IS756ST Detailed Instructions For Use

Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
DETAILED
INSTRUCTIONS FOR
USE OF
INDUCTION HOB
www.gorenje.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS756ST and is the answer not in the manual?

Questions and answers

Brandon
May 17, 2025

Is 756 st dishwasher no power could be thermal fuse blow

User image 6828510073240
0

Related Manuals for Gorenje IS756ST

Summary of Contents for Gorenje IS756ST

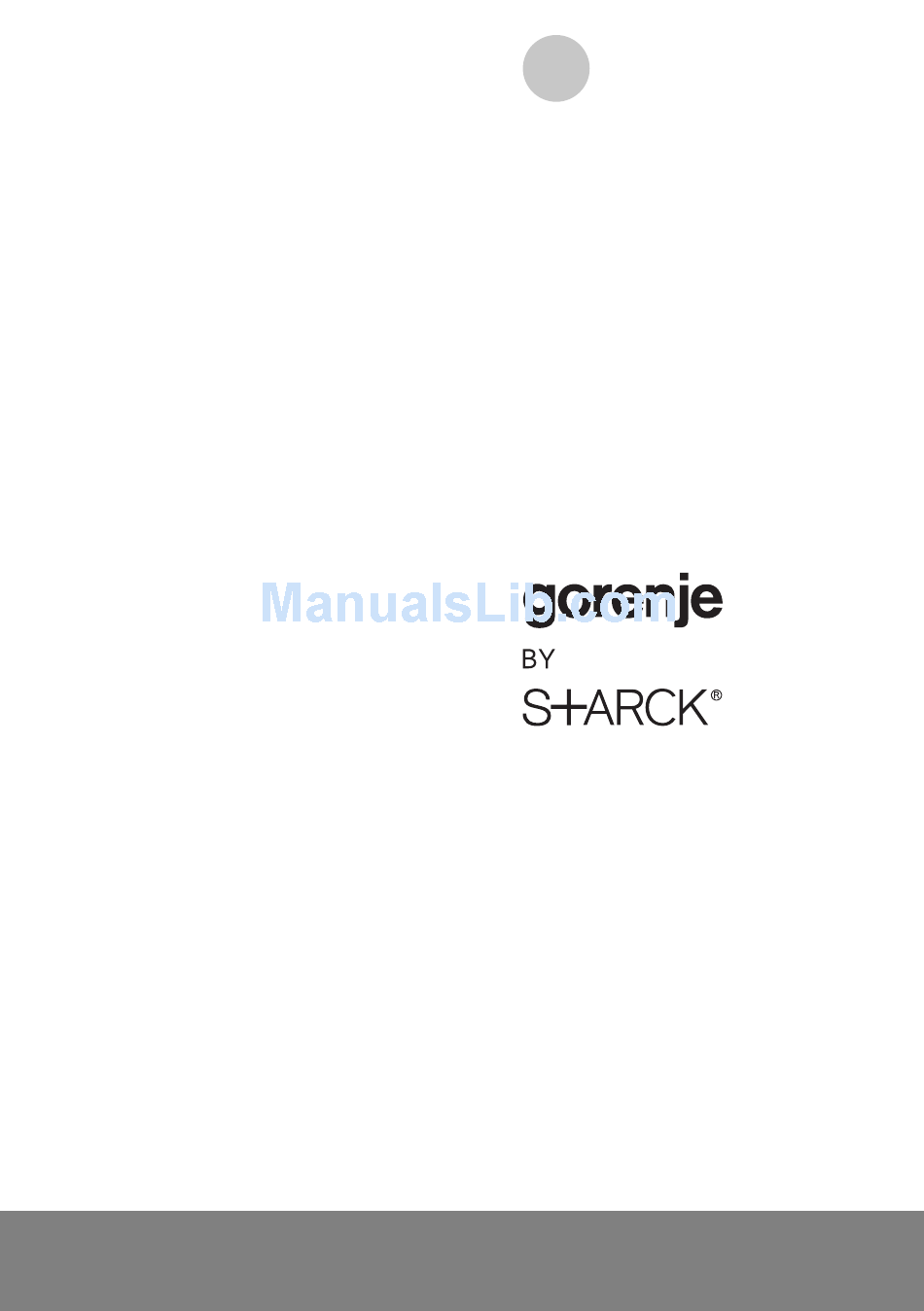

  • Page 1 DETAILED INSTRUCTIONS FOR USE OF INDUCTION HOB www.gorenje.com...
  • Page 2 Save the manual together with the appliance for an eventual further use. You can find this manual for use also on the web site: www.gorenje.com / <http://www. gorenje.com/> Important information Tips, remarks...

  • Page 3: Table Of Contents

    CONTENT INTRODUCTION IMPORTANT INFORMATION, INSTRUCTIONS AND RECOMMENDATIONS DESCRIPTION DESCRIPTION AND OPERATION OF APPLIANCE 11 THE OPERATION OF APPLIANCE OPERATION 18 ERROR MESSAGES 19 THE PRINCIPLES OF USE OF INDUCTION HOB MAINTENANCE 20 CLEANING AND MAINTENANCE RECLAMATION 21 CLAIMS 22 METHOD OF USE AND LIQUIDATION OF PACKAGING 23 LIQUIDATION OF APPLIANCE AFTER FINISHING OF USE INSTALLATION 24 INSTRUCTIONS FOR INSTALLATION...

  • Page 4: Important Information, Instructions And Recommendations

    IMPORTANT INFORMATION, INSTRUCTIONS AND RECOMMENDATIONS SAFETY MEASURES This appliance can be used with children older then 8 years and persons with decreased physical or mental ability or lack of experience and knowledge only in cases, when they are under supervision or when they were introduced to the use of appliance and they understand the possible dangers.
  • Page 5 WARNING: If the induction hob surface shows cracks, switch out the appliance and the circuit breaker for to prevent the electric shock. Never use steam or pressure cleaners for cleaning of the appliance. A danger of electric shock is threatening here. The appliance is not adapted for control with help of external timers or other special control devices.
  • Page 6 Please let confirm the date of provided installing in the Guarantee sheet. The appliance is designed exclusively for cooking. Do not use for other purposes, for instance for room heating. Do not put empty pots on the cooking zones. The electric feeding cables of the appliance or other appliances should not come in contact with the induction hob.
  • Page 7 The symbol on the product or on its packaging determines, that this appliance should not be given into the domestic waste. It should be delivered to a collection spot for recycling of electric and electronic appliances. You can help to prevent the negative influences to environment and human health (which could be caused with inappropriate liquidation) with correct liquidation of this appliance.

  • Page 8: Description And Operation Of Appliance

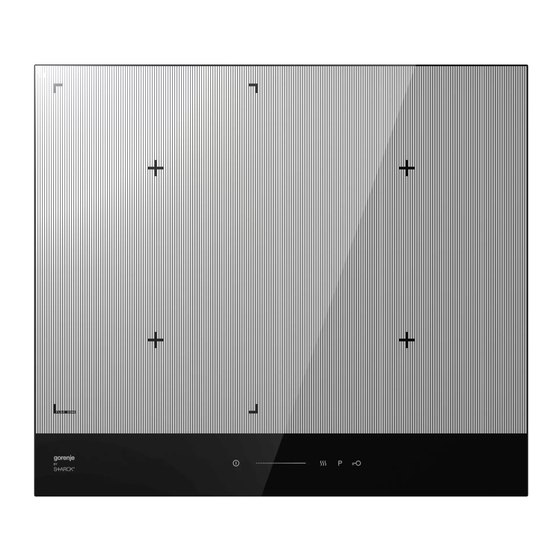

    DESCRIPTION AND OPERATION OF APPLIANCE Cooking zones Control panel – TOUCH CONTROL The appliance is intended for building in a cutout in working table of kitchen furniture. The sealing rubber glued on the border of induction hob prevents the in-leak of liquids under the induction hob .
  • Page 9 USUAL NOISE DURING OPERATION OF AN APPLIANCE WITH INDUCTION WARMING The appliance can emit noises as buzzing, whistling or cracking at switching on to maximum capacity or at certain utensils. These noises vanish after switching to lower capacity level. Also the quantity of cooked food and the method of cooking can affect the noise intensity.
  • Page 10 THE UTENSILS FOR INDUCTION COOKING ZONE The magnetism is used for heat generation at induction cooking. Therefore the utensils have to contain iron. Check it please with a piece of magnet, whether the utensil is magnetic. The bottom of a pot used for induction cooking zones can have a smaller or the same diameter as the surface of marked cooking zone, within the range of: from ø...

  • Page 11: The Operation Of Appliance

    THE OPERATION OF APPLIANCE Solely adults can operate this appliance and according to this manual. It is not allowed to leave small children without supervision near the appliance in operation. The electric induction hob is an appliance whose operation requires supervision. Persons with pacemakers or insulin pumps can operate the appliance with induction cooking zones when their implants correspond with the 89/336/CEE regulation only.
  • Page 12 CAUTION The sensor control is activated by touching a finger to appropriate symbol on glass ceramic hob. Therefore keep the control panel clean and dry. Do not put objects on the induction hob control panel. Do not allow the using or cleaning of plate's cooking surface by children. Prevent all unwished switching on of the appliance, for instance with pets! The set up parameters will be deleted after disconnection of induction hob form the power net.
  • Page 13 The cooking zones on the left as well as right side can be used as separate cooking zones (front and back ones) or united into the bridge mode of 200x400 mm (the type IS756ST only). The cooking zones on the left side for the type IS655ST can be used independently (the front or the rear) or united in to the s.c.

  • Page 14: Keep Warm Function

    THE INDUCTION HOB SWITCHING OFF Switching off the hob function can be done regardless the working state of the hob by touching “A” symbol. If the induction hob is switched off then a sound beeps and all the symbols are switched off (except when the residual heat is signaled on some display).
  • Page 15 THE ACTIVATION OF THE “KEEP WARM FUNCTION” Turn on the hot plate by pushing the A sensor. Choose the appropriate cooking zone or flexi-zone by pressing the C or D sensor. Activate the function of keeping food hot by pushing the F sensor. "...
  • Page 16 TIMER The induction hob is provided with a timer, which can work in two modes: a) minute reminder b) time control of cooking zone (the setting up of time interval for operation of cooking zone) STOPWATCH The timer is in stopwatch working mode. A sound signal sounds after finishing of operation.
  • Page 17 Luminous decimal points at other figures of performance levels symbolize the set off-time for a concrete zone. To clear the set timing of a cooking zone push the E sensor and then keep pushing it for c. 2 seconds.Examples of activities at setting on of capacity levels. Examples of activities at setting on of power levels Level 0 Switched off...

  • Page 18: Error Messages

    ERROR MESSAGES (E and error code are flashing) E1/E2 – UNSUITABLE SUPPLY VOLTAGE The connection of an induction hob and supply voltage must be checked. E3/E4/E5 - COOKING ZONE OVERHEATING The cooking zone could be overheated for instance at leaving an empty pot on a switched on cooking zone and in similar cases.

  • Page 19: The Principles Of Use Of Induction Hob

    THE PRINCIPLES OF USE OF INDUCTION HOB The induction hob fulfills at corresponding use according to these instructions the all requirements to similar home appliances. Switch off the main switch before the first use and clean the appliance orderly (for cleaning agents see the chapter “Cleaning and maintenance”).

  • Page 20: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Your induction hob is a nice looking and easy to operate. The following hints and recommendations can help you keep it as it is for a long time. RECOMMENDATIONS Do not use steam cleaner for cleaning of the appliance! Clean your glass ceramic plate regularly, after each use as the best.

  • Page 21: Claims

    CLAIMS If there is any defect on the appliance within the guarantee period, do not repair it self. Apply a claim in the shop in which you bought the appliance or at service representatives, mentioned in the Guarantee conditions. At applying of claim observe the text of Guarantee sheet and Guarantee conditions.

  • Page 22: Method Of Use And Liquidation Of Packaging

    METHOD OF USE AND LIQUIDATION OF PACKAGING Packaging paper - sale to waste collecting company - to collecting vessels for used paper - other reuse The packaging foil and PE backs - to collecting vessels for plastic...

  • Page 23: Liquidation Of Appliance After Finishing Of Use

    LIQUIDATION OF APPLIANCE AFTER FINISHING OF USE This appliance is marked in accordance with Directive 2012/19/EC on manipulation with waste from electric and electronic equipment - WEEE. This directive determines the unified European (EU) frame for collection and recycling of used equipment. The appliance contains valuable materials which should be reused.

  • Page 24: Instructions For Installation

    INSTRUCTIONS FOR INSTALLATION Solely company authorized to provide such activities may perform the installation of this induction hob and it should be installed in compliance with local standards and regulations. At installation of appliance the following steps should be provided from point of view of appliance: The checking of correct connection to electric power net, The function check of heating, control and regulation elements,...
  • Page 25 INSTALLATION DIMENSIONS If the hob is wider than the cupboard, with a worktop less than 49 mm thick, saw a cut- out in both sides of the cupboard, so the appliance is detached from the cupboard. Installation dimensions inside the cabinet X <...
  • Page 26 When the working table is thicker as 30 mm, then the shape of cut out on the place of cooling air output from the appliance should be modified according to the picture. Solely company authorized to provide such activities may perform the installation of this induction hob and it should be installed in compliance with local standards and regulations.
  • Page 27 A (mm) B (mm) C (mm) The rear wall of lower cabinet in the area of cut out has to be open, for to ensure the air exchange. The front reinforcement of furniture should be removed, for to enable of creation of opening for passage of air, at least in a height of 5 mm under the sink over the whole length of appliance.

  • Page 28: The Connection Of Appliance To The Power Mains

    THE CONNECTION OF APPLIANCE TO THE POWER MAINS The appliance must be connected to power mains with authorized body only. A switch has to be connected into the circuit before the appliance for disconnecting of appliance from the power mains and with minimal distance of disconnected contacts of 3 mm. This obligation is not necessary, when the supply cord is provided with a plug and this plug can be easily and without obstruction pulled out from the socket.
  • Page 29 CONNECTION...

  • Page 30: Technical Data

    TECHNICAL DATA Accessories Cleaning scrape Technical data Electric induction built in cooking plate IS655ST IS756ST Dimensions Total dimensions - W x D x H 595 / 520 / 60 mm 750 / 520 / 60 mm (H = built in depth)
  • Page 31 PRODUCT INFORMATION REGULATION (EU) NO 66/2014 Symbol Unit Value Value Supplier’s name or GORENJE GORENJE trade mark Model identification IS756ST IS655ST Type of induction Number of cooking zones and/or areas induction induction cooking EE electric cooking zones Heating technology zones and...
  • Page 32 MORA en (10-15)

This manual is also suitable for:

Is655st
