Summary of Contents for Gorenje Glass-ceramic built-in coking hob
- Page 1 Instructions for use, installation, and connection Glass-ceramic built-in coking hob...
-
Page 2: Table Of Contents
Glass-ceramic built-in cooking hob Dear customer! Glass-ceramic hob is intended for use in households. Our products are packed in environment-friendly materials which can be recycled, disposed of, or destroyed without imposing any burden on the environment. Instructions for use Instructions for use are intended for the user. They describe the appliance and its operation. -
Page 3: Important - Read Before Using The Appliance
Important - Read before using the appliance Safety percautions • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 • Do not store temperature-sensitive items underneath the appliance, such as cleaners or detergents, spray cans etc. • Using the glass ceramic hob as a storage area may result in scratches or other damage to it. Never heat food in aluminium foil or in plastic containers on the cooking hob. Such foil or containers may melt which can result in a fi...
-
Page 5: Appliance Description

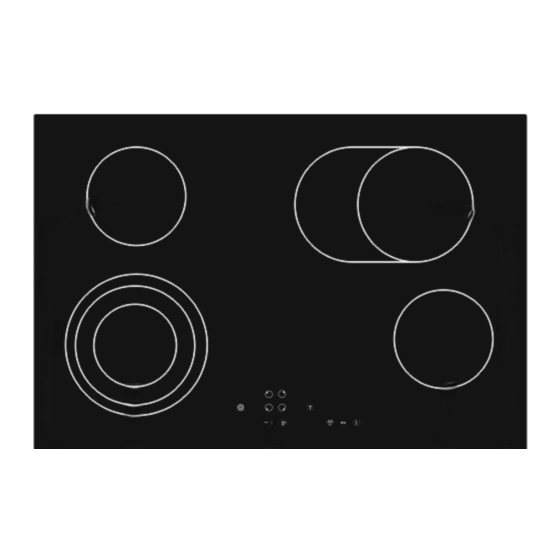

Appliance description 1. Cooking zone rear left 2. Cooking zone front left 3. Cooking hob control unit 4. Cooking zone front right 5. Cooking zone rear right 6. Warming zone Cooking hob control elements (depending on the model) Control sensor keys: G Increase value / setting sensor A Coking hob on/off sensor H Cooking zone selection sensor... -
Page 6: Cooking Zones
Cooking zones Before using the Clean the glass-ceramic surface with a damp cloth and appliance for the fi rst some manual dishwashing detergent. Do not use aggressive time detergents such as abrasive cleaners that can scratch the surface, abrasive dishwashing sponges, or stain removers. Important warnings •... - Page 7 Cookware Tips on using the cookware Use high-quality cookware with a fl at and stable bottom. • Transmission of heat is best when the pan bottom and the cooking zone are of the same diameter, and the pan is placed on the middle of the cooking zone.
-
Page 8: Operating The Cooking Zones
Operating the cooking zones • The cooking hob is fi tted with electronic sensor keys which are activated, respectively, when the indicated surface of a particular sensor is touched with a fi nger for at least one second. • Activation of a sensor key is confi rmed by a beep. •... - Page 9 Turning off the cooking • Select the cooking zone by pressing the relevant sensor key zones (H). The decimal point (F1) next to the display for the selected cooking zone will light up. • Press the “–” (I) sensor key to set the power level to “0”. •...
- Page 10 cases (power failure, a hot pan left on the cooking zone) still be hot. Be careful, as there is a risk of burning. If a power failure has occurred when the cooking zones were hot, the indicator “H” or “h” will fl ash. This is to warn you that the cooking zone may still be hot, but not necessarily, depending on how long the power supply was out of order.
- Page 11 Dish/cooking mode quantity power level cooking duration (min) Soup/reheating 0,5 – 1 lit A7 - 8 4 - 7 milk/reheating 0,2 – 0,4 lit A1 - 2 4 - 7 125 – 250 g rice/simmering approx. 300ml - 600ml A2 - 3 20 - 25 water 750g –...
- Page 12 Power level Maximum operation time in hours Temporary cooking The STOP & GO function enables you to temporarily suspend, or progress suspension pause the cooking progress (urgent other tasks), while keeping - STOP & GO all the settings. (depending on the model) Engaging the STOP &...
- Page 13 B Timer with the option to turn off the cooking zone The switch-off timer facilitates the cooking process by allowing you to set the cooking time for a particular cooking zone. In order to set the switch-off timer, the power level must already have been set (see section “Turning on the cooking zones”).
- Page 14 Warming zone The warming zone is intended for keeping warm the food already cooked. It is not intended for cooking or reheating cold food. The warming zone warms up slowly and reaches a temperature of approximately 100°C; hence, there is a danger of burning. Take care to prevent injury and do not store any heat-sensitive objects on the warming zone.
-
Page 15: Cleaning And Maintenance
Cleaning and maintenance Cleaning After each use of the glass-ceramic hob, wait for it to cool down and clean it; otherwise, even the smallest food residue will be burnt onto the hot surface next time you use the appliance. For regular cleaning and maintenance of the glass-ceramic surface, use special conditioning agents which form a protective layer on the surface, shielding it from dirt. -
Page 16: Installation
Sugar and sugar-laden food may permanently damage the glass- ceramic surface (Figure 5); therefore, they should be removed from the glass-ceramic surface as soon as possible, although the cooking zone may still be hot (Figure 4). Any change in the color of the glass-ceramic surface does not affect its operation or the stability of the surface. -
Page 17: Worktop Cutout
Installing the foam Before inserting the appliance into the opening in the kitchen gasket worktop, the supplied foam gasket must be attached to the lower side of the glass ceramic (glass) cooking hob (see fi gure above). Do not install the appliance without the foam gasket! The gasket should be attached to the appliance in the following way: - Remove the protective fi... -
Page 18: Connecting The Appliance To The Power Mains
millimeters from the lower surface of the worktop. The space between the partition wall and the hob must be empty; no objects should be placed into that gap. • On the furniture back wall there should be a cutout with width of at least 175 mm along the entire width of the furniture element. - Page 19 ATTENTION! • Before any manipulation with the appliance (other than its regular use), disconnect it from the power mains. The appliance should be connected according to the relevant scheme (diagram), subject to the network voltage. Connect the earth (PE) wire to the clip indicated with the earth /ground symbol.
-
Page 20: Technical Characteristics
G Compliance indications / symbols WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE. Instructions for use of the appliance can also be found on our website at www.gorenje.com / < http://www.gorenje.com /> SVK67,73CS en (03-14)
