Broadcom 96xx User Guide
Broadcom
96xx PCIe 4.0, 24G SAS MegaRAID
and eHBA Tri-Mode Storage Adapters
Cable 05-60007-00

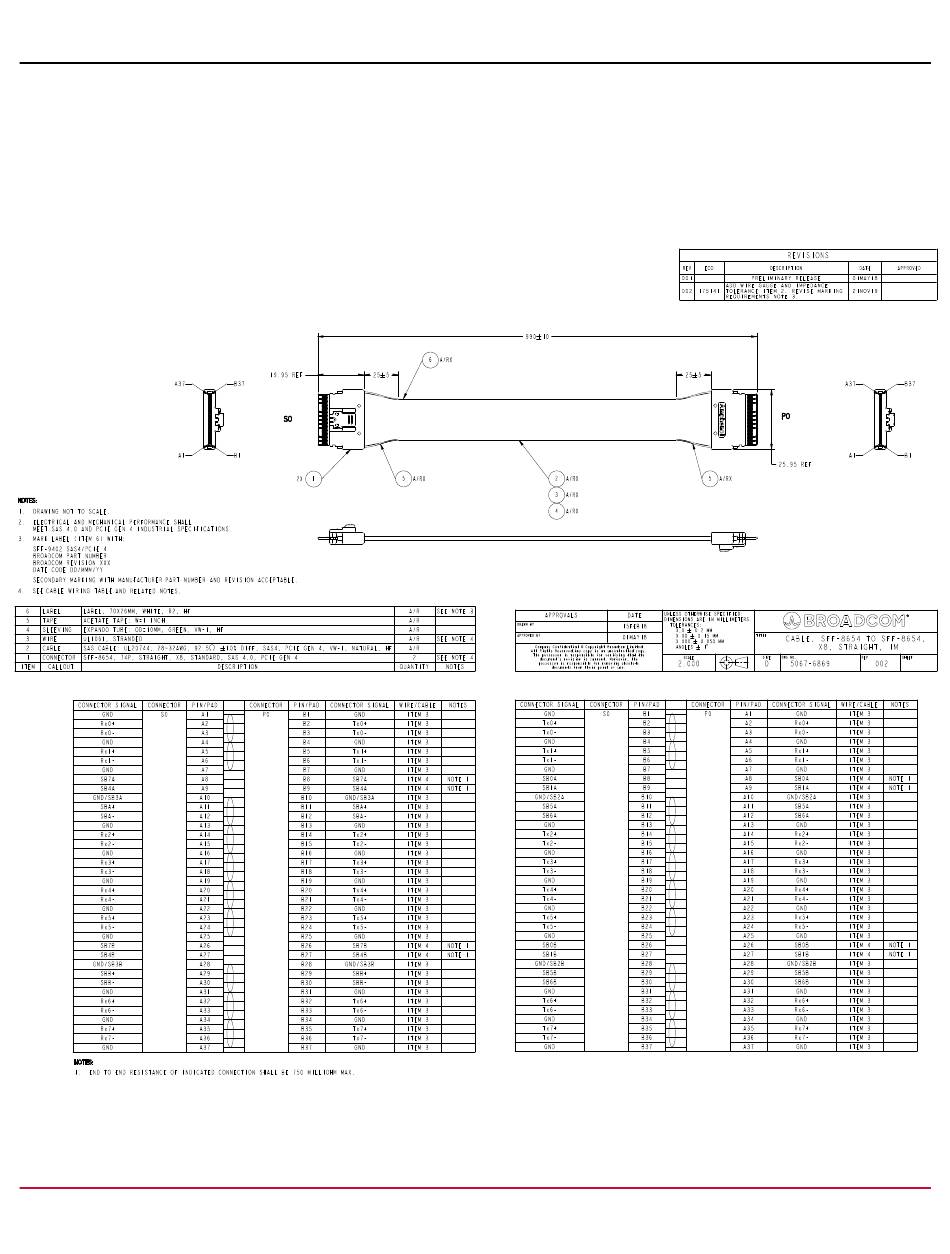

The following figure shows the drawing and pinout for Broadcom cable 05-60007-00, a x8 SFF-8654 to x8 SFF-8654
connection.
Figure 21: Cable 05-60007-00 Drawing and Pinout
Broadcom
96xx-MR-HBA-Tri-Mode-UG108
61
