Custom Page Groups

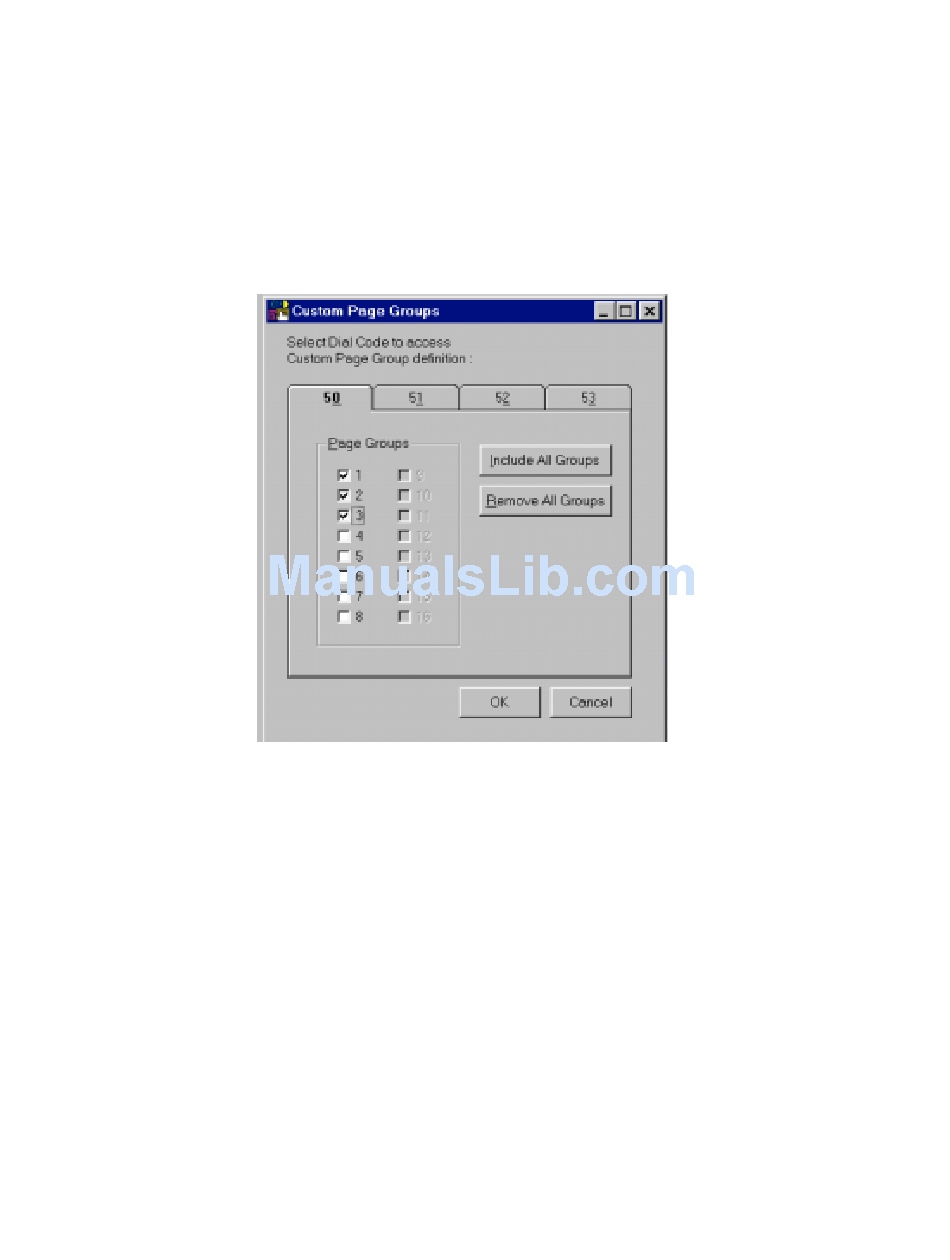

When Custom Page Groups is selected, the following screen is displayed.

There are 4 Custom Page Groups available.

Select the Page Groups to receive custom paging by clicking on the desired box. Each Custom Page Group can

contain all groups or a combination of groups. (Example: Custom Page Group 50 could contain page groups 1, 2,

and 3 and Custom Page Group 52 could contain page groups 1, 2, 7, and 8).

Select OK after all desired page groups are defined.

Next select System from the Programming Window. A check in the box means ON (selected); an empty box means

OFF (not selected). Select the desired options and click on OK to exit this screen. The options are described in

more detail in the Control Unit (V-2924A) document or select Help from the pull-down menu for on-screen details.

The Dip Switch button displays the dip switch equivalent (see next page) of the options selected with the

programming tool.

IMPORTANT: Options set using the programming tool override options selected manually using the Control

Unit dip switches.

947213
