USING THE PROGRAMMING TOOL

On the taskbar, click the Start button, point to Programs, select Valcom V-2924A Programming Tool.

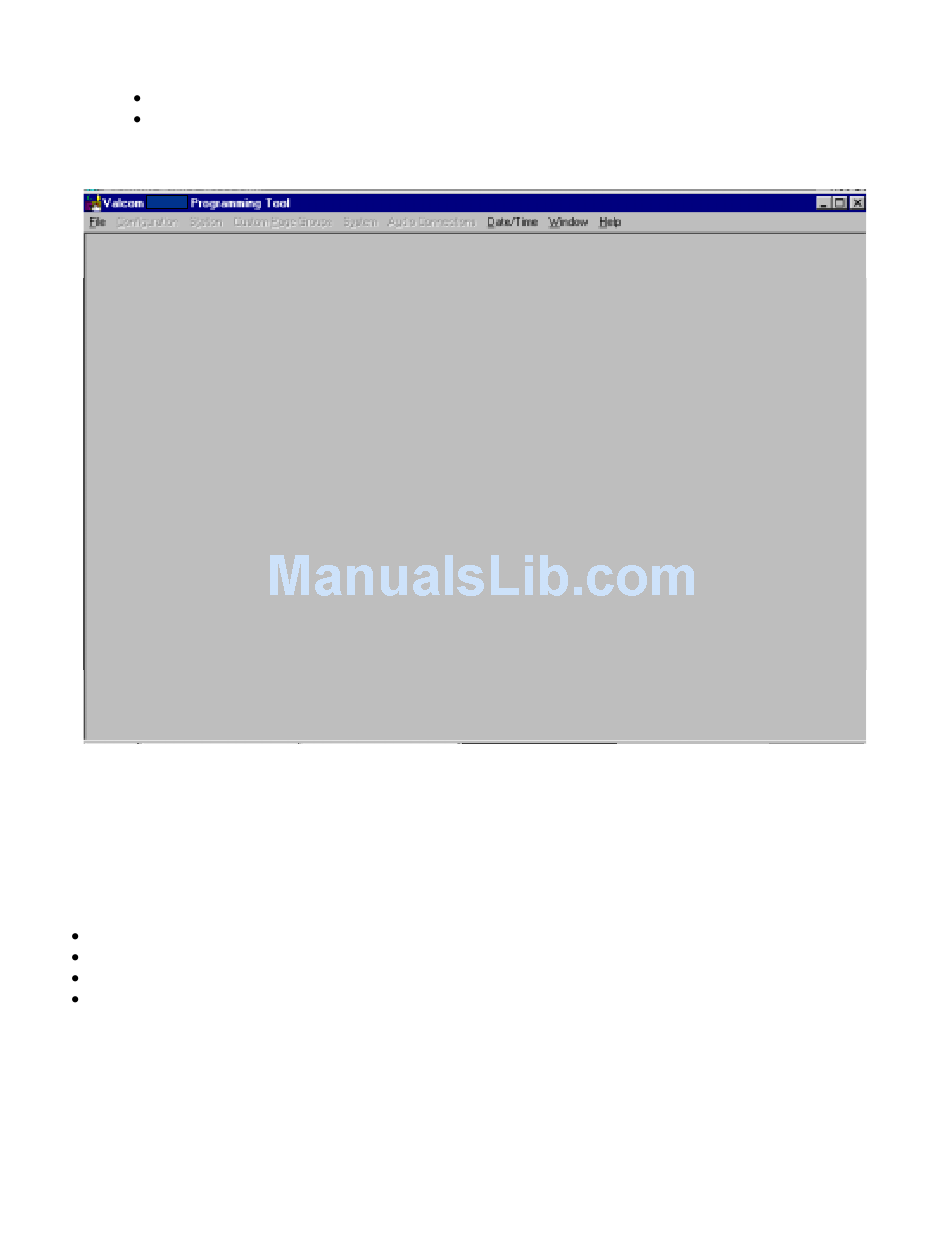

The V-2924A Programming Tool splash screen appears momentarily and then the Programming screen
comes into view
V-2924A

System Configuration

To begin the programming process, click on File. A pull-down menu appears allowing selection of a previously
programmed file (click on Open) or the ability to create a new file (click on New). The following instructions
assume a New configuration file is being created. Click on New from the pull-down menu. A System
Configuration screen is displayed to allow selection of the installed components within the system.
Select one of the following from the list:
For a 24 station system select Main Board.
For a 48 station system select Main Board + Expansion 1.
For a 72 station system select Main Board + Expansion 1, 2.
For a 96 station system select Main Board + Expansion 1, 2, 3.
Press OK to accept the present selection or Cancel to re-select. When selection is complete, the Programming
Window Screen will be displayed. (To display the configuration of the system press the Details button).
