TALKBACK INTERCOM SYSTEM

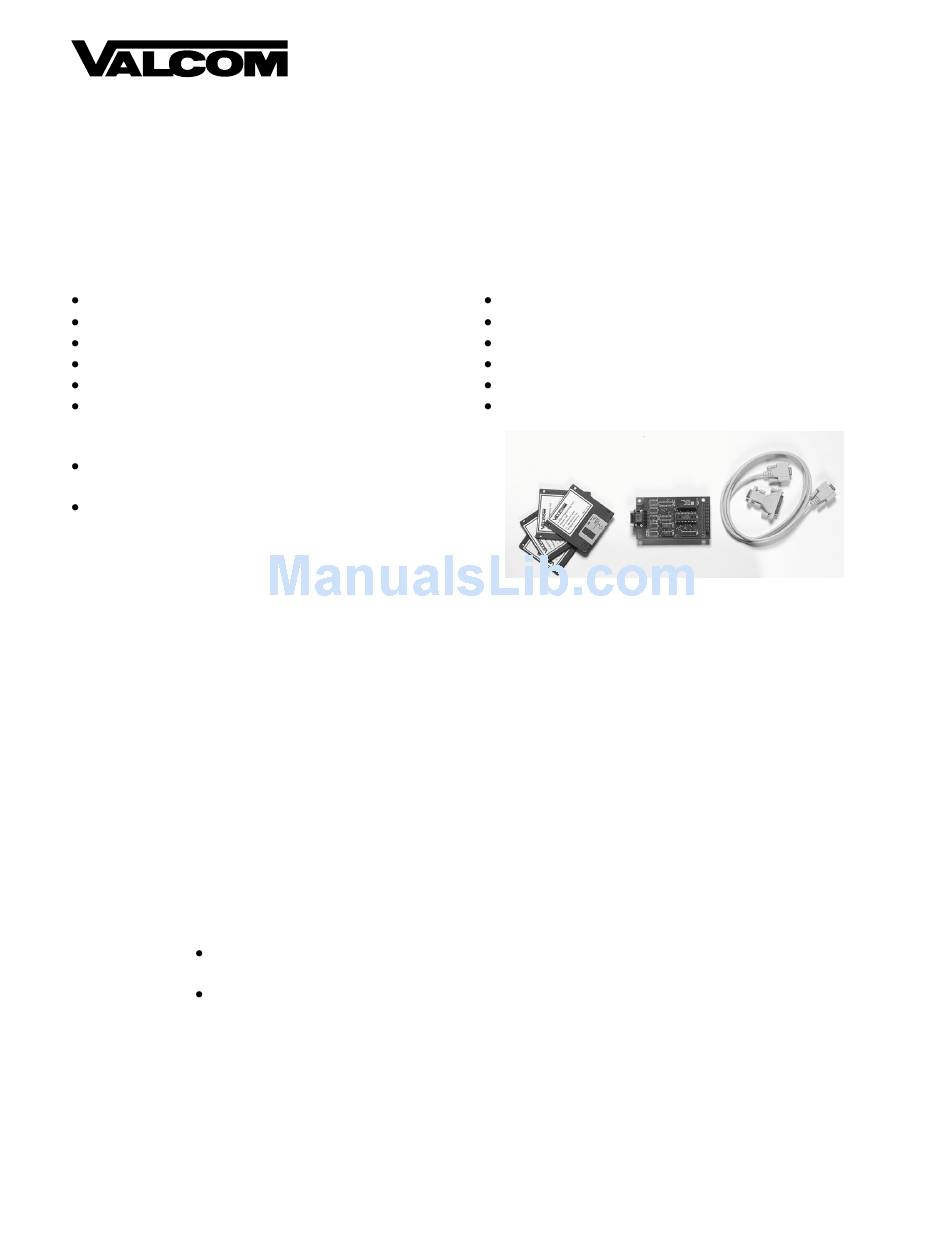

The V-2926 Option Board is an add-on feature for the V-2924A Expandable Zone Talkback Intercom System. The
addition of this board provides the following supplemental features:
Time sync output
Custom page groups
Enhanced Caller ID
Flexible Architectural numbering plan
Interface to the PC Programming Tool
Store user data to EEROM
Dimensions/Weight
5.3" L x 3.0" W x 1.1" D
(13.5cm L x 7.6cm W x 2.8cm D)
0.9 lbs (0.4 kg)
The V-2924A Programming Tool is a windows based
software tool designed to interface with the V-2926 Option
Board. The Option Board and the Programming Tool must both be installed to access the additional features
provided by the Option Board. All features must be set with the Programming Tool when the Option Board and
Programming Tool are installed.
CONTENTS
Select Dialing Method
Print, Window, Help, Exit
V-2926 OPTION BOARD
1
Real time clock for SMDR printer
Auto detect for Com Port or Modem
Auto adjust for Daylight Savings Time
Evacuation tone to specified groups
Time tones to specified groups
Read software/firmware revision numbers
2
2
3
4
4, 5
6, 7
7, 8
8
9
9,10
11
11
11
11, 12
12, 13
13
14
14
14
15-18
18, 19
20
Issue 7
947213
