Valcom V-1094A Quick Start Manual

SYSTEM DESIGN/INFORMATION
GENERAL
These instructions provide the basic information
required to properly install a One-Way paging system
manufactured by Valcom, Inc.
Valcom One-Way Paging Equipment may be used with
any 1A2, Electronic Key, PABX Telephone Systems,
or with one or more dedicated single line telephone
sets.
SYSTEM OVERVIEW
Purpose
Provides telephone accessed single or multizone
paging.
Applications
•
Electronic Key Systems
•
PABX
•
Stand alone systems
•
1A2
TELEPHONE
SYSTEM
POWER
SUPPLY

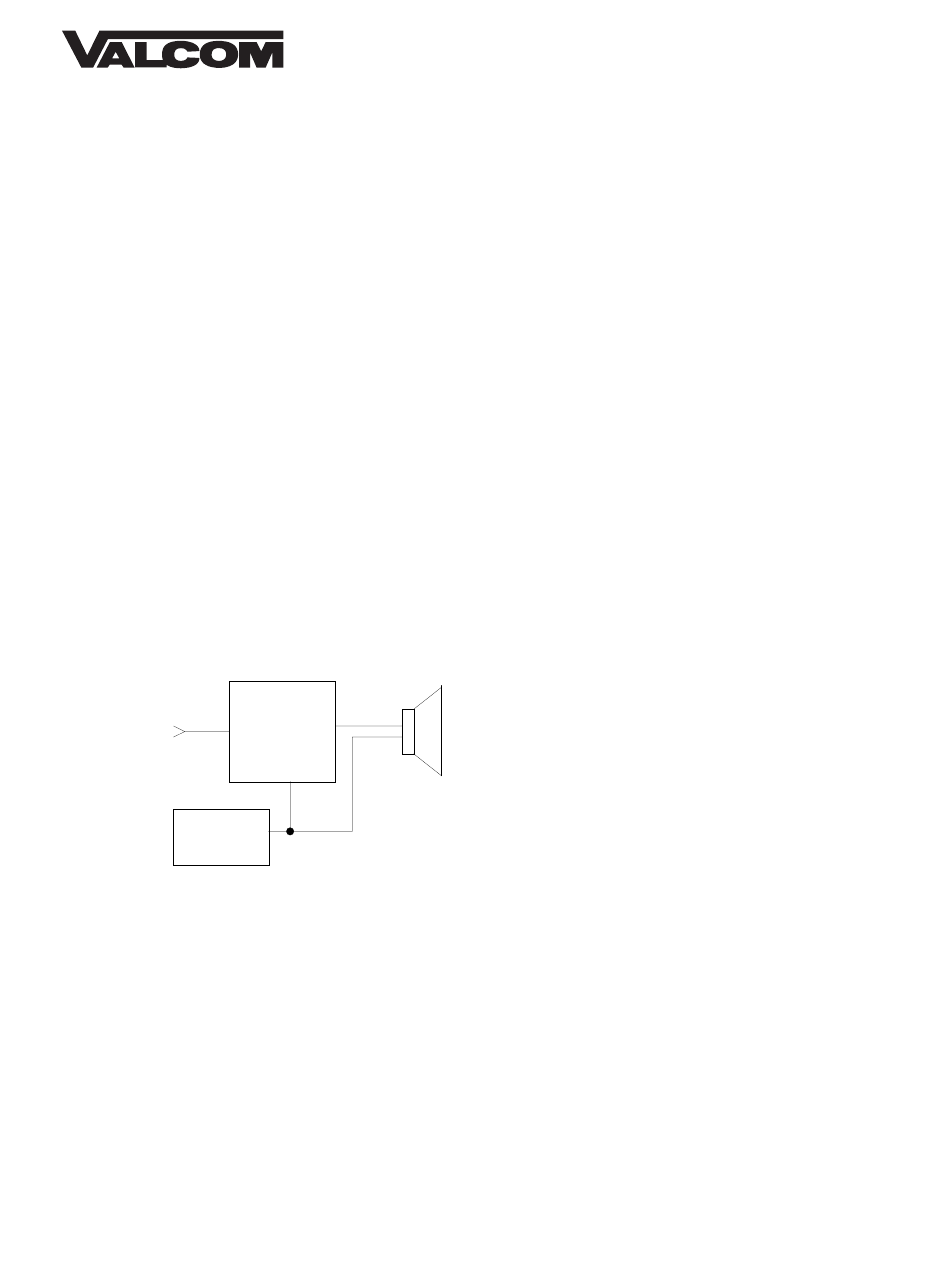

ONE-WAY PAGING SYSTEM BLOCK DIAGRAM
FIGURE 1
Features
•
1, 3, 6, 9, and 24 (expandable with V-2925A in 24
zone increments for up to 96) zone page control
units available.
•
One-way all call to all speakers available.
•
Volume controls and amplifiers in each speaker.
•
No high power amplifier required.
•
Standard CAT 3, 5, 5E twisted pair cable
(typically 22 or 24 AWG) is used for speakers.
•
Existing twisted pair house cables / feed cables
may be used without introducing crosstalk.
•
See Multi-Path Information for systems up to 360
zones.
VALCOM ONE-WAY PAGING
VALCOM
ONE-WAY
CONTROL
UNIT
ONE-WAY
SPEAKER
ASSEMBLY
Access Methods
•
Electronic Key System line button (C. O. circuit
required).
•
PABX loop trunk port (trunk circuit required).
•
Page port.
•
Station level access available (with appropriate
adapter).
•
Stand alone with dedicated single line sets.
•
1A2 line button (line card required on most units).
Capacity
•
All units are one talkpath and one link.
•
V-1094A, 1 zone (page port access only).
•
V-2000A, 1 zone with an integrated power supply.
•
V-2001A, 1 zone with an integrated power supply,
override capabilities and featuring two integrated
tone generators for night ringing and time clock
tones.
•
V-2003A, 3 zones with all call, background music
capabilities, override capabilities, two integrated
tones for night ringing and time clock signaling
plus integrated power supply.
•
V-2006A, 6 zones with all call, up to 3 group
calls, override capabilities, background music
capabilities, two integrated tone generators for
night ringing and time clock tones plus integrated
power supply.
•
V-2924A, 24 zones with all call, background
music capabilities.
•
V-1109RTVA, 9 zones with all call.
Each of the units listed above will drive up to 40
Valcom one-way amplified speaker assemblies per
zone (150 on V-1094A, V-9937, V-1101A, V-2000A,
V-2001A, V-2003A and V-2006A). Additional
speakers may be added to a zone by using a V-1094A.
Each V-1094A allows the addition of 150 more
amplified speaker assemblies to that zone.
1
VSP – One-Way Paging
Issue 14
947100
