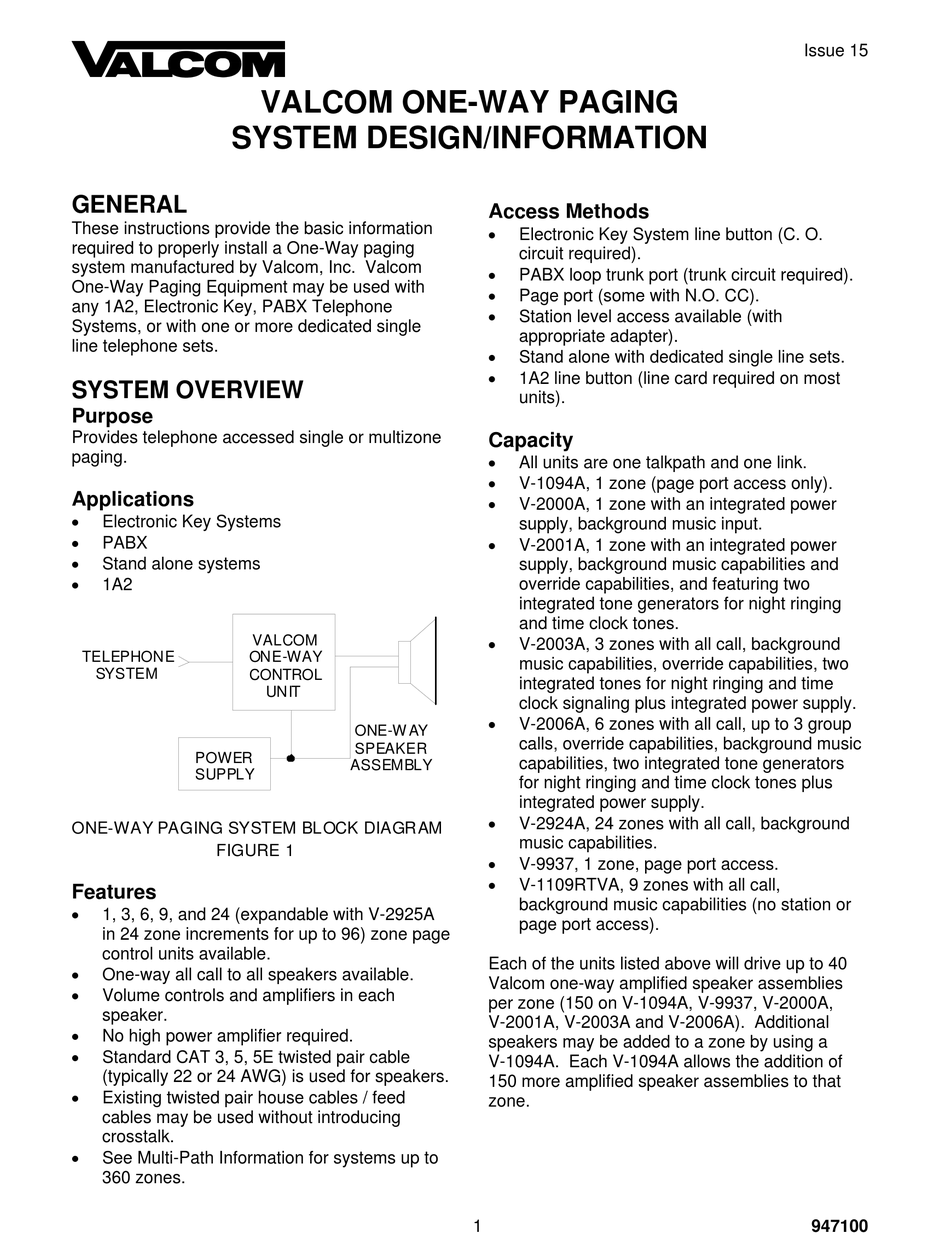

Valcom ONE-WAY PAGING SYSTEM Design/Information

SYSTEM DESIGN/INFORMATION
GENERAL
These instructions provide the basic information
required to properly install a One-Way paging
system manufactured by Valcom, Inc. Valcom
One-Way Paging Equipment may be used with
any 1A2, Electronic Key, PABX Telephone
Systems, or with one or more dedicated single
line telephone sets.

SYSTEM OVERVIEW

Purpose
Provides telephone accessed single or multizone
paging.
Applications

Electronic Key Systems

PABX

Stand alone systems

1A2
TELEPHONE
SYSTEM
POWER
SUPPLY
ONE-WAY PAGING SYSTEM BLOCK DIAGRAM
FIGURE 1
Features

1, 3, 6, 9, and 24 (expandable with V-2925A
in 24 zone increments for up to 96) zone page
control units available.

One-way all call to all speakers available.

Volume controls and amplifiers in each
speaker.

No high power amplifier required.

Standard CAT 3, 5, 5E twisted pair cable
(typically 22 or 24 AWG) is used for speakers.

Existing twisted pair house cables / feed
cables may be used without introducing
crosstalk.

See Multi-Path Information for systems up to
360 zones.
VALCOM ONE-WAY PAGING
VALCOM
ONE-WAY
CONTROL
UNIT
ONE-W AY
SPEAKER
ASSEMBLY
Access Methods

Electronic Key System line button (C. O.
circuit required).

PABX loop trunk port (trunk circuit required).

Page port (some with N.O. CC).

Station level access available (with
appropriate adapter).

Stand alone with dedicated single line sets.

1A2 line button (line card required on most
units).
Capacity

All units are one talkpath and one link.

V-1094A, 1 zone (page port access only).

V-2000A, 1 zone with an integrated power
supply, background music input.

V-2001A, 1 zone with an integrated power
supply, background music capabilities and
override capabilities, and featuring two
integrated tone generators for night ringing
and time clock tones.

V-2003A, 3 zones with all call, background
music capabilities, override capabilities, two
integrated tones for night ringing and time
clock signaling plus integrated power supply.

V-2006A, 6 zones with all call, up to 3 group
calls, override capabilities, background music
capabilities, two integrated tone generators
for night ringing and time clock tones plus
integrated power supply.

V-2924A, 24 zones with all call, background
music capabilities.

V-9937, 1 zone, page port access.

V-1109RTVA, 9 zones with all call,
background music capabilities (no station or
page port access).
Each of the units listed above will drive up to 40
Valcom one-way amplified speaker assemblies
per zone (150 on V-1094A, V-9937, V-2000A,
V-2001A, V-2003A and V-2006A). Additional
speakers may be added to a zone by using a
V-1094A. Each V-1094A allows the addition of
150 more amplified speaker assemblies to that
zone.
