V-2924A

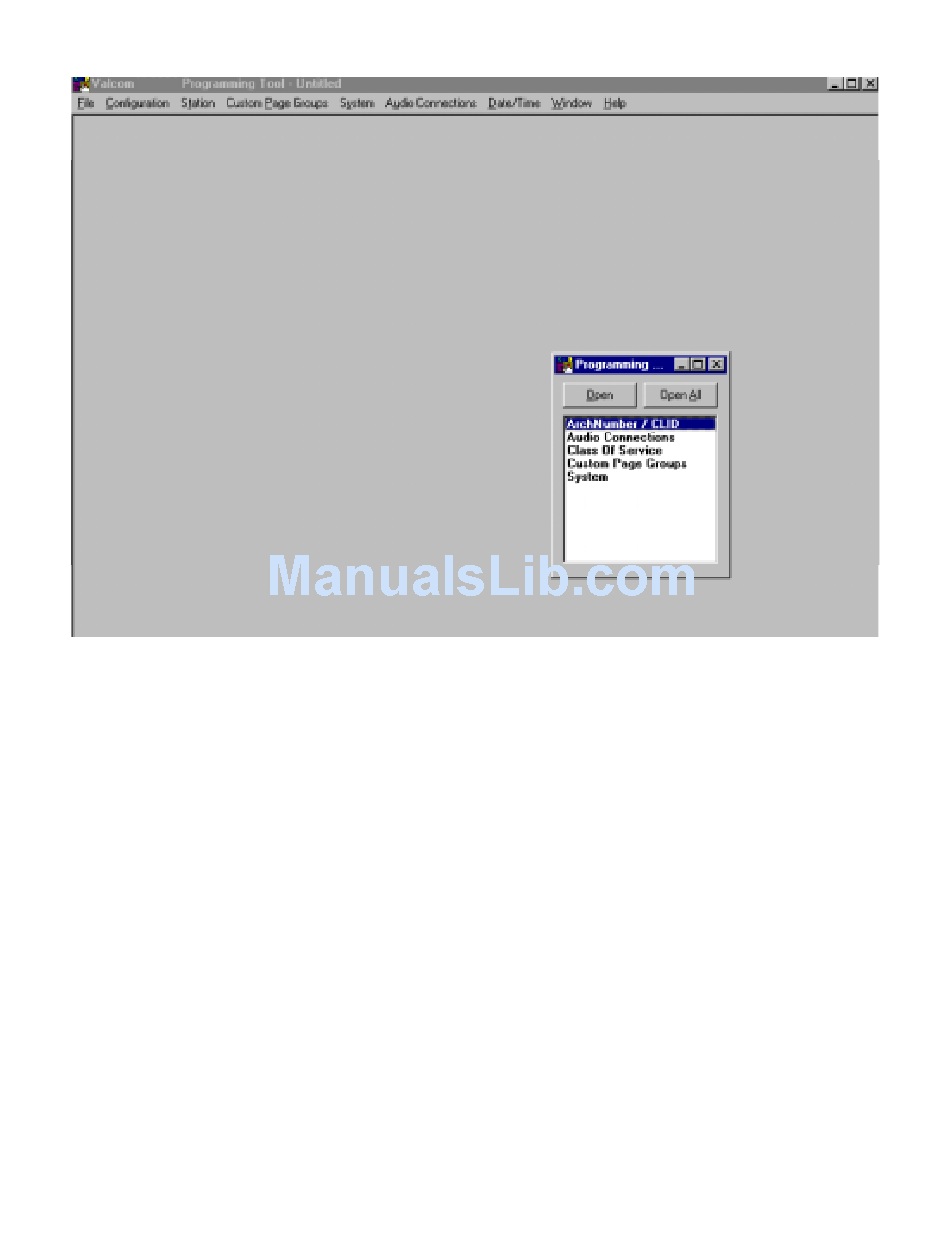

Architectural Number and CLID (Caller ID) Programming
The first function to configure is the Architectural Number and CLID Programming.
The Architectural Number is a 1 to 4 digit number that is dialed by the phone to connect to a specific speaker.
Flexible architectural numbering is often selected to allow speakers and room numbers to match. The CLID
Programming allows a name or up to 15 character description to be entered for each station.
The information entered in the CLID description field will be displayed on the phone or Caller ID unit if provided as
part of the system.
The Edit Station Entry allows a CLID description to be entered for each station. Example: 105 would be the
Arch # and MR. HALL would be the CLID description (15 character limit).
The Delete Station Entry allows removal of selected architectural and CLID descriptions.
Auto Numbering assigns the Arch # in sequential order. The beginning number is the currently selected station; an
ending number must be specified.
To Auto Number – Highlight station where architectural numbering begins.
Select Edit Station Entry. Enter beginning architectural number and select OK.
Select Auto Numbering and enter last architectural number (must be a higher number).
Select OK.
Enter information for the Main Board as well as each Expansion Unit being used and press OK to accept.
