Figure 1 - Option Board Location On The Control Board - Valcom V-2926 User Manual

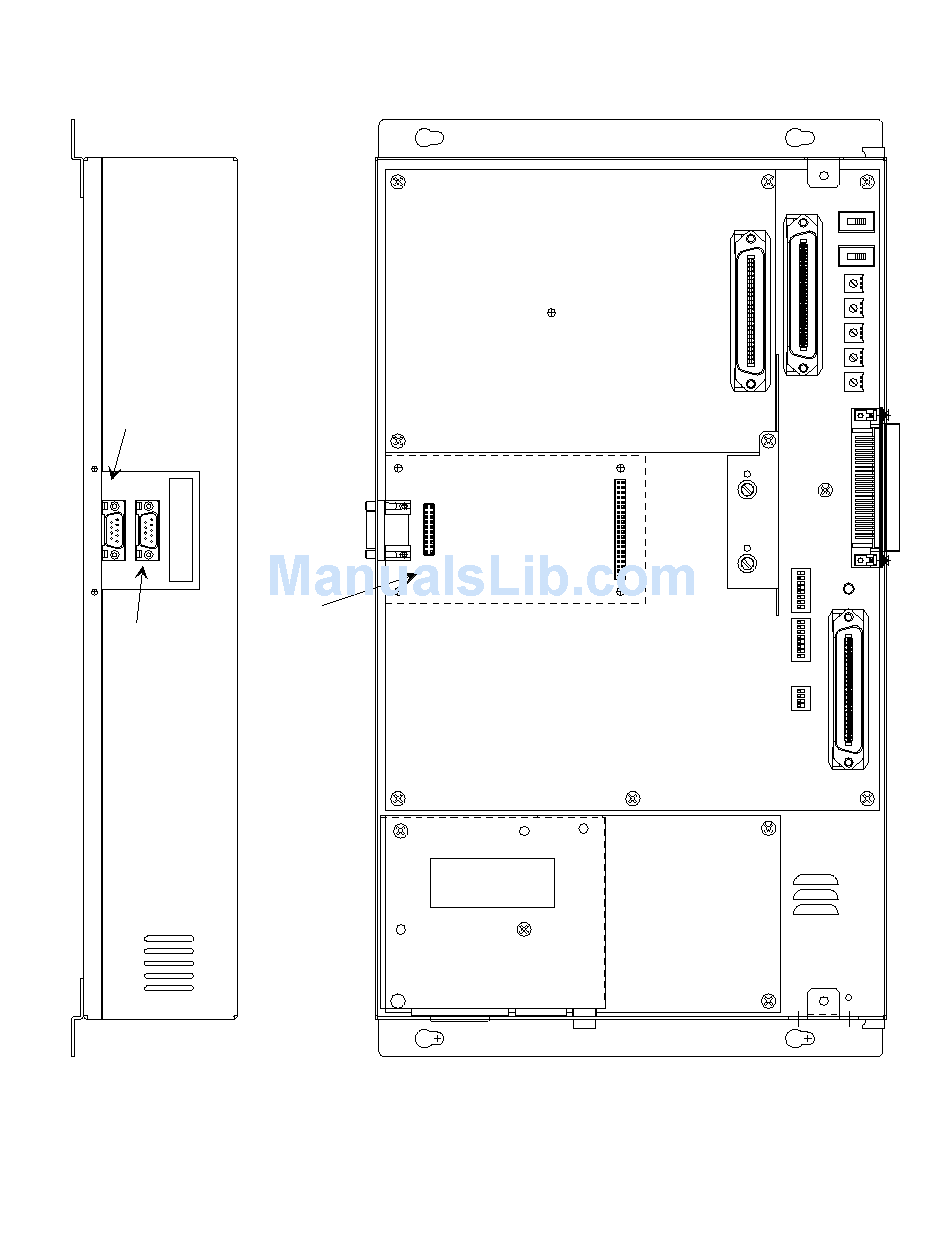

FIGURE 1 - OPTION BOARD LOCATION ON THE CONTROL BOARD

Side View
RS232 Serial Port
for SMDR (DB9
Connector)
P10 P1
Option
Board
Location
PC Programming
Port (located on
Option Board)
Slide plate covering
connector ports up
to provide opening
for connector
Align J3 on the Option Board directly over J1 on the Control Board
Align J4 on the Option Board directly over JP2 on the Control Board
Press Option Board firmly into place.
Top View
JP2
J1
J3 and J4 are located on the
under side of the Option Board.
HIGH VOLTAGE AREA
DISCONNECT POWER
BEFORE SERVICING
3 947213
