Printer Paper
To change thermal printer paper, remove the four thumb-
screws securing the cover and serrated paper cutter.

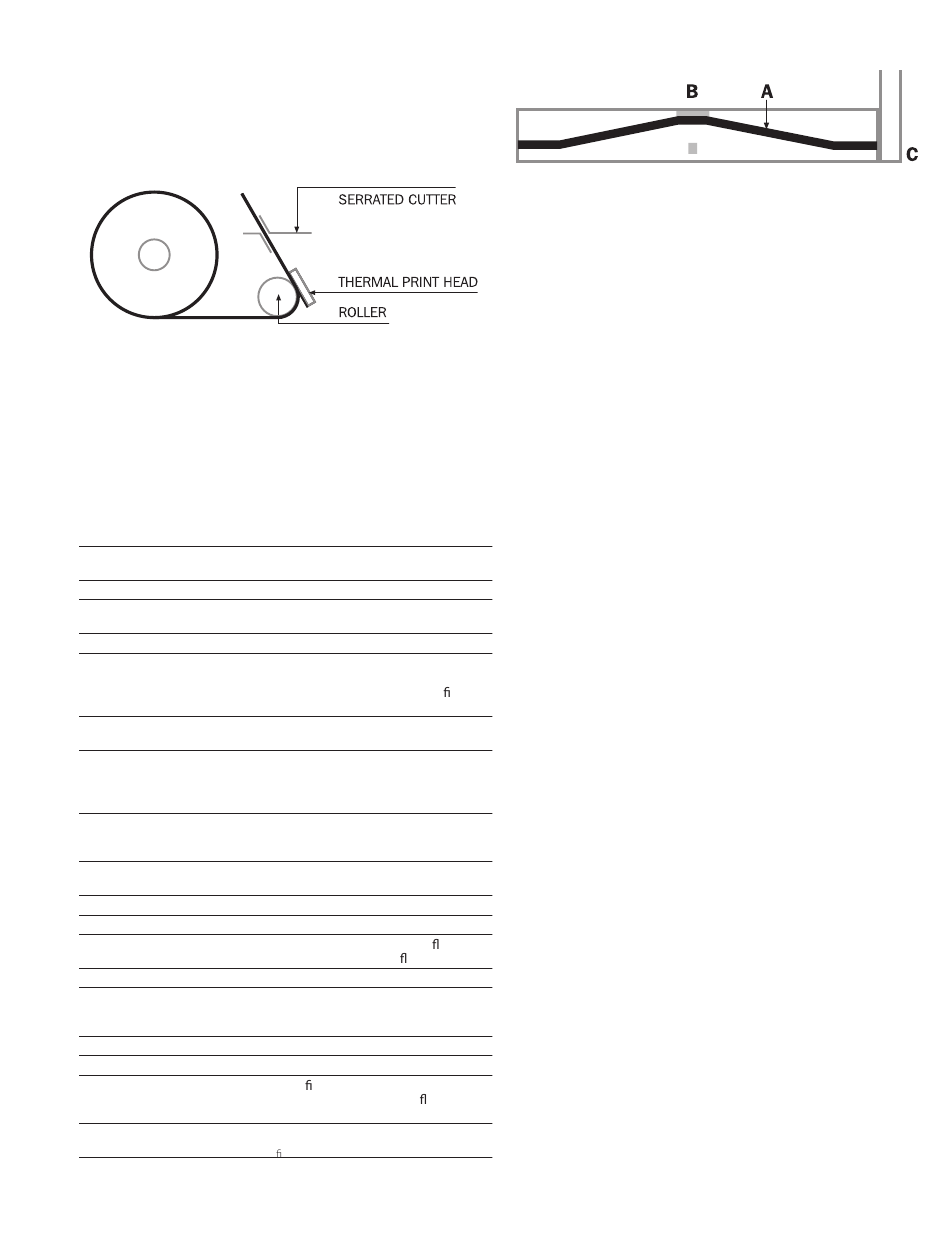

Thermal printer paper is sensitized on one side only, and
must be fed into the printer mechanism as shown below.
Using a finger, press down on the print head spring at point
A; tilt the print head to the open position by pulling it back at
point B.
Specifications
Technology Automatic Optical Particle Analyzer
Laser Package Twin Laser and Twin Optical Diode
Detectors
LCD display (backlit)
Sensitivity >4, 6, 14, 21, 25, 38, 50, 68 µm(c), Micron
range to revised ISO 4406 Standard
Accuracy/Repeatability Better than 3% typical
Calibration Each unit is individually calibrated with
ISO Medium Test Dust (MTD) based on
ISO 11171:1999 on equipment certi ed by
I.F.T.S.
Analysis Range ISO 8 to ISO 24 to ISO 4406
(NAS 1638-2 to 12)
Report/PrintFormat ISO and NAS codes, with individual
particle counts as a built-in option
Printer Fixed head thermal printer
(384 dots per line)
Target-Pro 15 ml. (normal), 30 ml. (dynamic)
2 SampleVolume 24 ml. (bottle sampler)
15 ml. (continuous), 8ml. (short)
Operation Max. system working pressure, 400 bar;
Min. working pressure, 2 bar
Viscosity Range to 400 centistokes
OperatingTemperature +5 to +80°C
Fluid Compatibility Mineral oil and petroleum based uids
(consult Danfoss for other uids)
Typical Test Time Result in <2.5 mins. (normal test)
Power Internal rechargeable battery
(AC charger) or external 12/24 volt DC
power supply
Data Storage 600 tests
Computer Interface RS 232 (serial) communication port
Hose Connections minimess ttings
microbore hose, 1.5 m waste uid hose
Dimensions Height 210mm; Depth 260mm;
Width 430mm;Weight 7.6 kg
Danfoss reserves the right to alter these speci cations without notice.
Vickers by Danfoss Target-Pro 2 Analyzer and Sampler Operation Manual V-PP-MC-0002-E
Feed the paper under the roller and pull the paper end out
of the mechanism. Return the print head back to its normal
position by pressing on the green lever at point C. Make
sure the print head spring returns to the position shown
above.
Important: Do not operate the printer without paper; doing
so will damage the printer. Replace the roll when the "end
of roll" indication appears on the paper.
Warranty and Recalibration
The Target-Pro 2 is guaranteed for one year after delivery.
Danfoss recommends you return the analyzer once each
year for recalibration.
Troubleshooting
P r o b l e m C h e c k
1. LCD screen remains blank after switching on
• Make sure analyzer battery is charged, or has
been charging for at least 15 minutes
• See if LED illuminates when power adapter is
connected to DC power input socket on analyzer
2. Unexpected results obtained from sample
• Check the fluid sampling hose connections
at both the system and analyzer ends
• Confirm that there is a free flow of fluid to the
analyzer: press the flush valve and see if fluid
passes into the waste disposal bottle Body
text:
Note: If you suspect high water/aeration levels, contact
Danfoss for advice.
Warning: If excessive system contamination is suspected,
flush the analyzer using the bottle sampling unit in conjunc-
tion with a suitable solvent, such as mineral spirits.
Do not use acetone.
