Summary of Contents for GMI D1046Y

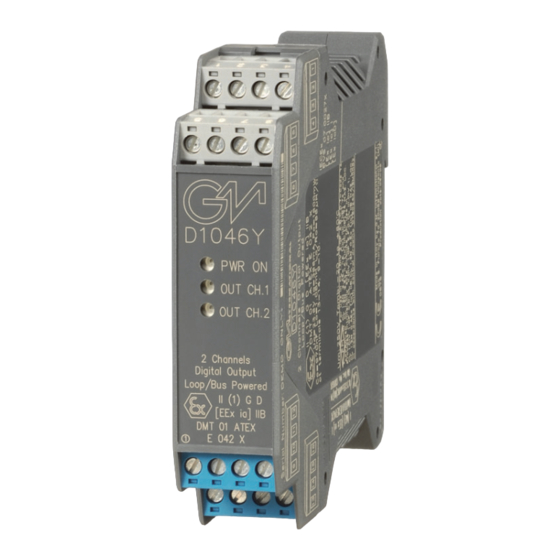

- Page 1 D1046Y INSTRUCTION MANUAL Digital Output Loop/Bus Powered DIN-Rail Model D1046Y D1046 - Digital Output Loop / Bus Powered ISM0082-7...
- Page 2 Current consumption @ 24 V: 3 mA (≈ 10 KΩ input impedance). Output: 100 mA at 13.7 V (20.5 V no load, 68.1 Ω series resistance) at terminals 13-14, 9-10. V (V) D1046Y Output Diagram 20.5 V (no load) ...
- Page 3 Ordering information Model: D1046Y Power Bus enclosure Front Panel and Features Output to Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2. Voltage input with isolated commands, loop powered or bus powered. Suitable for driving 1 or 2 positions directional solenoid valves.
- Page 4 Parameters Table In the system safety analysis, always check the Hazardous Area/Hazardous Locations devices to conform with the related system documentation, if the device is Intrinsically Safe check its suitability for the Hazardous Area/Hazardous Locations and gas group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the D1046 Associated Apparatus connected to it.
- Page 5 CLASS II, DIVISION 1, GROUPS E, F, G, CLASS III, DIVISION 1, GROUPS A, B, C, D T-Code T4, CLASS I, ZONE 2, GROUP IIC T4 CLASS I, ZONE 0, GROUP IIB MODEL D1046Y Supply 24 Vdc Loop Powered (Open Terminals)
- Page 6 Operation Each of the two independent and isolated channels of D1046Y accepts an input from Safe Area/Non Hazardous Locations (logic level or switch contact) and provides an output (see the output diagram on data sheet for details of voltage and current to the load) in Hazardous Area/Hazardous Locations to drive Intrinsically Safe loads (solenoid valves, audible alarms, signaling leds etc.).
- Page 7 Installation D1046 is a digital output isolator housed in a plastic enclosure suitable for installation on T35 DIN Rail according to EN50022. D1046 unit can be mounted with any orientation over the entire ambient temperature range, see section “Installation in Cabinet” and "Installation of Electronic Equipments in Cabinet" Instruction Manual D1000 series for detailed instructions.
