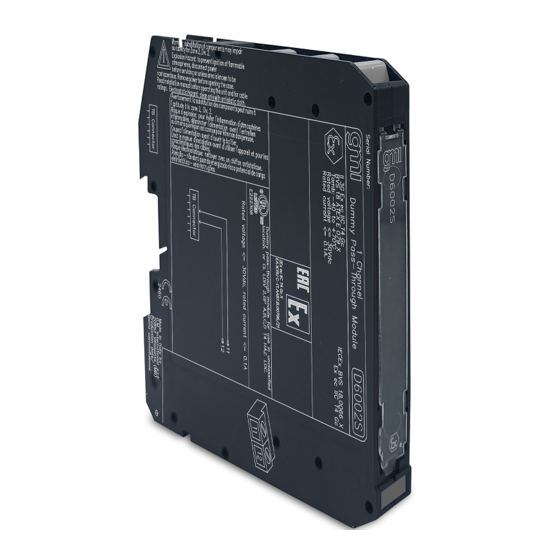

- Page 1 D6002S INSTRUCTION MANUAL Dummy Pass-Through Module, Termination Board, Model D6002S D6002 - Dummy Pass-Through Module G.M. International ISM0396-2...
- Page 2 Characteristics General Description: The single channel D6002S is a Dummy pass-through module, for field and control side circuits marshalling. Mounting on customized Termination Boards, in Safe Area / Non Hazardous Location or in Zone 2 / Class I, Division 2.
- Page 3 Ordering information Model: D6002 1 channel Front Panel and Features Installation in Zone 2 / Division 2. EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety systems. ATEX, IECEx, UL & UL-C Certifications. Simplified installation using standard customized Termination Boards. D6002 Terminal block connections 11 12...
- Page 4 Function Diagram SAFE AREA, ZONE 2 GROUP IIC T4, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, GROUPS A, B, C, D T-Code T4 MODEL D6002S Termination board connector D6002 - Dummy Pass-Through Module G.M. International ISM0396-2...
- Page 5 Warning D6002 series are electrical apparatus installed into customized Termination Boards located in Safe Area or Zone 2, Group IIC, Temperature T4 Hazardous Area within the specified operating temperature limits Tamb -40 to +70 °C. D6002 series must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards (e.g. EN/IEC60079-14 Electrical apparatus for explosive gas atmospheres - Part 14: Electrical installations in hazardous areas (other than mines)), following the established installation rules.
