D5038S*, D5038D*, D5038X*
SAFETY MANUAL
I.S. SIL3 Line-Fault Transp. Switch/Prox. Repeater,
DIN-Rail and Termination Board
Models D5038S*, D5038D*, D5038X*
Reference must be made to the relevant sections within the instruction manual ISM0427,
which contain basic guides for the installation of the equipment.

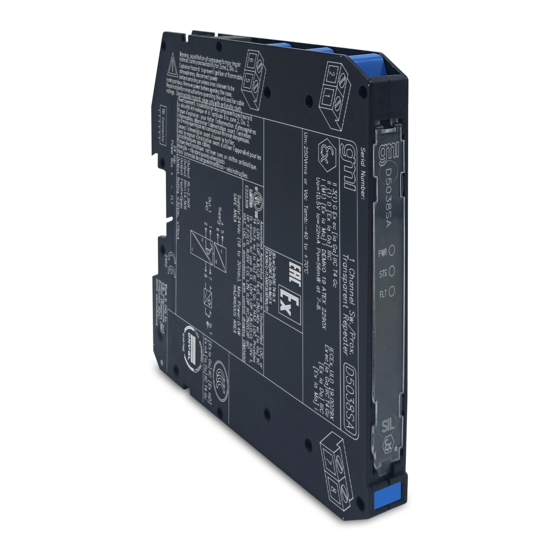

D5038 - I.S. SIL3 Line-Fault Transp. Switch/Prox. Repeater
G.M. International ISM0429-0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GMI D5038S Series
Summary of Contents for GMI D5038S Series
- Page 1 D5038S*, D5038D*, D5038X* SAFETY MANUAL I.S. SIL3 Line-Fault Transp. Switch/Prox. Repeater, DIN-Rail and Termination Board Models D5038S*, D5038D*, D5038X* Reference must be made to the relevant sections within the instruction manual ISM0427, which contain basic guides for the installation of the equipment. D5038 - I.S.
-
Page 2: Dip-Switch Position
Functional Safety Manual and Application Application for single channel D5038SA or D5038SB OFF operation ON operation Supply Supply Out 1 resistance value is RL (for Out 1 resistance value is RH (for 24 Vdc 24 Vdc Field Input: proximity is OFF Field Input: proximity is ON direct function) or RH (for reverse direct function) or RL (for reverse... - Page 3 Functional Safety Manual and Application Application for double channel D5038DA or D5038DB OFF operation ON operation Supply Supply Out 1 resistance value is RL (for Out 1 resistance value is RH (for 24 Vdc 24 Vdc Field Input: proximity is OFF Field Input: proximity is ON direct function) or RH (for reverse direct function) or RL (for reverse...
- Page 4 Functional Safety Manual and Application Application for duplicator D5038XA or D5038XB OFF operation ON operation Supply Supply Out 1 resistance value is RL (for Out 1 resistance value is RH (for 24 Vdc 24 Vdc Field Input: proximity is OFF Field Input: proximity is ON direct function) or RH (for reverse direct function) or RL (for reverse...
- Page 5 Testing procedure at T-proof The proof test shall be performed to reveal dangerous faults which are undetected by diagnostic. This means that it is necessary to specify how dangerous undetected fault, which have been noted during the FMEDA, can be detected during proof test. Note for switch input: to detect a broken wire, or a short circuit condition, in the input connections it is necessary to mount, close to the switches, the end of line resistors: R1=1 KΩ...
