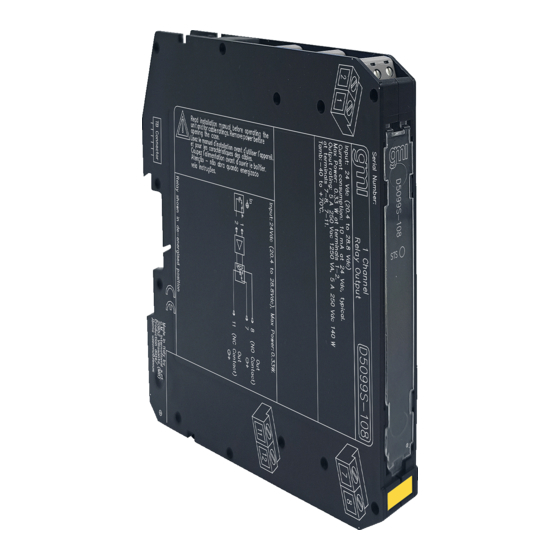

- Page 1 D5099S INSTRUCTION MANUAL 5 A Relay Output Module for Termination Board Model D5099S D5099 - 5 A Relay Output Module for Termination Board G.M. International ISM0394-5...
- Page 2 Characteristics General Description: The single channel D5099S is a Relay Output module, which provides an SPDT (Single Pole Double Throw) contact isolated from the input. Compatibility with specific DO cards with pulse testing needs to be verified. Mounting on customized Termination Boards, in Safe Area / Non Hazardous Location or in Zone 2 / Class I, Division 2.
- Page 3 Ordering information Model: D5099 1 channel Front Panel and Features Installation in Zone 2 / Division 2. 6 A inrush current at 24 Vdc / 250 Vac. Input/Output isolation. EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety systems. ...
- Page 4 Function Diagram SAFE AREA, ZONE 2 GROUP IIC T4, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, GROUPS A, B, C, D T-Code T4 MODEL D5099S (NO) 8 Out 1 (NO contact) (CM) 7 (NC) 10 Out 2 (NC contact) (CM) 9...
- Page 5 Warning D5099 series are electrical apparatus installed into customized Termination Boards located in Safe Area or Zone 2, Group IIC, Temperature T4 Hazardous Area within the specified operating temperature limits Tamb -40 to +70 °C. D5099 series must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards (e.g. EN/IEC60079-14 Electrical apparatus for explosive gas atmospheres - Part 14: Electrical installations in hazardous areas (other than mines)), following the established installation rules.
