Summary of Contents for GMI D5090S-102

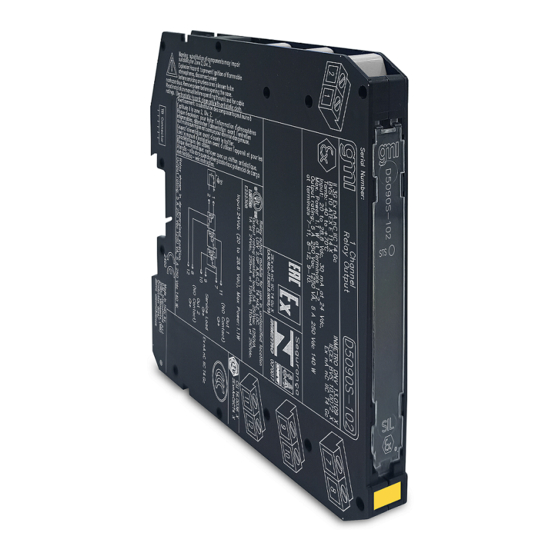

- Page 1 D5090S-102 INSTRUCTION MANUAL SIL3 Relay Out Module for 5 A NE Loads, DIN-Rail and Termination Board, Model D5090S-102 D5090-102 - SIL3 Relay Out Module for 5 A NE Loads G.M. International ISM0456-1...
- Page 2 Characteristics General Description: The D5090-102 is a relay module suitable for switching safety related circuits, up to SIL 3 level, for high risk industries. It provides isolation between input and output contacts. It makes available two NO contacts for Normally Energized (NE) loads, in order to disconnect the load on both supply lines, and a NC contact for service purpose. This model is specifically designed to reach high functional safety at minimum power consumption.
- Page 3 Ordering information Power Bus and DIN-Rail accessories: Model: D5090S-102 DIN-Rail stopper MCHP196 Front Panel and Features SIL 3 (low demand mode of operation) according to IEC 61508:2010 Ed.2 with Tproof = 14/20 years (≤ 10 / >10 % of total SIF).
- Page 4 Function Diagram SAFE AREA, ZONE 2 GROUP IIC T4, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, GROUPS A, B, C, D T-Code T4 MODEL D5090S -102 (NO2) 11 Out 1 (NO contact) (CM1) 7 (CM1) 9 Service Load Out Not SIL (NC1) 10 (NO1) 8 Out 2 (NO contact)
- Page 5 Warning D5090-102 series are electrical apparatus installed on EN/IEC60715 TH 35 standard DIN-Rail located in Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4 or Class I, Division 2, Group A, B, C, D, T4 Hazardous Area within the specified operating temperature limits Tamb - 40 to +70 °C. D5090-102 series must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards (e.g.
