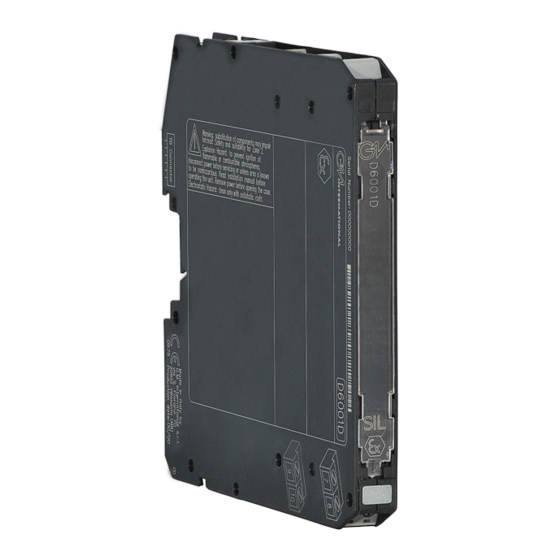

- Page 1 D6001S - D6001D INSTRUCTION MANUAL SIL 3 Dummy Pass-Through Module, Termination Board, Models D6001S, D6001D D6001 - SIL 3 Dummy Pass-Through Module G.M. International ISM0386-5...
- Page 2 Electrical Specification: Rated Voltage: ≤ 30 V. Max power dissipation: 8.6 mW/17.2 mW (D6001S/D6001D) @ 24 mA, 37.5 mW/75 mW (D6001S/D6001D) @ 50 mA. Rated Current: ≤ 0.1 A with linear derating to 0.05 A according to the graph below: I [A] 0.05...
- Page 3 Ordering information Model: D6001 1 channel 2 channels Front Panel and Features SIL 3 (low demand mode of operation) for a channel connected to AI, AO, DI or DO module loop with DTT condition, according to IEC 61508:2010 Ed.2 with 20 years life time (≤10% of total SIF) and PFDavg (1 year) = 0, SFF = 100%. ...
- Page 4 SAFE AREA, ZONE 2 GROUP IIC T4, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, GROUPS A, B, C, D T-Code T4 MODEL D6001D Termination board connector MODEL D6001S Termination board connector D6001 - SIL 3 Dummy Pass-Through Module G.M. International ISM0386-5...
- Page 5 Warning D6001 series are electrical apparatus installed into customized Termination Boards located in Safe Area or Zone 2, Group IIC, Temperature Classification T4, Hazardous Area within the specified operating temperature limits Tamb - 40 to +70 °C. D6001 series must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards (e.g. IEC/EN60079-14 Electrical apparatus for explosive gas atmospheres - Part 14: Electrical installations in hazardous areas (other than mines)), following the established installation rules.
