D5096S-106
INSTRUCTION MANUAL

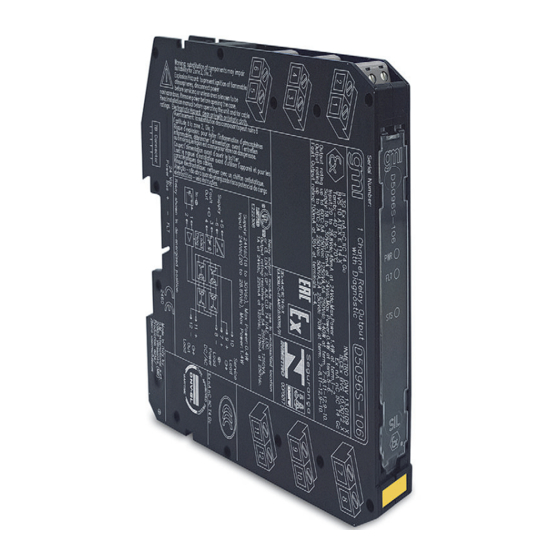

SIL 3 Relay Low-V Module for 5 A NE/ND Loads with LFD
DIN-Rail and Termination Board
Model D5096S-106
D5096-106 - SIL 3 Relay Low-V Module for 5 A NE/ND Loads with LFD
G.M. International ISM0462-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5096S-106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GMI D5096S-106

  • Page 1 D5096S-106 INSTRUCTION MANUAL SIL 3 Relay Low-V Module for 5 A NE/ND Loads with LFD DIN-Rail and Termination Board Model D5096S-106 D5096-106 - SIL 3 Relay Low-V Module for 5 A NE/ND Loads with LFD G.M. International ISM0462-4...
  • Page 2 General Description: The D5096S-106 is a relay module suitable for the switching of safety related circuits, up to SIL 3 level according to IEC 61508:2010 Ed. 2 for high risk industries. It provides isolation between input and output contacts. A wide compatibility towards different DCS/PLC is guaranteed: driving line pulse testing, executed by DCS/PLC, is permitted by a dedicated internal circuit, to prevent relay and LED flickering.
  • Page 3 Ordering information Power Bus and DIN-Rail accessories: Model: D5096S-106 Bus Connector JDFT049 Bus Mounting Kit OPT5096 Front Panel and Features  SIL 3 (low demand mode of operation) for NE Load according to IEC 61508:2010 Ed.2 with Tproof = 14 / 20 yrs (≤ 10 / >10 % of total SIF).
  • Page 4 Function Diagram SAFE AREA, ZONE 2 GROUP IIC T4, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, GROUPS A, B, C, D T-Code T4 MODEL D5096S-106 MODEL D5096S Load and Supply 24 Vdc Line Diagnostic NC Service Load Not SIL Fault Out...
  • Page 5 Operation The single channel 5 A Relay Output D5096S-106 is a relay module suitable for the switching of safety related circuits, up to SIL 3 level according to IEC 61508:2010 Ed.2 for high risk industries. It provides isolation between input and output contacts. D5096S-106 has 2+2 SPST relay contacts connected in parallel and then in series to avoid spurious trip and to increase availability (see function diagram).
