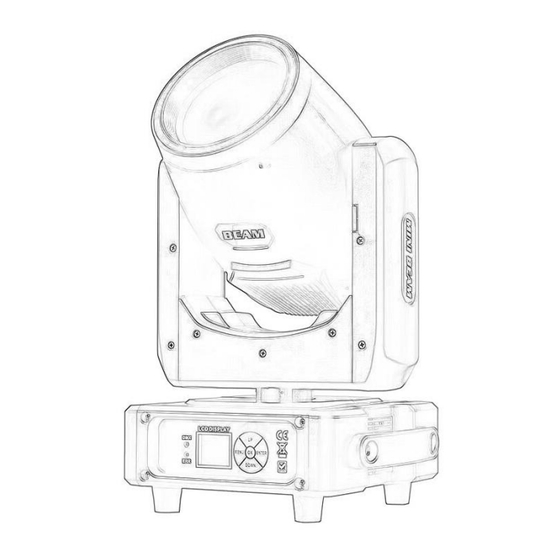

- Page 1 User manual 230 BEAM Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels ……………………………………………………………………………………7-9 Trouble Shooting…………………………………………………………………………………10 Fixture Cleaning………………………………………………………… ………………………10 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals. -
Page 5: Control Menu
3. 3.Control Menu Operation 1 .Operate light with touch or KEY The left area is TFT Displayer and touch, chick item or value with finger will to complete operation of set light setting(parameters) or view light state. The area on the right hand side is 4 KEY, As auxiliary input interface, if disable touch function,, the KEYr can been choose to set the parameter. - Page 6 4. Sub Menu（Parameter） Chick item of main menu, enter corresponding sub menu, shown in Figure 6, total 6 sub menu, includes class of parameter and status: ADDRESS：Set light DMX address. WORKMOD：Set light work mode, master or slave mode when in auto run mode. DISPLAY：...
-
Page 7: Dmx Channels
4.DMX Channels 16 DMX512 Channel Channel Name Data Introduce White White+Color1 10-14 Color1 15-19 Color1+Color2 20-24 Color2 25-29 Color2+Color3 30-34 Color3 35-39 Color3+Color4 40-44 Color4 45-49 Color4+Color5 50-54 Color5 55-59 Color5+Color6 60-64 Color6 65-69 Color6+Color7 70-74 Color7 75-79 Color7+Color8 Color 80-84 Color8 85-89... - Page 8 Close 4-103 Fadeout slow to fast 104-107 Open 108-207 Free Strobe slow to fast Strobe 208-212 Open 213-251 Pulse Strobe slow to fast 252-255 Open 0-255 Dimmer intensity from 0% to 100% Dimmer White Gobo1 10-14 Gobo2 15-19 Gobo3 20-24 Gobo4 25-29 Gobo5...
- Page 9 0-127 Close Prism Prism 128-255 Insert Prism 0-127 0~400 degree Forwards rainbow from fast to 128-187 slow Prism.Rot 188-195 Stop Backwards rainbow from slow to 196-255 fast 0-127 Colorful 128-255 Insert colorful 0-127 Frost 128-255 Insert frost Zoom 0-255 Zoom Large to small 0-255 Pan movement by 540 PAN fine...
-
Page 10: Trouble Shooting
5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
