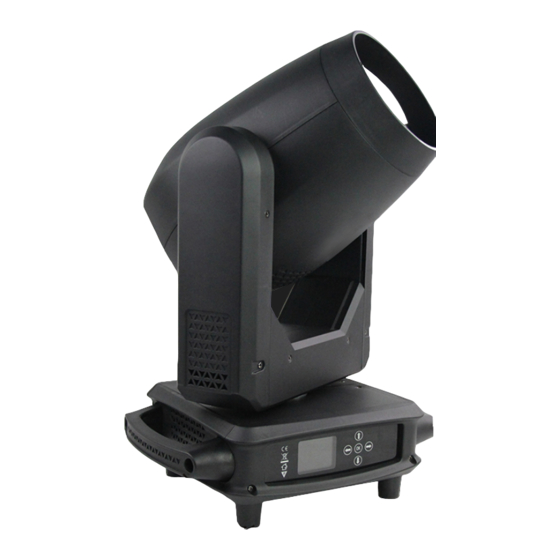

- Page 1 User manual 360 BEAM Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4-5 Control Menu ……………………………………………………………………………………5-7 DMX Channels ……………………………………………………………………………………8-10 Dimension …………………………………………………………………………………………11 LUX Date ……………………………………………………………………………………………11 Trouble Shooting…………………………………………………………………………………12 Fixture Cleaning………………………………………………………… ………………………12 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals. -
Page 5: Control Menu
XY axis magnetic coding positioning is more accurate Power Outlet: Power Connector Input/Output Signal input/output: three-pin XLR head socket Overheating self-energy protection bulbs, extending lamp life Lamp size: 338x256x512mm Net weight: 14KG 3.Control Menu 1 — Displays the current DMX address in large font 2 —... - Page 6 3. Reset operation: reset the motor Motor power off： Select "On", all motors are powered off; select "Off", all motors are powered on and reset. Using this menu, it is possible to plug and unplug the motor and power-on reset without turning off the main switch.
- Page 7 Ignore errors: Some error reports may not affect the final use effect, or for the general purpose of the product, you can choose to turn off some meaningless error reports Trim Recovery: After replacing the display board, use this menu to restore the trim data saved by the motor board to the display board.
-
Page 8: Dmx Channels
4.DMX Channels Model - CH18 Channel DMX Value Description 0-255 0-255 Pan fine 0-255 Tilt 0-255 Tilt fine Pan/Tilt speed Maximum speed in speed mode 1-255 speed from fast to slow in time mode 1-255 Time from 0.1s to 25.5s 0-255 dimmer strobe... - Page 9 86-89 color 11 90-93 Color 11+Color 12 94-98 color 12 99-102 Color 12+Color 13 103-106 color 13 107-110 Color 13+Color 14 111-115 color 14 116-119 Color 14+Color 15 120-123 color 15 124-127 Color 15+Color 1 128-190 Rainbow effect from fast to slow 191-192 rainbow effect stopped 193-255...
- Page 10 175-190 Pattern 16 shaking from slow to fast 191-201 Open 202-227 The gobo is scrolling forward, from fast to slow 228-229 stop scrolling 230-255 gobo scrolls in reverse, from slow to fast Atomization and colorful 0-19 null 20-137 atomization 138-255 colorful Prism1 0-127...
-
Page 11: Dimension
5.Dimension 6.LUX Date... -
Page 12: Trouble Shooting
7.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
