Summary of Contents for Uplus Lighting 200 LED RETRO

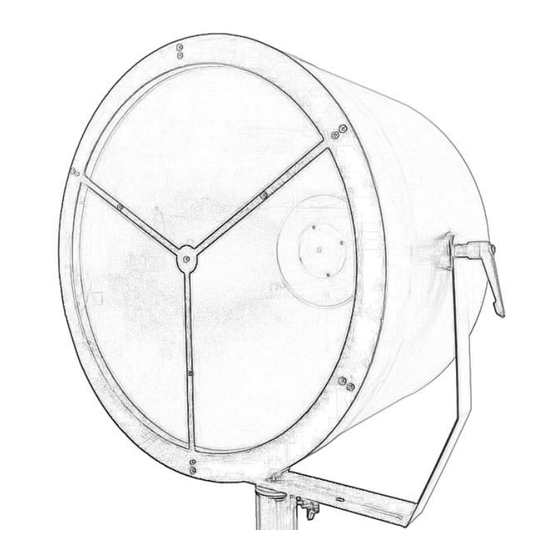

- Page 1 User manual 200 LED RETRO Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5 DMX Channels ……………………………………………………………………………………5-6 Trouble Shooting…………………………………………………………………………………6 Fixture Cleaning………………………………………………………… ………………………6 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 3 1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...
- Page 4 fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals.
- Page 5 3.Control Menu Menu Operation On the base of the control panel offers a number of features, such as setting DMX fixture address, switch the lamp, run the test program, the mode selection. Show Value Instruction d001 001- 512 DMX512 -37Channels A001 001- 512 DMX512 -12Channels...
- Page 6 CH 35 0－255 Red 12 From dark to bright CH 36 0－255 Green 12 From dark to bright CH 37 0－255 Blue 12 From dark to bright 5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.
