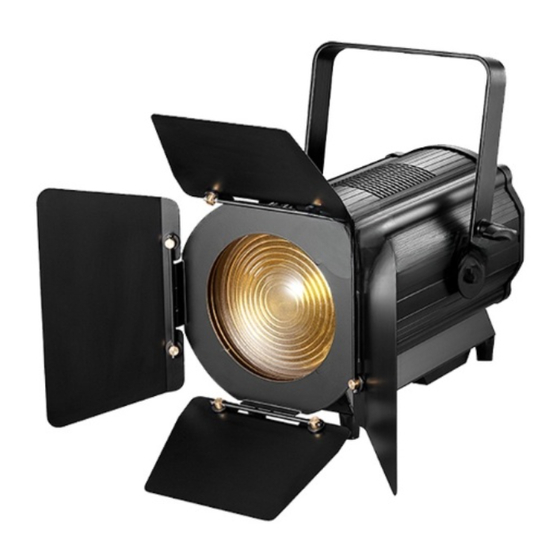

- Page 1 User manual (Manual zoom 15-50°) 200 MZ-SPOT PR Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3 2. Technical Specifications………………………………………………………………………4 3. Descriptions………………………………………………………………………………………5 4. Unpacking…………………………………………………………………………………………5 5. Control Menu ……………………………………………………………………………………6-7 6. DMX Channels ……………………………………………………………………………………7 7. Dimension …………………………………………………………………………………………8 8. LUX Date ……………………………………………………………………………………………8 9. Trouble Shooting…………………………………………………………………………………9 10. Fixture Cleaning………………………………………………………… ………………………9 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications
2.Technical Specifications Light Source: LED POWER: 200W Cool White 5600K or Warm White 3200K (200W) COB LED Led Lamp: Imported LED Color Rendering Index(CRI): Ra≥90 LED Life Time: over 50,000 hours Power supply: Voltage: AC100-240V Max.power: 200W Optics: Zooming Scale: 15-50° Manual zoom Soft and even field of light Features:... -
Page 5: Descriptions
Meanwhile, please keep this manual well for future needs. The 200 MZ-SPOT PR is made of a new type of high temperature strength of cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE&RoHS standards, complying with international standard DMX512 protocol. -
Page 6: Control Menu
5.Control Menu Menu： The first list is the main menu (press MENU to exchange), the second list is submenu (press ENTER to get in or exchange) If the menu include the decimal point, that’s the data, and it can be set by the Key of Up/Down. -
Page 7: Dmx Channels
Set the color ENTER save data change to the vice menu St: strobe UP/DOW change value strobe strobe and its ENTER save and exchange speed two vice menu tEMp: ENTER enter the vice menu temperature temperature control current ENTER change to vice menu temperature t: top UP/DOW... -
Page 8: Dimension
7.Dimension Size of the fixture: 379 (D)*211(W)*378(H)mm 8.LUX Date... -
Page 9: Trouble Shooting
9.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
