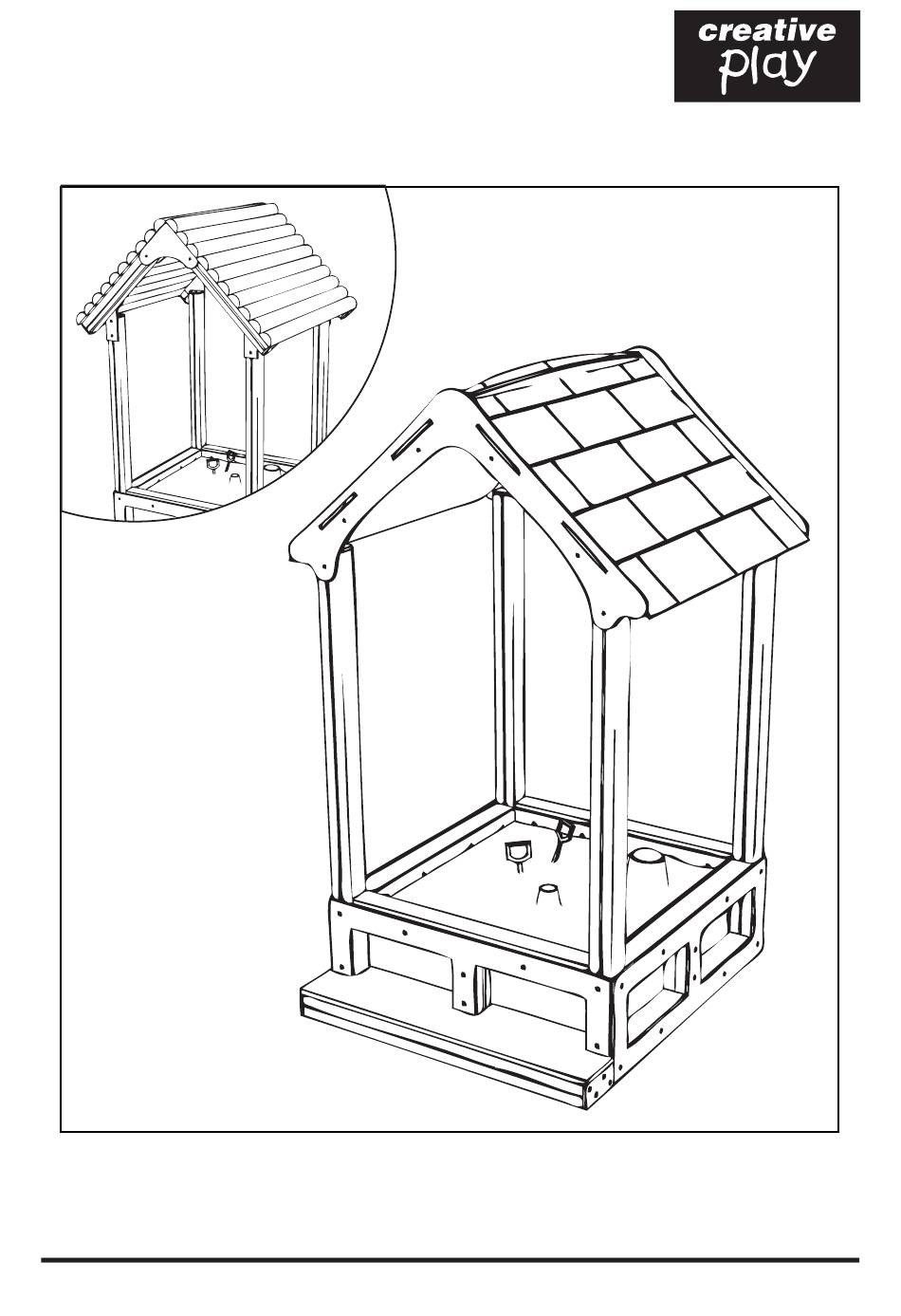

- Page 1 SANDHUT MINOR Installation Instructions REF: SB102 - SANDHUT MINOR pg 1 of 13...
-
Page 2: Parts Required
PARTS required PARTS required (PRE-ASSEMBLED SIDE A) (PRE-ASSEMBLED SIDE B) (PRE-ASSEMBLED SIDE C) (PLAYTEC PANEL - SIDE C) (HEX SLATS) (HEX STEP) REF: SB102 - SANDHUT MINOR pg 2 of 13... - Page 3 PARTS required PARTS required (STEP PLAYTEC CAPS) (STEP TIMBERS - SB102b) (PRE-ASSEMBLED FLOOR) (HEX LID) (FM180 ‘ Brass screws’) (FM80 ‘ Brass screws’) REF: SB102 - SANDHUT MINOR pg 3 of 13...
- Page 4 (N1 - TORKTAINER) (FRONT ROOF) (BACK ROOF) PARTS required (RUSTIC ROOF ) (HALF ROUND TIMBERS) (FM80 ‘ Brass screws’) x2 LEFT (TOP RUSTIC ROOF) (SIDES RUSTIC ROOF) x2 RIGHT (SIDES RUSTIC ROOF) REF: SB102 - SANDHUT MINOR pg 4 of 13...
-
Page 5: Tools Required
TIMBERS required SB102a SB102a SB102a SB102a TOOLS required REF: SB102 - SANDHUT MINOR pg 5 of 13... -
Page 6: Foundation Details
Foundation Details FINISHED GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE REF: SB102 - SANDHUT MINOR pg 6 of 13... - Page 7 Using FM80 BRASS WOOD SCREWS SIDE B SIDE A SIDE A ENSURE: EACH SIDE IS FLUSH WITH FLOOR - NO GAPS ENSURE THAT THEY ARE ALL LEVEL WITH EACH OTHER ALSO REF: SB102 - SANDHUT MINOR pg 7 of 13...
- Page 8 Attach PLAYTEC PANEL to PRE-ASSEMBLED SIDE C and Attach TO UPRIGHTS - as step 2 Using FM80 BRASS WOOD SCREWS SIDE C INSERT PRE-ASSEMBLED FLOOR NO NEED TO FIX IN PLACE REF: SB102 - SANDHUT MINOR pg 8 of 13...
- Page 9 Using FM180 BRASS WOOD SCREWS SCREW ON 2ND STEP TIMBER TO EXISTING and CAP EACH END Using FM180 BRASS WOOD SCREWS for the step and FM80 BRASS WOOD SCREWS for the caps REF: SB102 - SANDHUT MINOR pg 9 of 13...
- Page 10 Attach HEX SLATS ON TOP OF SIDE B and C Using FM80 BRASS WOOD SCREWS TIP! LAY THE HEX LID ON TOP BEFORE SCREWING SLATS INTO PLACE TO ENSURE THEY ARE SNUG WITH THE LID, HOLDING IT PLACE WHEN ON. REF: SB102 - SANDHUT MINOR pg 10 of 13...
- Page 11 Installation Instructions Attach the roof Parts (NORMAL ROOF) Using ‘TORKTAINERS’ and ‘Brass Screws’ REF: SB102 - SANDHUT MINOR pg 11 of 13...
- Page 12 Installation Instructions Attach the roof Parts (RUSTIC ROOF) Using ‘Brass Screws’ QTYx2 Both Sides REF: SB102 - SANDHUT MINOR pg 12 of 13...
-
Page 13: Additional Dimensions
Additional Dimensions 1.37m 1.33m REF: SB102 - SANDHUT MINOR pg 13 of 13...
