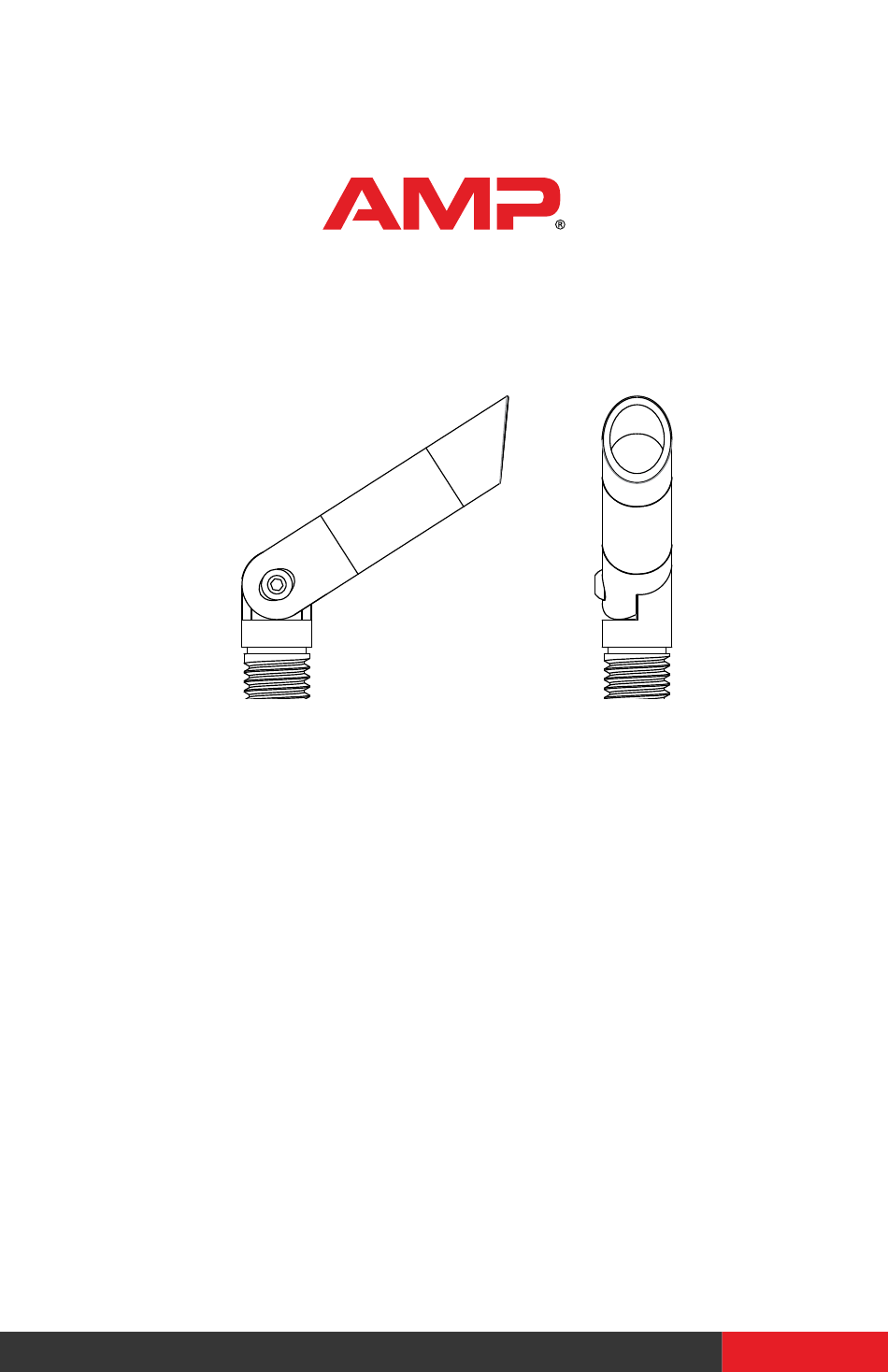

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® Nano LED Spotlight ® ITEM: AAL-1049 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Nano LED Spotlight - AAL-1049 ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body B. (1) Allen Wrench C. (1) Stake PRODUCT DIMENSIONS 0.5” 2.39” 0.45” INSTALL FIXTURE BODY TO STAKE Fixture Body Pass the supply wire of the fixture body through the wireway slot on the stake. Thread the fixture body onto the stake.
- Page 4 INSTALLATION & MAINTENANCE GUIDE Nano LED Spotlight - AAL-1049 ® INSTALL STAKE INTO SOIL Insert the stake into the soil Fixture Body until flange of stake is flush to the ground. Supply Wire Stake Ground Soil WIRE CONNECTIONS Strip both the leads from the luminaire pigtail.
- Page 5 ADJUST DIRECTIONS By using the Allen wrench, ROTATE Fixture Body loosen the screw at the joint and adjust the luminaire to Screw the desired direction. Once the desired direction is achieved, tighten the screw. Allen Wrench 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 6 INSTALLATION & MAINTENANCE GUIDE Nano LED Spotlight - AAL-1049 ® 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 7 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
