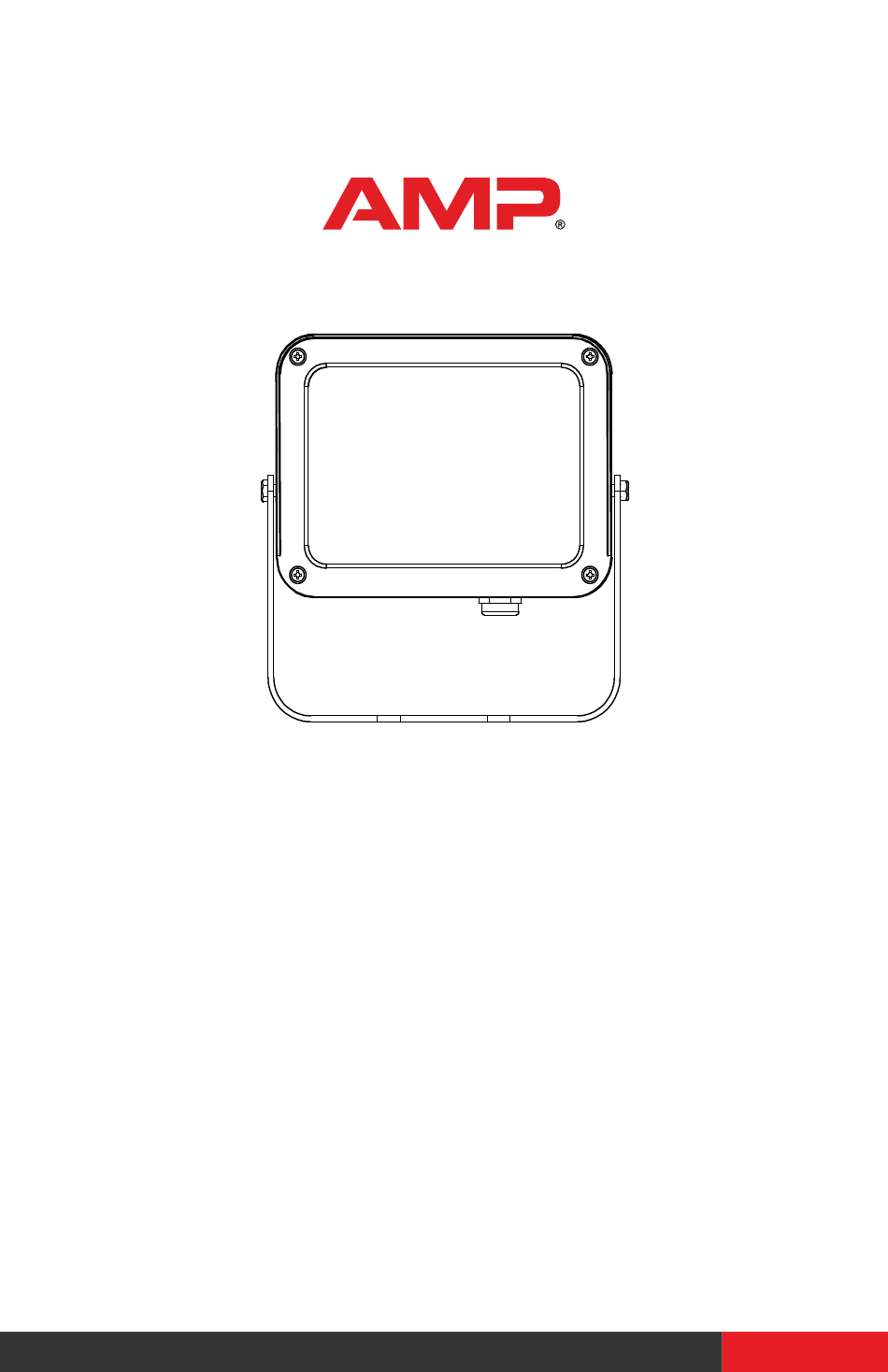

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® 27W RGBCW LED Flood Light with Yoke Mount (Dimmable) ® ITEM: AFL-4033 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE 27W RGBCW LED Flood Light - AFL-4033 ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
-
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Fixture Body PARTS REQUIRED A. (1) Mounting Accessory B. (1) Coupler C. (1) Remote D. (1) Hex Nut E. (2) AAA Batteries PRODUCT DIMENSIONS 7.12” 2.22” 5.77” 5.35” 4” 7.87” 7.48” 813.978.3900 • customersupport@amplighting.com • www.amplighting.com... - Page 4 INSTALLATION & MAINTENANCE GUIDE 27W RGBCW LED Flood Light - AFL-4033 ® INSTALL STAKE Determine the desired Bored location for mounting the stake. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake,...
-
Page 5: Wire Connections
WIRE CONNECTIONS Fixture Body Wire Connector Fixture Wire Main Supply Wire Strip both leads from the fixture wires. Using two UL listed wire connectors (sold separately), connect the leads from the fixture wires to the main supply cable leads. ADJUST FIXTURE BODY DIRECTION ROTATE Adjust the fixture body to the desired orientation and... -
Page 6: Remote Controller Instructions
INSTALLATION & MAINTENANCE GUIDE 27W RGBCW LED Flood Light - AFL-4033 ® REMOTE CONTROLLER INSTRUCTIONS Button Function Description ALL ON ALL OFF Name Turns on all lights which are controlled by this remote that ALL ON are within range. Turns off all lights which are... -
Page 7: Install Aaa Batteries
INSTALL AAA BATTERIES Open the battery cover, install two AAA 1.5V batteries into the battery compartment. Pay attention to the “+”/“-” Back of Remote polarities of the battery when Controller installing. Always reinstall the battery cover after installing AAA 1.5V batteries. Battery Compartment AAA Battery... - Page 8 INSTALLATION & MAINTENANCE GUIDE 27W RGBCW LED Flood Light - AFL-4033 ® PAIR CODES (CONTINUED) 1. Using the same process you can pair additional fixtures to the same or different zones. Note: 1. Please ensure light(s) are within range of the remote controller.
-
Page 9: Adjust Brightness
ADJUST BRIGHTNESS 1. Select the desired lights by ALL OFF ALL ON pressing the zone to which they have been assigned. 2. Press the brightness increase button to increase the light Brightness Brightness brightness, or press the Decrease Increase brightness decrease button to decrease the light brightness. -
Page 10: Adjust Color
INSTALLATION & MAINTENANCE GUIDE 27W RGBCW LED Flood Light - AFL-4033 ® QUICK COLOR TEMPERATURE ADJUSTMENT The preset color temperatures of the ALL OFF ALL ON CCT button are 2200K, 27000K, 3000K and 4000K. 1. Select the lights by pressing the zone they are in. - Page 11 CONTROL BY GROUP All ON 1. To control lights by group, ALL OFF ALL ON Select the lights by pressing the zone they are in. And then press respective function buttons to adjust the lights. ZONE (Group) ZONE UNPAIR LIGHTS If you need to re-pair the light(s) that All ON ALL OFF ALL ON...
- Page 12 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
