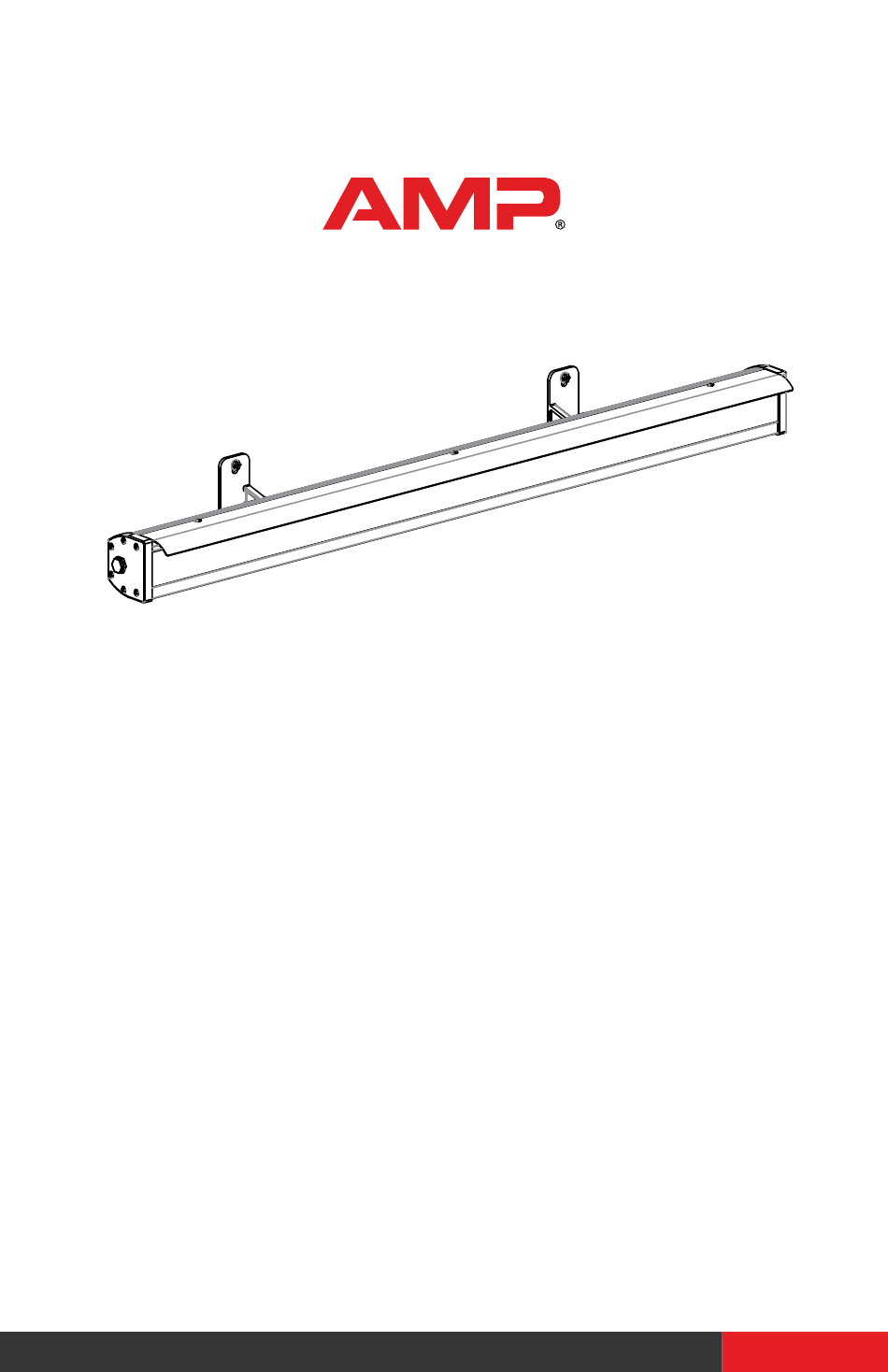

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® RGBCW LED Wall Wash Light Bar ® ITEM: AFL-4026-A-XX 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE RGBCW LED Wall Wash Light Bar- AFL-4026-A-XX ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
-
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Fixture Body F. (1) Allen Wrench B. (2) Thumb Screw G. (4) Wall Anchor C. (2) Bracket H. (4) Screw D. (1) Glare Guard I. (4) Dustproof Plug E. (3) Allen Screw PRODUCT DIMENSIONS 2.9” 4.9” 39.37”... -
Page 4: Install Brackets
INSTALLATION & MAINTENANCE GUIDE RGBCW LED Wall Wash Light Bar- AFL-4026-A-XX ® INSTALL GLARE GUARD Allen Wrench Attach the glare guard onto the fixture body and secure with the Allen screw. Allen Screw Glare Guard Fixture Body INSTALL BRACKETS Bracket... - Page 5 TIGHTEN SLIDING BASES Screwdriver Screw Sliding Base Sliding Base Fixture Body Adjust the sliding bases to the desired spots. Using the screwdriver, tighten the screws on the sliding bases. MARK INSTALLATION POINTS MOUNTING Bracket MARK SURFACE Fixture Body Attach the brackets onto the desired mounting surface. Mark points on the mounting surface through the holes on the brackets.
-
Page 6: Mounting Surface
INSTALLATION & MAINTENANCE GUIDE RGBCW LED Wall Wash Light Bar- AFL-4026-A-XX ® INSTALL FIXTURE BODY MOUNTING Wall Anchor SURFACE 1/4” Hole Bracket Screw Fixture Body Drill 1/4” holes using the marks on the mounting surface. Insert the wall anchors then attach the brackets onto the wall anchors and secure with a screw. -
Page 7: Remote Controller Instructions
REMOTE CONTROLLER INSTRUCTIONS Button Function Description ALL ON ALL OFF Name Turns on all lights which are controlled by this remote that ALL ON are within range. Turns off all lights which are ALL OFF controlled by this remote that are within range. -
Page 8: Install Aaa Batteries
INSTALLATION & MAINTENANCE GUIDE RGBCW LED Wall Wash Light Bar- AFL-4026-A-XX ® INSTALL AAA BATTERIES Open the battery cover, install two AAA 1.5V batteries into the battery compartment. Pay Back of Remote attention to the “+”/“-” polarities Controller of the battery when installing. -
Page 9: Adjust Brightness
PAIR CODES 1. Using the same process you can pair additional fixtures to the same or different zones. Note: 1. Please ensure light(s) are within range of the remote controller. 2. If zone pairing fails, power the light(s) OFF and ON, then repeat the above steps. - Page 10 INSTALLATION & MAINTENANCE GUIDE RGBCW LED Wall Wash Light Bar- AFL-4026-A-XX ® PRESET COLOR ADJUSTMENT 1. Select the lights by pressing ALL ON ALL OFF the zone they are in. 2. Press the preset color button to adjust the lights to a specific color.
-
Page 11: Adjust Color
PRESET BRIGHTNESS ADJUSTMENT The preset brightness buttons are ALL ON ALL OFF 25%, 50%, 75% and 100%. 1. Select the lights by pressing the zone they are in. 2. Press the preset brightness button to adjust the lights GREEN BLUE LAST brightness: 25%-50%-75%- 2200K... - Page 12 INSTALLATION & MAINTENANCE GUIDE RGBCW LED Wall Wash Light Bar- AFL-4026-A-XX ® CONTROL BY GROUP ALL ON ALL OFF 1. To control lights by group, Select the lights by pressing the zone they are in. And then press respective function...
- Page 13 UNPAIR LIGHTS (CONTINUED) 1. If you need re-pair the light(s) in any zone, power off and power on the light(s), and repeat the processes of step 2 “PAIR LIGHTS TO REMOTE CONTROL”. Note: 1. When the lights are ready for unpairing, you must only press zone button 1 to 6 in the zone area or “ON”...
- Page 14 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
