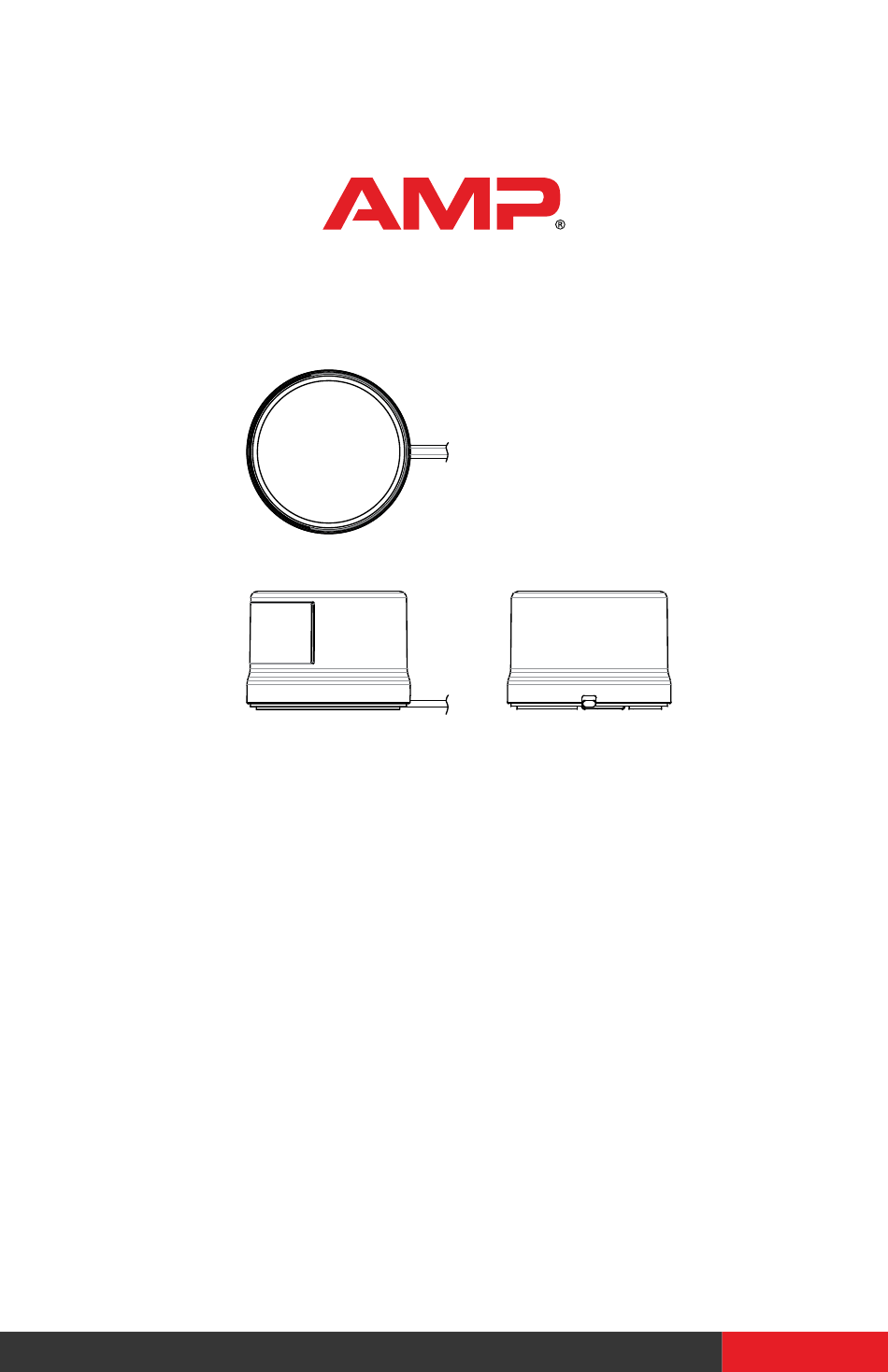

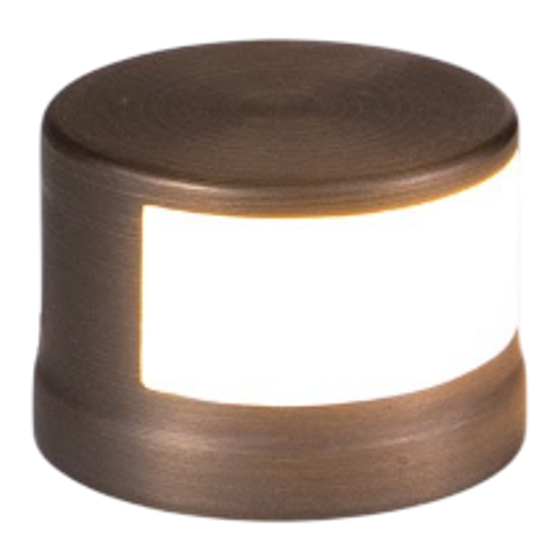

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® Stemless Brass Bronze Directional Path Light ® ITEM: APL-3037 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Stemless Brass Bronze Directional Path Light - APL-3037 ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body D. (3) Screws B. (1) Mounting Bracket E. (1) Coupling C. (3) Anchors Parts Required (Sold Separately) A. Mounting Accessory B. (1) G4 Bulb PRODUCT DIMENSIONS 2.58” 1.96” 2.71” REMOVE SHADE Remove the shade from the fixture body by removing the Shade screw on the bottom.
- Page 4 Hand tighten until snug. Fixture Body Screw Two installation methods are available for this product (Mounting Option A & B). Refer to respective installation instructions and then continue to Step 4 for wire connections. 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 5 MOUNTING OPTION A: SURFACE MOUNT INSTALL MOUNTING BRACKET 1. Attach the mounting Hole Mark bracket to your desired mounting surface. Use a pencil, mark 3 points on the mounting surface Anchor from 3 holes on the mounting bracket. Mounting 2. Set the mounting bracket WALL aside and drill 1/4”...
- Page 6 INSTALLATION & MAINTENANCE GUIDE Stemless Brass Bronze Directional Path Light - APL-3037 ® MOUNTING OPTION B: STAKE MOUNT INSTALL STAKE TO FIXTURE Pass supply cables through the coupling and the stake. Fixture Thread the coupling and the stake to the fixture body and hand tighten until snug.
- Page 7 WIRE CONNECTIONS Wire Connectors Supply Cable Main Supply Cable Pigtail Strip both leads from the luminaire pigtail. Using two UL listed wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. INSTALL/REPLACE LAMP Remove the fixture body from the mounting bracket or the stake first.
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
