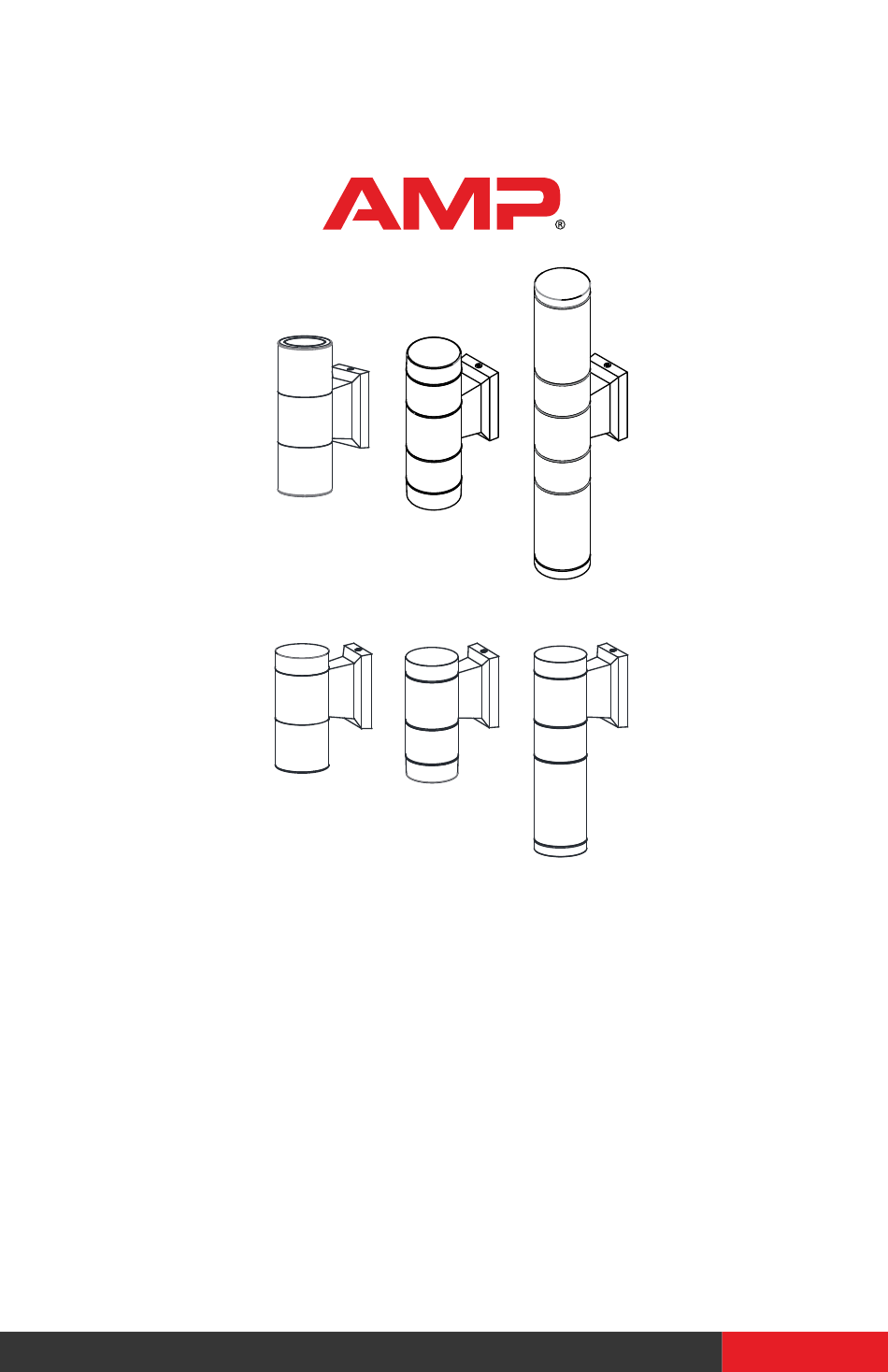

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® Customizable Cast Brass Up/Down Sconce ® ITEM: AHS-7003 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Customizable Up/Down Sconce - AHS-7003 ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
-
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Mounting Bracket D. (2) Lock Screws B. (2) Mounting Screws E. (1) Fixture Body C. (2) Wall Anchors PARTS REQUIRED A. (1 or 2) Optional Lens 1 D. (1) Optional cover 4 (Part Number: VAC-GG17-BZZ) (Part Number: VAC-GG16- BZZ) B. -
Page 4: Product Dimensions
INSTALLATION & MAINTENANCE GUIDE Customizable Up/Down Sconce - AHS-7003 ® PRODUCT DIMENSIONS Fixture Options Option 2 Option 1 Option 3 4.23” 2.43” 4.23” 4.23” 2.43” 2.43” 7.68” 3.5” 3.5” 3.5” 15” 2” 2” 2” 813.978.3900 • customersupport@amplighting.com • www.amplighting.com... - Page 5 PRODUCT DIMENSIONS Fixture Options Option 4 Option 5 Option 6 4.23” 4.23” 4.23” 2.43” 2.43” 2.43” 3.5” 3.5” 3.5” 5.43” 5.83” 9.48” 2” 2” 2” INSTALL MR16 LAMPS Option 1 Option 2 MR16 Lamp Don’t Install Socket MR16 Lamp Fixture Body Fixture Body MR16 Lamp MR16 Lamp...
- Page 6 INSTALLATION & MAINTENANCE GUIDE Customizable Up/Down Sconce - AHS-7003 ® INSTALL LENS OR COVER Lens Cover Fixture Body Fixture Body Lens Lens Thread the lens or cover onto the fixture body and hand tighten. Part Number: Part Number: Part Number:...
-
Page 7: Install Mounting Bracket
REMOVE MOUNTING BRACKET Remove the mounting Mounting Screw screws from the fixture body then remove the mounting bracket. Mounting Bracket Mounting Screw Fixture Body INSTALL MOUNTING BRACKET Main Low Voltage 1. Place the mounting Supply Cable bracket at the desired WALL location and mark the two Mounting Bracket... -
Page 8: Wire Connections
WIRE CONNECTIONS Using two UL Listed wire connectors (sold separately) connect the supply wires from the fixture body to the main low voltage supply cable leads. Main Low Voltage Supply Cable Wire Connector Fixture Wire INSTALL FIXTURE BODY Attach the backplate of Mounting Screw the fixture body over the mounting bracket.
