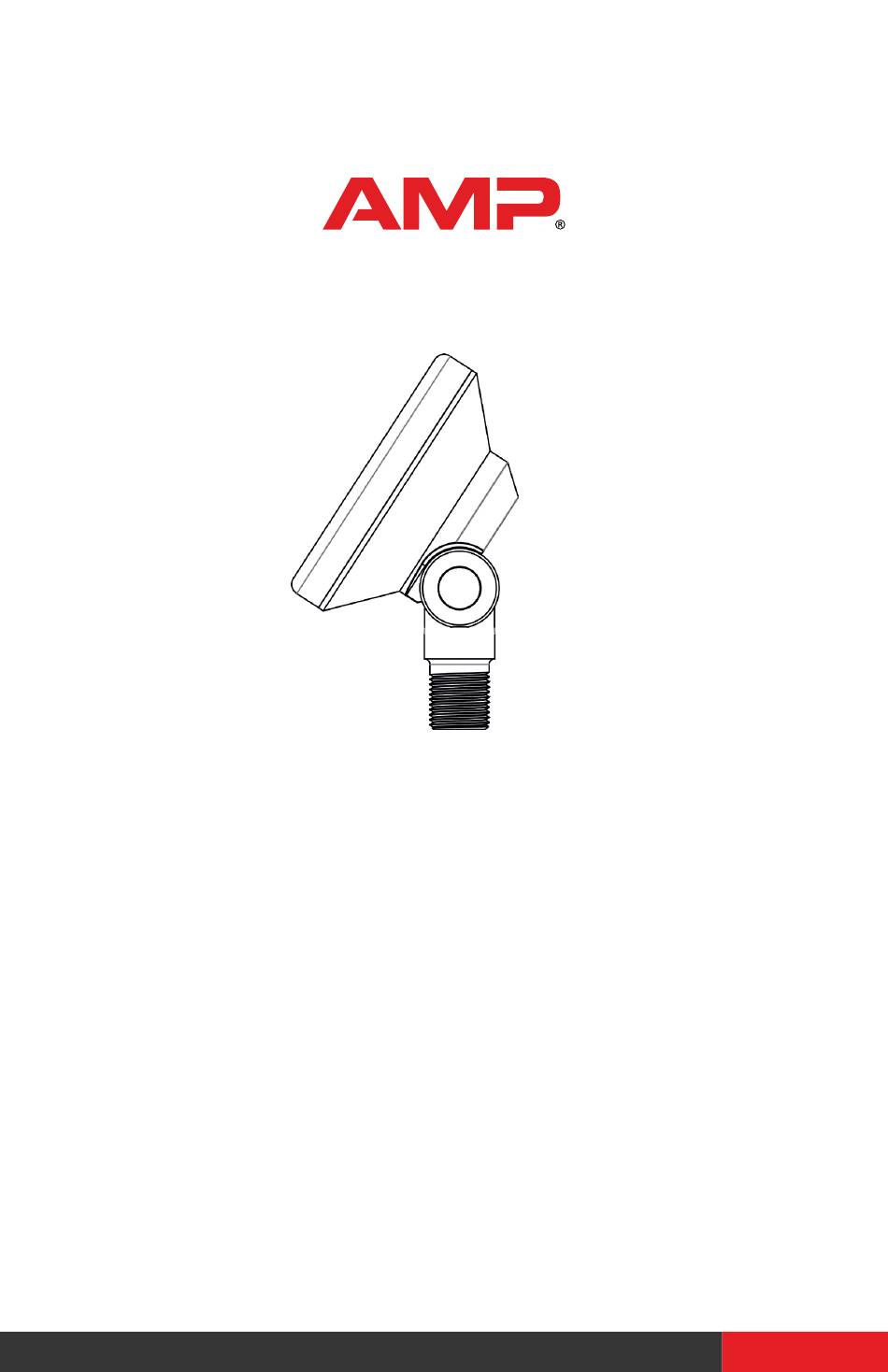

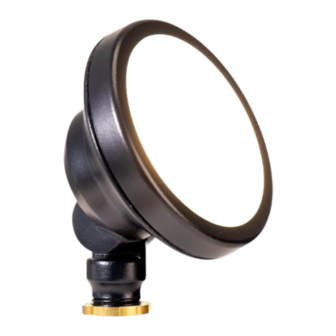

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® ® EquaPro Brass Black Flood Light ITEM: AAL-1014-4-B-BK 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE - EquaPro Brass Black Flood Light - AAL-1014-4-B-BK ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body PRODUCT DIMENSIONS 4” 4.25” INSTALL STAKE Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 4 INSTALLATION & MAINTENANCE GUIDE - EquaPro Brass Black Flood Light - AAL-1014-4-B-BK ® REMOVE LENS Loosen the lens and remove it Lens from the luminaire. Fixture INSTALL LAMP Insert the lamp with the correct Socket wattage and type marked on the luminaire label.
- Page 5 INSTALL LENS Thread the lens back onto the Lens luminaire and hand tighten until snug. Fixture INSTALL FIXTURE TO STAKE Clear away an area in the ground Fixture at the wireway slot on top of the Wireway Slot stake. Align the wireway slot on the base of the stake.
- Page 6 INSTALLATION & MAINTENANCE GUIDE - EquaPro Brass Black Flood Light - AAL-1014-4-B-BK ® INSTALL/REPLACE LAMP Remove the lens to expose the Bi-Pin and replace it with the correct wattage and type marked on the fixture label. Then, reinstall the lens.
- Page 7 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
