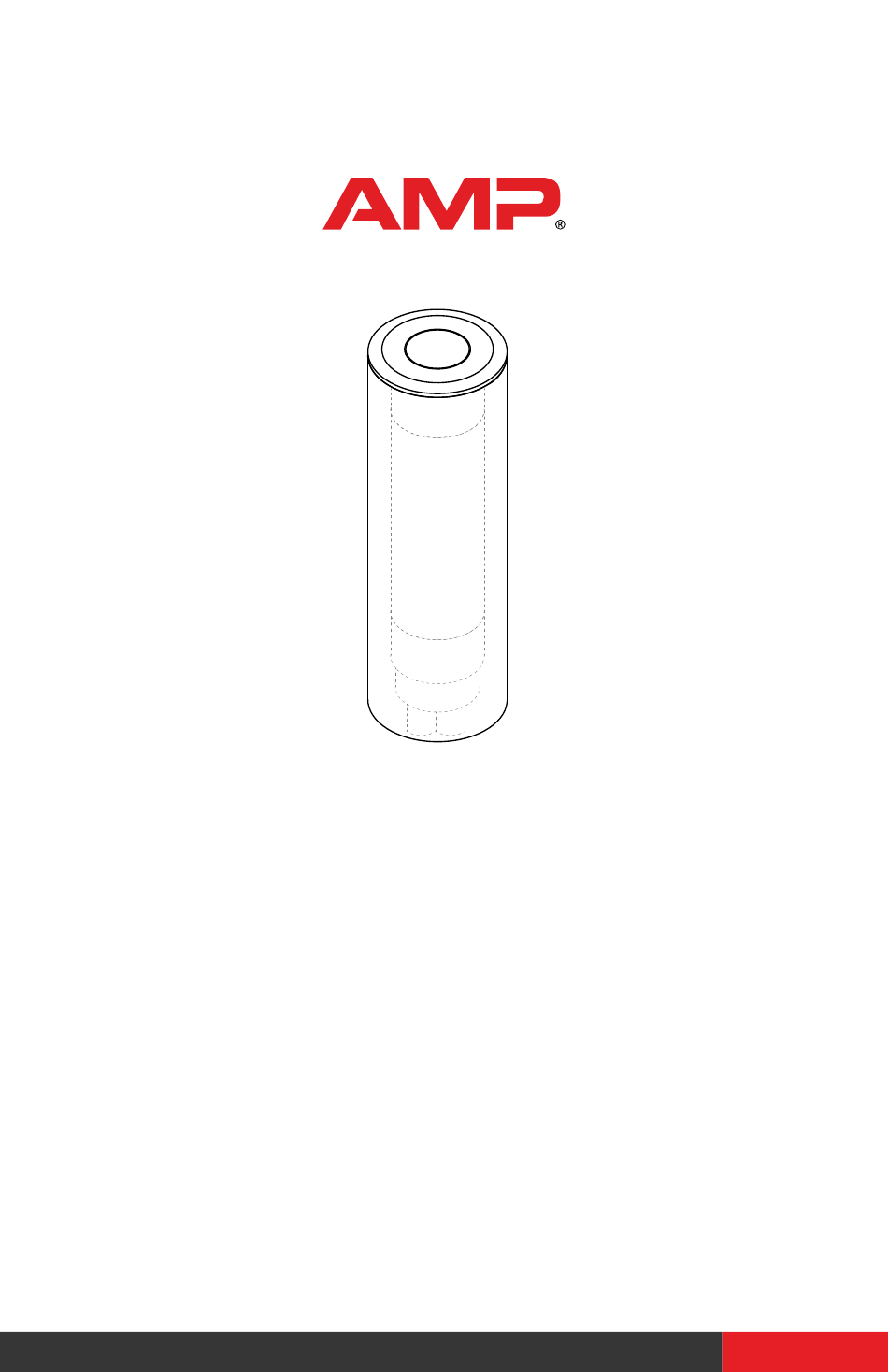

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® Nano LED Well Light ® ITEM: AWL-5013 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Nano LED Well Light ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body B. (1) PVC Tube PRODUCT DIMENSIONS 0.75” 2.11” 2.17” DIG HOLE Dig a hole in the ground with PVC Tube approximately 3” of space Ground surrounding the PVC tube for pea gravel or sand. 3”...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Nano LED Well Light ® WIRE CONNECTION Pass the fixture wire through the PVC tube. Place the fixture Fixture Body body into the PVC tube. Strip both leads from the PVC Tube fixture supply cable and the main supply cable.
