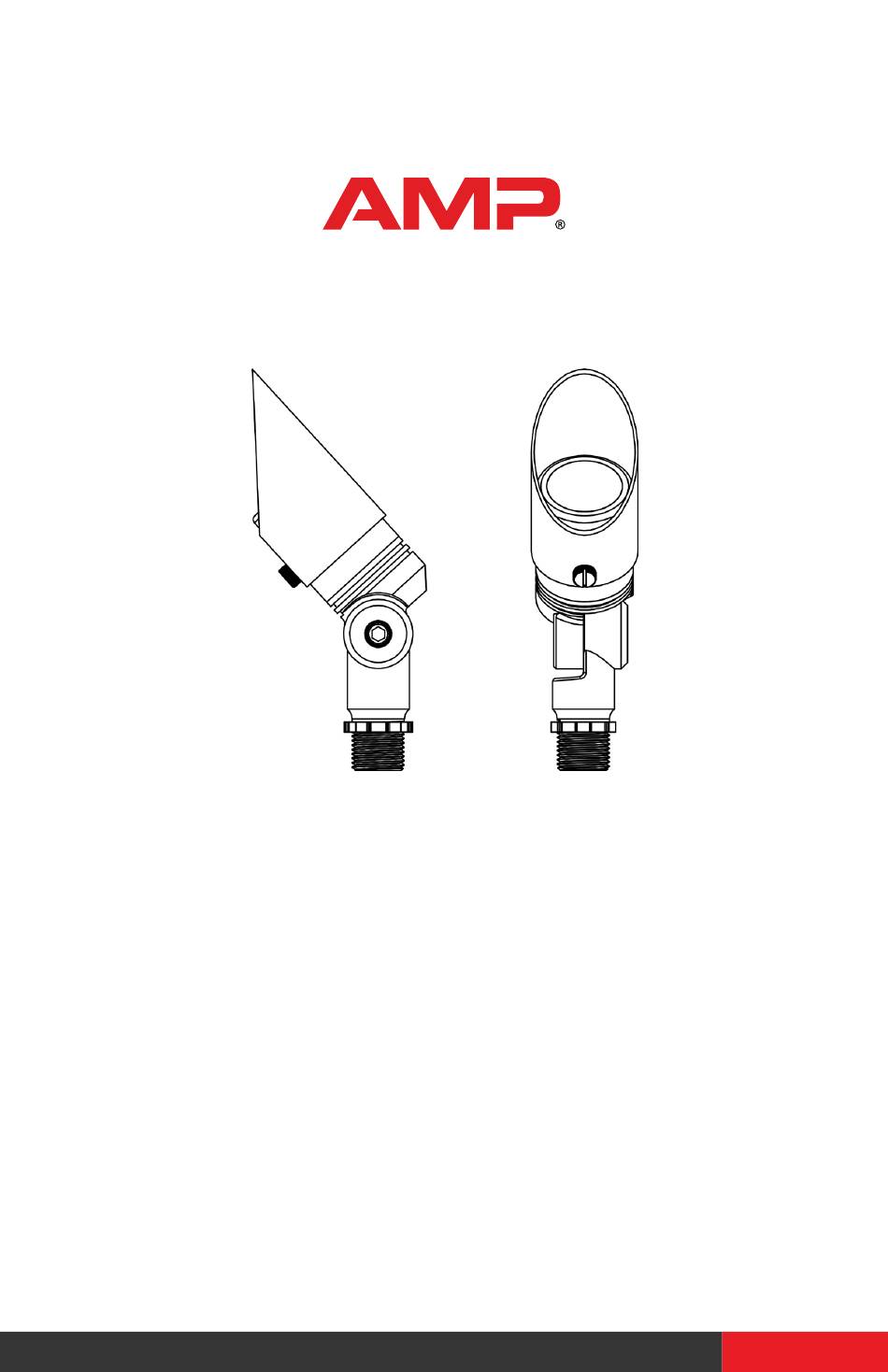

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® AMP® Mini PinnaclePro Black Spotlight ITEM: AAL-1018-4-B-BK 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Mini PinnaclePro Black Spotlight -AAL-1018-4-B-BK ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture B. (1) Stake PRODUCT DIMENSIONS 1.75” 2.75” 4.5” 2.75” REMOVE GLARE GUARD AND SHIELD FROM FIXTURE Loosen the set screw and remove the glare guard from the shield. Glare Guard Loosen the shield and remove it from the fixture.
- Page 4 INSTALLATION & MAINTENANCE GUIDE Mini PinnaclePro Black Spotlight -AAL-1018-4-B-BK ® INSTALL MR11 LAMP Insert the lamp with the correct Socket wattage and type marked on the fixture label. MR11 Lamp CAUTION: Do not exceed maximum wattage marked on luminaire label.
- Page 5 INSTALL STAKE Determine the desired location for Board mounting the fixture. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering. Stake NOTE: If the ground is hard and the stake is difficult to install, make a...
- Page 6 INSTALLATION & MAINTENANCE GUIDE Mini PinnaclePro Black Spotlight -AAL-1018-4-B-BK ® WIRE CONNECTIONS Pigtail Wire Connectors Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.
- Page 7 INSTALL/REPLACE LAMP Remove the glare guard and the lens to expose the MR11 lamp and replace it with the correct wattage and type marked on the fixture label. Then, reinstall the lens and the glare guard. IMPORTANT: MR11 lamp must be protected from moisture and dust at all times.
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
